CO-NELEMixing & Granulation
Engineered for extreme material abrasiveness, micro-homogeneity, and rapid discharge cycles.
Understanding the physics of high-temperature monolithics, shaped refractories, and advanced ceramic matrix composites.
Refractory castables contain fine ultra-powders (microsilica, reactive alumina) mixed with heavy, abrasive aggregates like fused corundum, bauxite, and silicon carbide. Standard gravimetric or horizontal ribbon mixers fail to deagglomerate fine binder matrix, causing micro-voids and premature thermal shock failure in furnace linings.
Processing synthetic mullite or carbon-bonded refractory brick batches inflicts severe wear on mixing pans. A modern Refractory Mixer Machine must integrate specialized tungsten-carbide hardfacing, high-chrome alloy tiles (HRB > 65), and modular bolt-on wear liners to guarantee 100,000+ batch lifetimes without alloy contamination.
Modern low-cement castables (LCC) and ultra-low cement castables (ULCC) require water additions as low as 3.5% to 5.0% by weight. Standard mixers lead to balling and incomplete hydration. Forced planetary counter-current mixing disperses water molecules instantaneously across dense raw mixes.
Why vertical-shaft planetary motion eliminates dead zones and slashes mixing cycle times by up to 45%.
The mixing blades rotate on their own axes while simultaneously revolving around the central axis of the mixing pan. This dual-rotation vector path ensures that every square millimeter of the mixing pan bottom and sidewalls is swept within 6 seconds. The counter-current shearing force breaks up micro-agglomerates without damaging brittle pre-formed ceramic fibers or steel needle reinforcements.
Unlike standard commercial gearboxes adapted for light concrete, CO-NELE refractory mixers feature custom-engineered planetary reducers designed for high torque shock loads. Operating with high-viscosity refractory slurries or dense resin-bonded compositions requires specialized gear geometry, synthetic oil bath cooling, and reinforced output shafts.
| Parameters & Features | Vertical Planetary Refractory Mixer | Inclined Intensive Mixer (CR Series) | Standard Twin-Shaft Mixer |
|---|---|---|---|
| Primary Application | Unshaped castables, bricks, dense monolithics | Fine powder granulating, ceramic pellets, R&D | Commercial concrete, mass ready-mix batching |
| Mixing Principle | Planetary counter-current forced mixing | High-speed rotor with inclined rotating pan | Horizontal twin-shaft overlapping shear |
| Mixing Homogeneity (CV) | ≤ 2.5% (Ultra-high uniformity) | ≤ 1.5% (Micro-granule precision) | ≤ 5.0% (Standard industrial grade) |
| Moisture Capability | Ultra-low water (3.5% - 8%) | Dry powder to wet slurry & granules | Standard concrete slumps (> 8%) |
| Wear Resistance Setup | Bolt-on high-chrome tiles / Rubber liners | Ceramic coating / Hardfaced rotor tips | Standard cast alloy liner plates |
| Discharge Efficiency | 100% pneumatic/hydraulic bottom gate | Bottom central discharge port | Bomb-bay tilting or rotary door |
Tailored machinery configurations deployed across key thermal processing, steelmaking, and material manufacturing sectors.
Blast furnace trough castables, torpedo ladle linings, tundish working layers, and tap-hole clay requires exact carbon dispersion and zero agglomeration. CO-NELE equipment delivers consistent batching for high-alumina and SiC mixtures.
Preheater tower castables, burner pipe coatings, and glass furnace regenerator checker bricks demand exceptional high-temperature thermal durability. Our refractory mixers blend zircon oxide, magnesite, and synthetic spinel evenly.

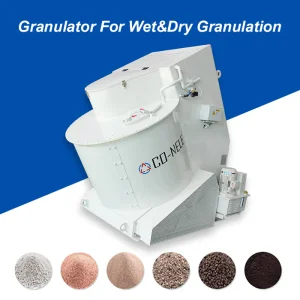

Processing electronic ceramics, alumina substrates, and ceramic catalyst supports using intensive mixer granulators (CR Series). Converts micro-powders into spherical granules (0.2–2.0mm) with 90%+ sphericity for automatic pressing machines.

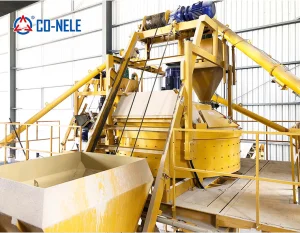

For burner blocks, roof rings, and lance tubes. Planetary counter-current mixers ensure uniform steel fiber distribution throughout dense matrix structures, eliminating micro-cracking and spalling under thermal cycling.
Providing seamless regulatory compliance, local power adaptations, and turnkey engineering support worldwide.
All exported machinery complies with European Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, and ISO9001 quality management benchmarks. Complete electrical panels use Schneider and Siemens components with UL/CSA options for North America.
For applications incorporating organic binders, resin-bonded mixes, or pitch-based additives subject to combustible volatile dust, CO-NELE supplies explosion-proof motors, anti-static belts, pressure-relief venting, and ATEX-certified sensors.
Seamlessly accommodating global electricity grids: 220V, 380V, 415V, 440V, 480V, 600V at 50Hz or 60Hz. Integrated Siemens PLC controls allow real-time Ethernet telemetry, automated recipe management, and remote troubleshooting assistance.
Bridging material science with intelligent automation for zero-defect refractory batch production.
Integrating microwave moisture probes directly into the mixing pan floor. The control algorithm automatically modulates water/liquid binder dosing pumps in real time, guaranteeing consistent batch slump without relying on manual operator intervention.
IoT vibration and acoustic sensors fitted on planetary gearboxes and main bearings detect subtle mechanical wear signatures months before potential failure, minimizing unplanned downtime in critical production cycles.
Variable Frequency Drives (VFD) optimized for torque demand curves reduce energy consumption per batch by up to 18%. Kinetic energy recovery systems feed brake power back into the plant grid during rapid deceleration.
Direct engineering answers to procurement, maintenance, and process design inquiries.
Twin-shaft mixers excel at high-volume concrete ready-mix with standard moisture levels (>8%). However, refractory castables contain dense micro-powders and ultra-low water ratios (3.5%–5%). Twin-shaft mixers create dead zones around shaft ends and fail to break agglomerated micro-silica. Vertical planetary mixers sweep 100% of the pan area with forced multi-directional shear vectors, producing complete binder dispersion and homogenous consistency without trapping air pockets.
For standard refractories, high-chrome cast alloy tiles (HRB > 65) provide exceptional lifespan (up to 100,000 batches). For extreme abrasive materials like fused corundum, silicon carbide, or diamond powders, we recommend modular tungsten-carbide hardfaced tiles or custom ceramic-polyurethane composite liners to prevent metallic contamination in high-purity applications.

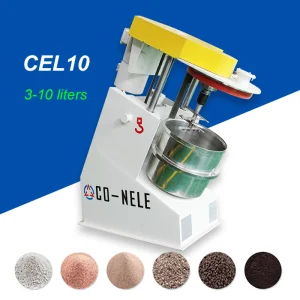

Yes. Our laboratory scale models (5 to 75 Liters) utilize identical relative velocity kinematics, blade aspect ratios, and Froude numbers as our production mixers (up to 3,000 Liters). Test results regarding mixing duration, torque response, granule sphericity, and density scale directly to industrial models with a precision within ±3%.
CO-NELE refractory mixers utilize hydraulically or pneumatically driven rotating discharge gates positioned at the center or side of the pan bottom. The ongoing planetary sweep during discharge actively pushes material through the opening, eliminating material stagnation and preventing coarse aggregates from separating from fine powder matrices.
The synthetic oil bath in our heavy-duty planetary reducer should be replaced after the initial 500 operating hours, and subsequently every 4,000 to 5,000 hours (or annually). Visual seal inspection and blade clearance adjustment should be performed weekly to maintain optimal shearing geometry and prevent liner contact.
