When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Castable mixer price,cmp500 and CR19 Manufacturer, Factory

1 / 4

China Castable mixer price,cmp500 and CR19 Manufacturer, Factory

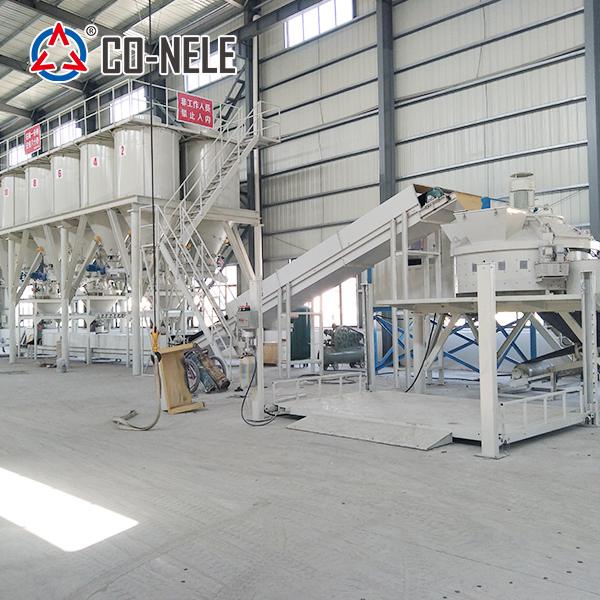

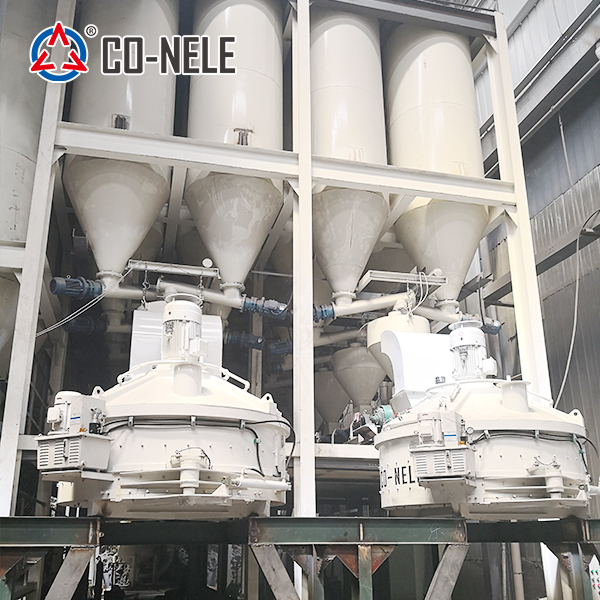

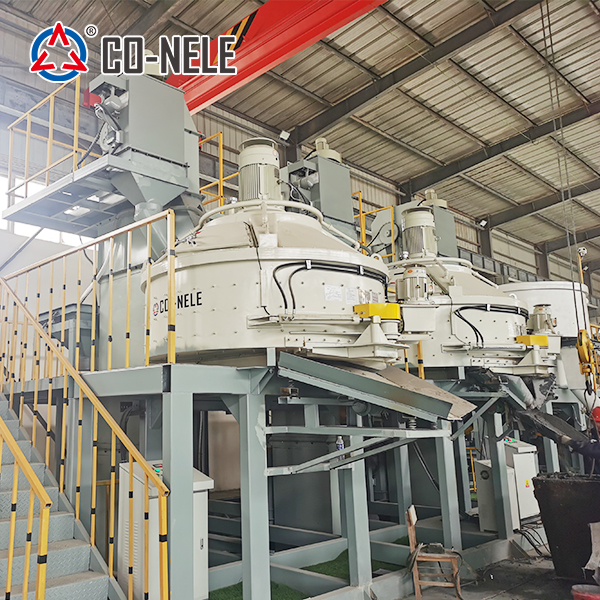

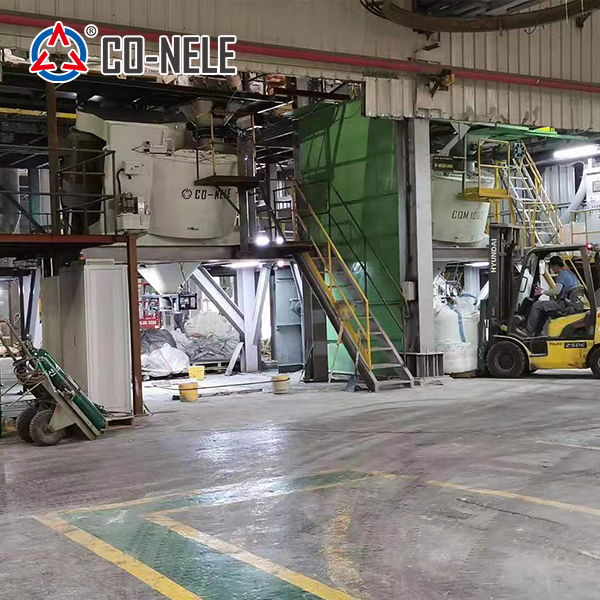

Castable Refractory Material Used Planetary concrete Mixer/Pan Mixer/intensive mixer

Send Inquiry

Product Description

CO-NELE CMP planetary concrete mixer can mix all kinds of materials like high performence concrete, refractory materials,ceramics, glass and others.

The rotated direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the materisl severely mixing and achieve the uniform distribution in microcosm.

High mixing efficiency, low energy consumption.

Compared with traditional planetary mixer, the mixing time of can be reduced 15 to 20%. The no-load current and load current with same material can be 15-20 lower.

Humaniztion design, High saftey.

$refractory mixer machine$

Easy maintenance

Automatic greasing pump can prolong service life of gearbox and reduce the roution maintenance. Large maintenance gate and inside space is convenient for maintenance and spare parts replacement.

$refractory pan mixer machine$

$refractory intensive mixer$

CMP Planetary Rrefractory Mixer Specifications (Part 1)

Type	CMP50	CMP100	CMP150	CMP250	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	50	100	150	250	330	500	750	1000
Input capacity(L)	75	150	225	375	500	750	1125	1500
Output weight(Kg)	120	240	360	600	800	1200	1800	2400
Mixing power(Kw)	3	5.5	7.5	11	15	18.5	30	37
Dischar ging power(Kw)	Pneumatic discharge(optional hydraulic)
Planet/mixing arm	1/2	1/2	1/2	1/2	1/2	-	-	-
Paddle(nr)	1	1	1	1	1	1	1	1
DIscharging paddle(nr)	1	1	1	1	1	1	1	1
Weight(Kw)	700	1100	1300	1500	2000	2400	3900	6200
Ligting power(Kw)	-	2.2	2.2	3	4	4	7.5	11

CMP Planetary Refractory Mixer Specifications (Part 2)

Type	CMP1250	CMP1500	CMP2000	CMP2500	CMP3000	CMP4000	CMP4500	CMP5000
Output capacity(L)	1250	1500	2000	2500	3000	4000	4500	5000
Input capacity(L)	1875	2250	3000	3750	4500	6000	6750	7500
Output weight(Kg)	3000	3600	4800	6000	7200	9600	10800	12000
Mixing power(Kw)	45	55	75	90	110	160	200	250
Dischar ging power(Kw)	3	3	4	4	4	4	4	4
Planet/mixing arm	2/4	2/4	3/6	3/6	3/9	3/9	3/9	3/9
Paddle(nr)	1	1	1	1	1	1	1	1
DIscharging paddle(nr)	1	1	2	2	2	2	2	2
Weight(Kw)	6700	7700	9500	11000	12000	16500	17500	18500
Ligting power(Kw)	15	15	22	30	37	-	-	-

Frequently Asked Questions (FAQ)

Q: What materials can be processed using the CO-NELE CMP planetary mixer?

The CMP planetary mixer is highly versatile and capable of processing high-performance concrete, refractory materials, ceramics, glass, and various other industrial mixtures.

Q: How does the counter-rotating mixing mechanism improve batch quality?

The rotated direction of the mixing stars is reversed relative to the main revolution direction. Combined with multi-directional star movements, this dual circulation and convective action produces severe mixing that achieves microscopic uniform distribution.

Q: How much energy can the CMP planetary concrete mixer save?

Compared to traditional planetary mixers, mixing cycle time is reduced by 15% to 20%. Additionally, both no-load and load currents for identical material batches are lowered by 15% to 20%, resulting in significant overall power savings.

Q: What features are implemented for safety and maintenance convenience?

The machine features an automatic greasing pump to extend gearbox working lifespan and decrease routine maintenance needs. A wide maintenance access gate and spacious interior provide convenient access for spare parts replacement and cleaning.

Q: What discharging options are available for the CMP planetary series?

Standard CMP planetary mixer models come equipped with a pneumatic discharge system, while a hydraulic discharge mechanism is available as an option based on operational requirements.
