CO-NELEMixing & Granulation

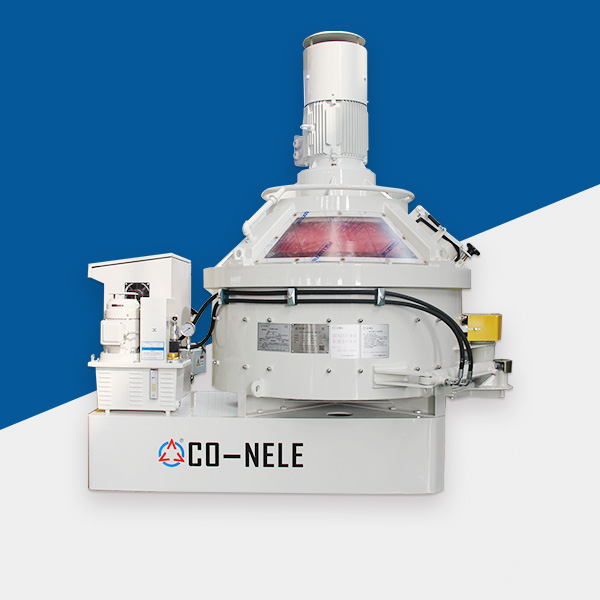

Driving system consists of motor and hardened surface gear which is specialized designed by CO-NELE (patented). Flexible coupling and hydraulic coupling (option) connects motor and gearbox.
Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades.
A special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.
The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.
Overhead structure is used to water (patent products). The nozzle which adopts spiral solid cone nozzle, has a fine uniform atomization effect, large covering area and make the material more uniform mixing.
According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands.
| Item | CMP50 |
| Output capacity (L) | 50 |
| Mixing power (Kw) | 3 |
| Planet/mixing arm | 1/2 |
| Paddle (nr) | 1 |
| Discharging paddle (nr) | 1 |

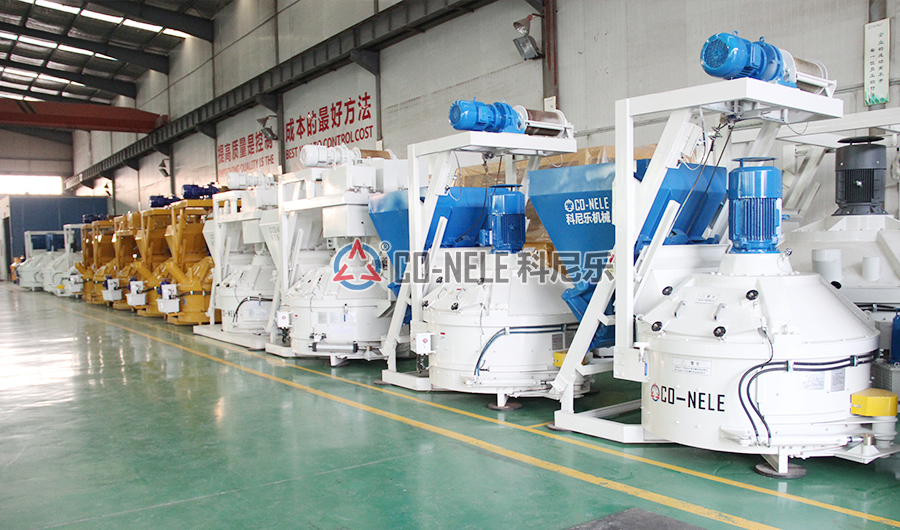

Our company is located in Qingdao city Shandong Province and our factory has two manufacturing bases. The plant construction area of 30,000 square meters. We provide high quality products throughout the country and also exports to more than 80 countries and regions from Germany, United States, Brazil, South Africa etc.
We have our own professionals and technicians to handle development, design, production, sales and service. Our products have passed the CE certification and obtained ISO9001, ISO14001, ISO45001 system certification. Planetary mixer has the first domestic market share. We have A-level unit of Mixing Machine Research Institute.
We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perform the proper training abroad.
We are Manufacturer. We have been engaged in the production of planetary concrete mixer for more than 20 years. CONELE is the largest exporter of planetary mixer in China.
The planetary concrete mixer adopts the principle of planetary mixing, and combines the rotation and revolution mode, which provides forcing effects such as extrusion and overturning on the material during the operation of the equipment.
Just tell us the capacity (m3/h, t/h) of refractory you want to produce concrete per hour or per month.
The planetary concrete mixer is obviously affected by factors such as equipment specifications, technical design costs, and the comprehensive market environment. These are also important factors that affect the price gap between different vertical shaft planetary mixer manufacturers. If you want to know the price, you can send an inquiry or contact us directly.
Our factory spans 30,000 square meters across two manufacturing bases in Qingdao, Shandong. We supply products nationwide and export to over 80 countries and regions, including Germany, the United States, Brazil, and South Africa.
Our products have passed CE certification and obtained ISO9001, ISO14001, and ISO45001 system certifications. We hold the first domestic market share for planetary mixers, operate an A-level unit of Mixing Machine Research Institute, and have over 50 technicians providing overseas installation and training.
