When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

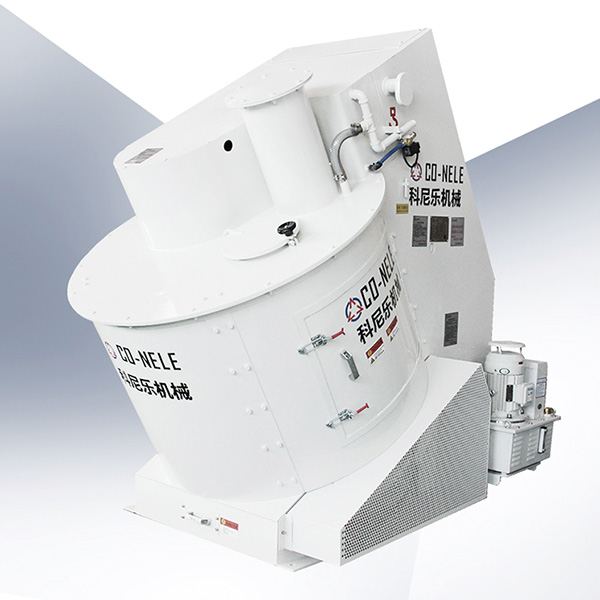

$China Refractory mixer Manufacturer, Factory$

1 / 1

$China Refractory mixer Manufacturer, Factory$

China Refractory mixer Manufacturer, Factory

Send Inquiry

Product Description

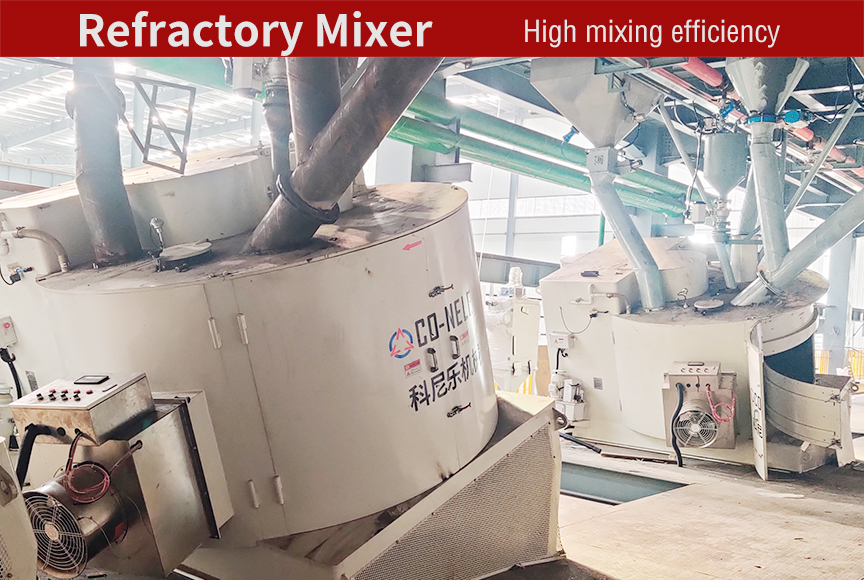

$Refractory Mixer Equipment$

In refractory production, uniform and efficient mixing is a critical step in determining castable fluidity, precast structural strength, and final product performance. Intensive mixers with their unique mixing principles and powerful performance, have become an indispensable core piece of equipment in modern refractory preparation, applicable across the entire supply chain from laboratory research and development to large-scale industrial production. Refractory mixer is a mixing device developed by co-nele according to the characteristics of the refractory material. After the refractory material is rigorously compounded, it is efficiently mixed to form a high-quality material with uniform composition and good granules.

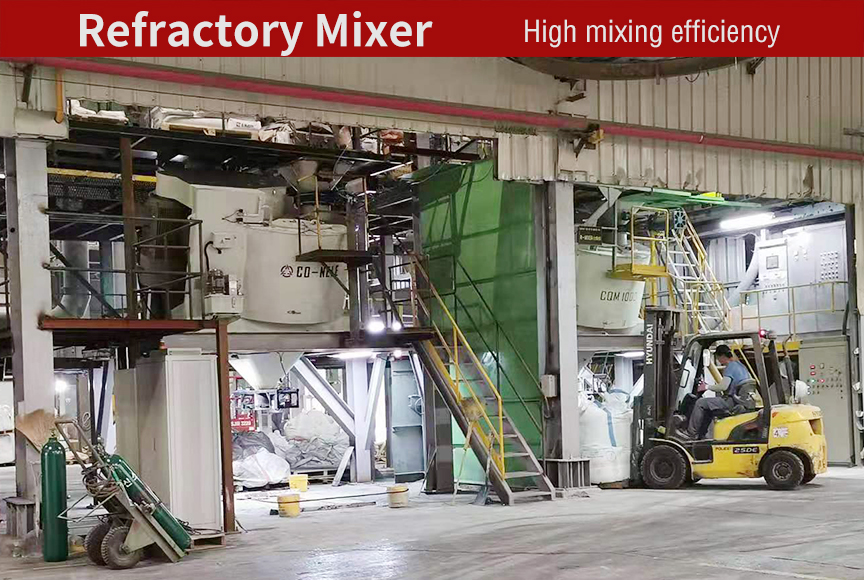

$Inclined Intensive Refractory Mixer$

The inclined intensive mixer uses the gravity of the barrel and the forced agitation of the agitating rotor. The mixing effect is representative of all refractory mixers. The refractory mixer combines the double barrel of the inclined barrel design with the mixer to form a three-dimensional mixing of the mixer, mixing no dead angle, high uniformity, fast mixing speed, fast and clean discharge. The refractory mixer has a strong mixing process but does not cause damage or wear to the material.

The high-speed rotating impeller (rotor) and stationary scraper (stator) work together to create intense shear, convection, and diffusion. Even with refractory aggregates, fine powders, micronized powders, and binder systems with widely varying densities and particle sizes, this system achieves ultra-uniform dispersion from macro to micro scale, ensuring complete integration of all material components and eliminating clumps and dead spots.

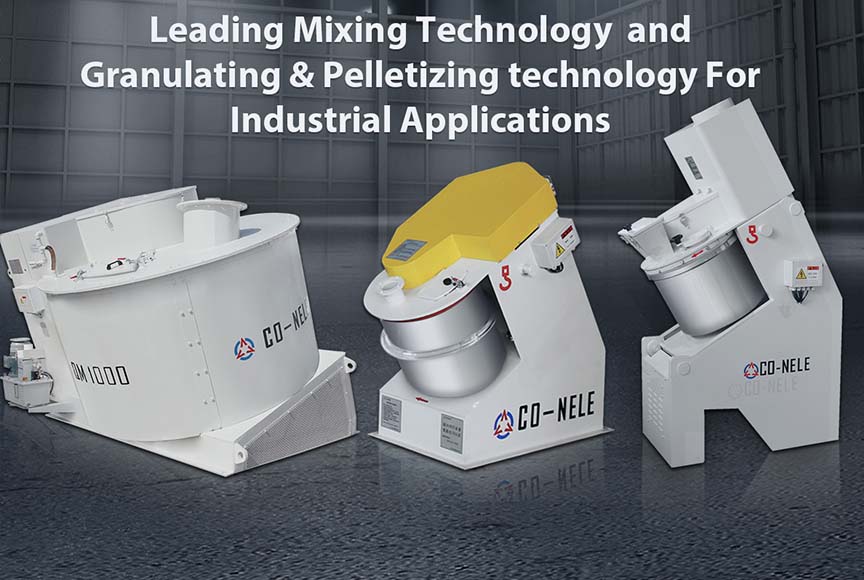

$Refractory Mixer Components$

Key contact components (impellers and liners) are manufactured from high-hardness, wear-resistant steel or special alloys and are optimized to withstand the high-hardness wear of refractory materials (such as corundum, silicon carbide, and spinel), significantly extending equipment life and reducing maintenance costs.

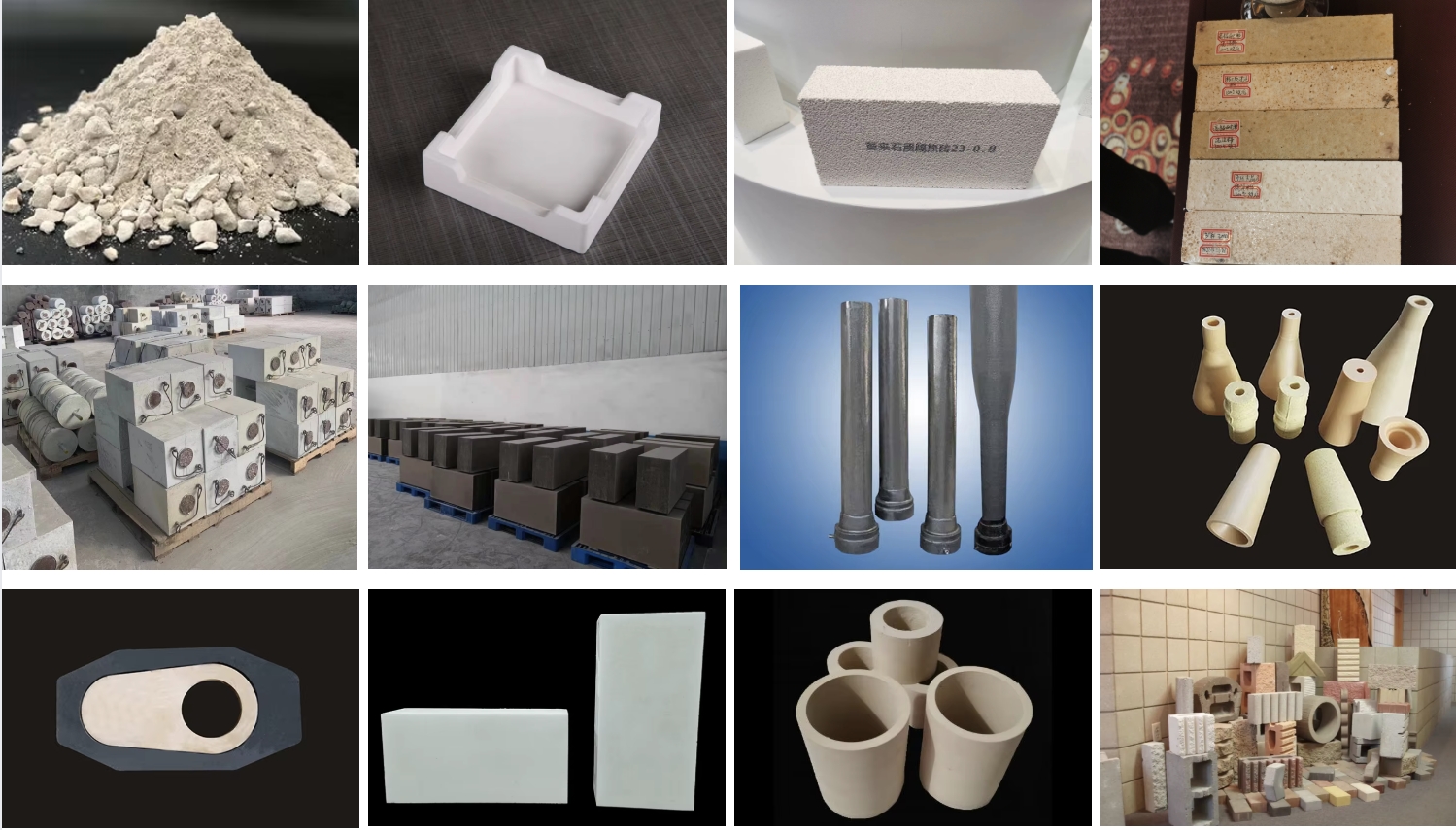

$Refractory Mixer Detail 1$

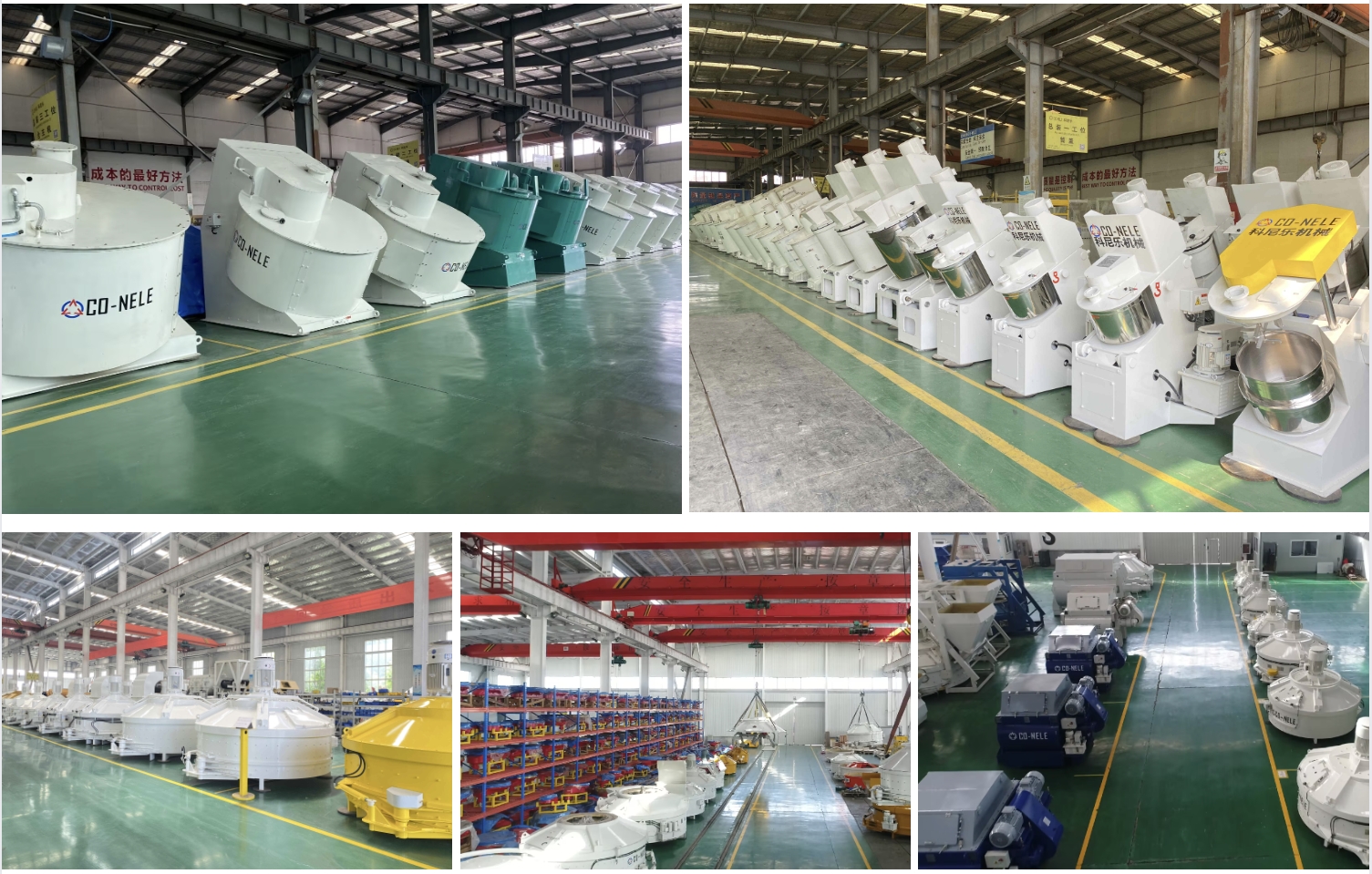

$Refractory Mixer Detail 2$

Structural Properties of Refractory Mixers

The refractory mixer adopts the scientifically designed mixing technology, and the mixing can achieve the best dispersion and uniformity.

The structure of refractory mixer equipment is not complicated, the overall design is compact, and the operation is safe and reliable.

The reasonable agitating structure design of the mixer makes the mixing more complete, and the unloading scraper is installed to make the discharging quick and clean and easy to clean.

Superior control system, can carry out precise operation, high work efficiency, low power consumption.

Special mixing tool design to meet the uniform mixing of various materials. The whole equipment has been treated with wear resistance and corrosion resistance. The related parts are strong and durable, and the overall failure rate of the equipment is low and easy to maintain.

The refractory mixer equipment has good sealing performance and effectively prevents the mixture from being polluted by the environment.

Key Performance Benefits

Significantly improve the molding properties of refractories.

The mud which is stirred and mixed is uniform and homogenous, and does not segregate.

Under the premise of ensuring plasticity, the density of the mixture is high, and there is no looseness of the mud.

Frequently Asked Questions (FAQ)

Q: What is the importance of intensive mixing in refractory production?

Uniform and efficient mixing is critical for determining castable fluidity, precast structural strength, and the overall performance of the final refractory product.

Q: How does the inclined intensive mixer eliminate dead mixing angles?

By combining an inclined double-barrel design with forced agitation rotors, the mixer creates a three-dimensional mixing movement that prevents dead zones and achieves fast, uniform dispersion.

Q: Can the refractory mixer process materials with widely varying particle sizes?

Yes. The combination of high-speed rotating impellers and stationary scrapers creates intense shear, convection, and diffusion, ensuring ultra-uniform dispersion across fine powders, micronized powders, and aggregates.

Q: How does the equipment handle abrasive refractory raw materials?

Key contact components such as impellers and liners are made from high-hardness, wear-resistant steel or special alloys designed to withstand abrasive materials like corundum, silicon carbide, and spinel.

Q: What key quality improvements does the mixer bring to refractory mud?

It ensures the mud is homogenous without segregation, significantly enhances molding properties, and achieves high mixture density without mud looseness while retaining plasticity.
