When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China MP2000 Planetary concrete mixer Manufacturer, Machine

1 / 3

China MP2000 Planetary concrete mixer Manufacturer, Machine

Send Inquiry

Product Description

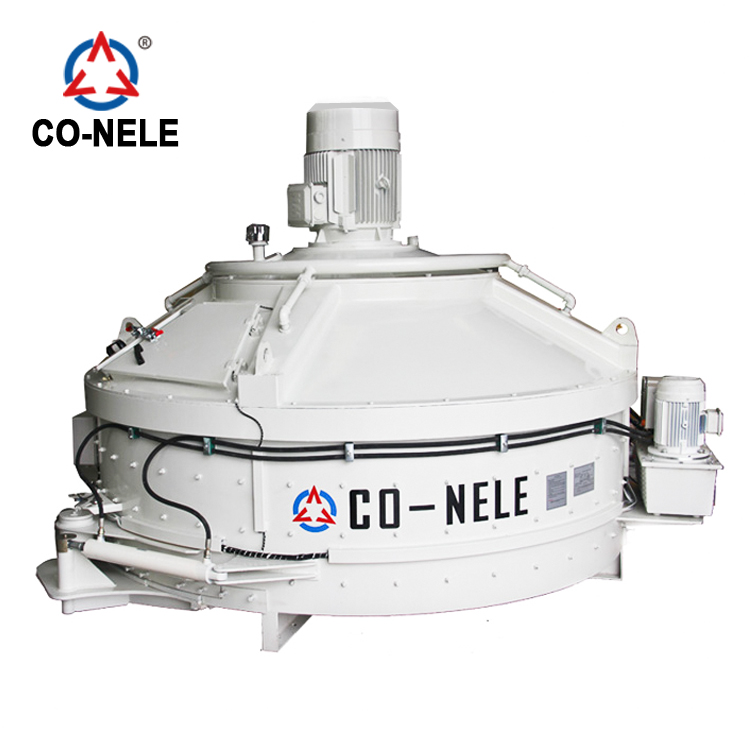

CO-NELE MP Series Planetary Concrete Mixer

CO-NELE MP series Planetary Concrete Mixer, also known as Concrete Pan Mixer, is researched, developed, and manufactured using advanced German Technology. This type of planetary concrete mixer offers a wider range of applications than traditional twin shaft forced concrete mixers and delivers superior mixing performance for virtually all kinds of concrete—including common commercial concrete, precast concrete, low slump concrete, dry concrete, and plastic fiber concrete. It has also successfully solved many complex mixing challenges associated with High Performance Concrete (HPC).

Technical Specifications

Type	CMP100	CMP150	CMP250	CMP330	CMP500	CMP750
Out capacity (L)	100	150	250	330	500	750
Input capacity (L)	150	225	375	500	750	1125
Output mass (Kg)	240	360	600	800	1200	1800
Mixing power (Kw)	5.5	7.5	11	15	18.5	30
Discharging power (Kw)	Pneumatic or hydraulic discharge
Planet / main planet (nr)	1/2	1/2	1/2	1/2	1/2	1/3
Paddle (nr)	1	1	1	1	1	1
Discharging scraper (nr)	1	1	1	1	1	1
Weight (Kg)	1100	1300	1500	2000	2400	3900
Lifting power (Kw)	2.2	2.2	3	4	4	7.5
Dimension (LWH, mm)	167014601450	167014601620	186016501780	187018701855	223020801880	258023402195

Type	CMP1500	CMP2000	CMP2500	CMP3000	CMP4000	CMP4500
Out capacity (L)	1500	2000	2500	3000	4000	4500
Input capacity (L)	2250	3000	3750	4500	6000	6750
Output mass (Kg)	3600	4800	6000	7200	9600	10800
Mixing power (Kw)	55	75	90	110	160	200
Discharging power (Kw)	3	4	4	4	4	4
Planet / main planet (nr)	2/4	3/6	3/6	3/9	3/9	3/9
Paddle (nr)	1	1	1	1	1	1
Discharging scraper (nr)	1	2	2	2	2	2
Weight (Kg)	7700	9500	11000	12000	16500	17500
Lifting power (Kw)	15	22	30	37	-	-
Dimension (LWH, mm)	323029022470	362532302630	390035502695	390035502975	456041503105	156041503305

Frequently Asked Questions (FAQ)

What concrete types can the CO-NELE MP Series Planetary Mixer process?

The MP series is suitable for virtually all kinds of concrete, including commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete, and High Performance Concrete (HPC).

What advantages does a planetary mixer have over a twin shaft mixer?

Planetary mixers offer a wider range of applications and significantly higher mixing homogeneity, especially when mixing tough or specialized formulas such as HPC, dry concrete, and precast concrete elements.

What technology is used in the CO-NELE MP Series mixers?

The CO-NELE MP series planetary concrete mixers are engineered and manufactured utilizing advanced German mixing technology to ensure high efficiency and durability.

What discharging power options are available for the CMP series?

The CMP series provides flexible operational options featuring either pneumatic or hydraulic discharging power systems.

What capacities are available in the CMP planetary mixer line?

The CMP series ranges from compact models starting at 100L output capacity (CMP100) up to large industrial scale models reaching 4500L output capacity (CMP4500).
