CO-NELEMixing & Granulation

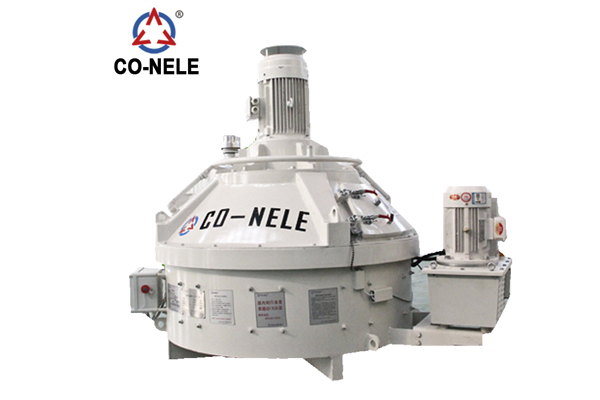

As a core model of the CMP series planetary mixers, the CMP150 adopts a unique "rotation + revolution" blade combination structure, which realizes all-round, continuous and forced mixing of materials, ensuring the consistency of material physical and chemical properties and the repeatability of dispersion quality of each batch of mixed materials. It is widely used in the mixing of ordinary concrete, high-performance concrete (UHPC), special mortar, refractory materials and other materials, and has excellent adaptability to various aggregates and powders.
150L planetary forced concrete mixer for mixing dry concrete, hard concrete, fiber concrete, lightweight aggregate concrete, mortar, semi-dry concrete, UHP concrete; refractories, ceramics, water glass.
CO-NELE CMP planetary mixer unloading cylinder adopts a circular cylinder and can withstand pressure up to 25Mpa. The stability is good and the performance is superior. The mixer liner according to the customer's needs: wear-resistant alloy inserts, surfacing linings, high-chromium alloys.
CO-NELE MP series Planetary Concrete Mixer, also called Concrete Pan Mixer, is researched, developed and manufactured using advanced German Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete etc. It also have solved many mixing problems about HPC (High Performance Concrete).
| Parameter Name | CMP150 (Specific Parameters) |
|---|---|
| Discharging Capacity | 150L |
| Feeding Capacity | 225L |
| Discharging Mass | 360kg |
| Mixing Power | 7.5kw |
| Planet/Mixing Arm | 1/2 |
| Paddle Quantity | 1 |
| Discharging Scraper Quantity | 1 |
| Total Weight | 1300kg |
| Length×Width×Height | 1670×1460×1620mm |
| Discharging Method | Pneumatic/Hydraulic Optional |
| Certification Standard | CE, ISO |
The CMP150 planetary concrete mixer adopts a scientific planetary mixing trajectory. The mixing blades cover the entire mixing drum cavity during the rotation and revolution process, completely eliminating the mixing dead angle that plagues traditional mixers. It can effectively solve the problems of lightweight aggregate floating and ultra-fine powder agglomeration, ensuring that the active components and reinforcing materials in each cubic meter of concrete are evenly distributed, and the mixing uniformity reaches more than 98%. At the same time, the special design structure is conductive to the rapid discharge of bubbles during the mixing process, improving the compactness and strength of concrete products.
The transmission device of the CMP150 is composed of a high-efficiency motor and a hardened surface reducer specially designed by our company, with completely independent intellectual property rights. The motor and reducer are connected by a flexible coupling or hydraulic coupling (optional), which can ensure normal startup even under full load conditions, with low noise, large torque and strong durability.

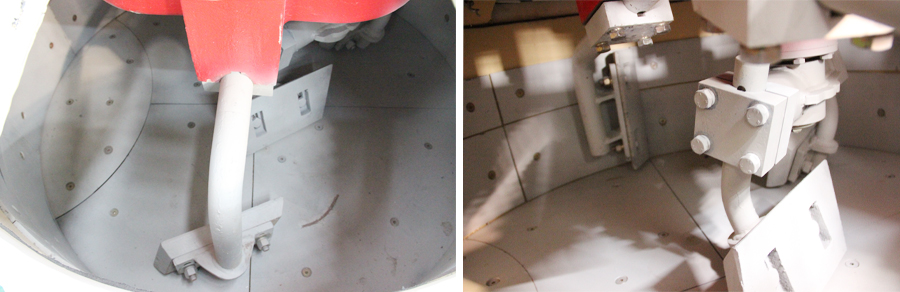

The mixing blades of the CMP150 are designed with a patented parallelogram structure, which can be rotated 180° for reuse according to the actual wear condition, effectively improving the utilization rate and service life of the blades. The mixing drum is made of high-quality wear-resistant steel plate, which is resistant to impact and wear, and can adapt to long-term high-intensity mixing work. The equipment is equipped with a special maintenance door and observation port, which allows observation of the mixing situation without power failure, and Facilitates daily inspection, cleaning and maintenance, greatly reducing the labor intensity of operators and the overall operation cost of the equipment.
The CMP150 attaches great importance to operational safety. The maintenance door is equipped with a high-sensitivity and high-reliability safety switch. When the maintenance door is opened, the equipment will automatically stop running to avoid safety accidents caused by misoperation. The discharging door is equipped with a special sealing device, which ensures firm sealing and reliable control, preventing material leakage during the mixing process. The specially designed hydraulic pump station can meet the requirements of configuring multiple discharging doors, and has a manual discharging function, which can manually open the discharging door in case of emergency, ensuring the safety and smoothness of the production process.
The CMP150 planetary concrete mixer has a wide range of applications, and is deeply favored by customers in various industries due to its small size, flexible movement, high efficiency and energy saving, and strong adaptability. It is mainly applicable to the following scenarios:
The CMP150 is capable of handling a wide range of materials, including ordinary concrete, UHPC (ultra-high performance concrete), dry concrete, fiber concrete, lightweight aggregate concrete, special mortars, refractory materials, ceramics, and water glass.
The CMP150 mixer has a discharging capacity of 150L, a feeding capacity of 225L, a discharging mass of 360kg, and is powered by a 7.5kW mixing motor.
The scientific planetary trajectory allows the blades to cover the entire drum cavity without dead ends. This ensures over 98% mixing uniformity, prevents aggregate floating and powder agglomeration, and helps quickly discharge bubbles to improve concrete strength.
It features patented parallelogram mixing blades that can be rotated 180° for extended reuse, customizable liner materials (wear-resistant alloy inserts, surfacing linings, high-chromium alloys), and dedicated observation/maintenance ports.
The CMP150 includes a high-sensitivity safety switch on the maintenance door that halts operation automatically when opened, secure discharge door sealing to prevent leaks, and a manual emergency discharge feature via its hydraulic pump station.
