When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Planetary Concrete Mixer Type CMP1125/750 Factory, Machine

1 / 3

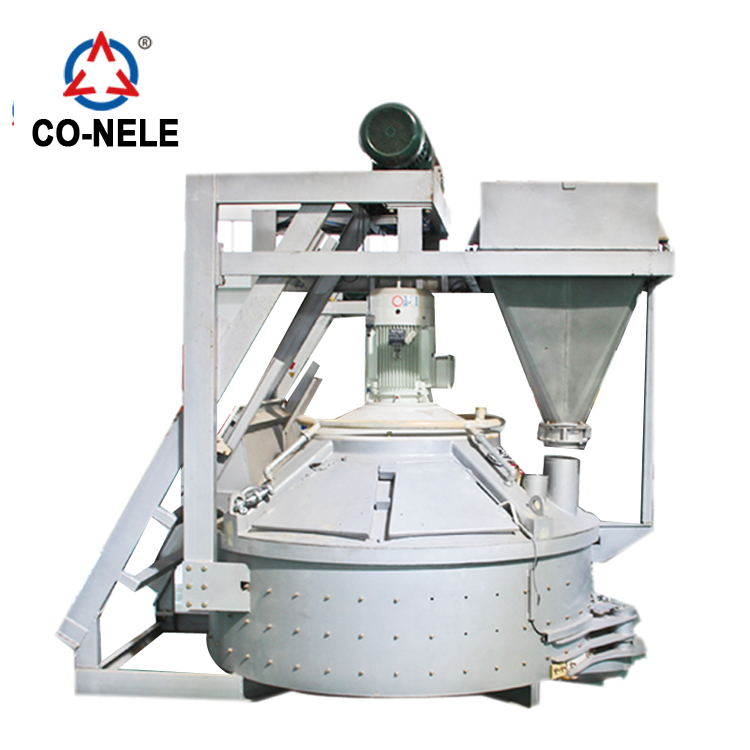

China Planetary Concrete Mixer Type CMP1125/750 Factory, Machine

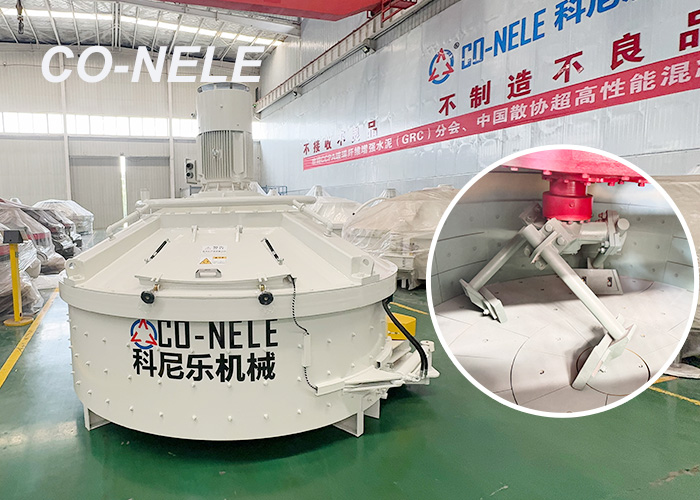

CMP750 Planetary Concrete Mixer - High Efficiency & Uniform Mixing Solution . Developed by integrating advanced German mixing technology and independent R&D innovations, this mixer effectively solves industry pain points such as aggregate segregation, uneven mixing, and low production efficiency, making it an ideal choice for precast concrete plants, road and bridge construction, high-rise building projects, and other scenarios requiring high-quality concrete mixing.

Send Inquiry

Product Description

As a flagship model of the CMP series planetary concrete mixers, the CMP750 Planetary Concrete Mixer is engineered to deliver exceptional mixing uniformity, high efficiency, and reliable performance for various construction and industrial applications.

Core Advantages of CMP750 Planetary Concrete Mixer

Patented Planetary Mixing Technology

Features 360° No-Dead-Zone Mixing. The mixer adopts a unique countercurrent planetary motion principle where mixing arms rotate on their own axis while revolving around the central axis. This dual-motion design eliminates dead zones completely, achieving 100% uniform mixing and preventing aggregate segregation in HPC and UHPC production.

Durable & Wear-Resistant Structural Design

Equipped with patented parallelogram mixing blades that can be flipped 180° for reuse, significantly extending service life. The drum is lined with interchangeable wear-resistant panels, fixed side scrapers, and bottom discharge scrapers to prevent material adhesion and residue.

Flexible Configuration & Easy Operation

Supports up to 3 discharging doors with pneumatic, hydraulic, or manual controls. Includes a high-sensitivity safety switch on the maintenance door and observation port for safe real-time monitoring. The integrated control system reduces labor intensity and errors.

Energy-Saving & High-Efficiency Performance

Powered by a 30kW motor that shortens mixing duration while ensuring uniformity. Equipped with a specially designed hard-surface gearbox and optional fluid clutch to guarantee smooth full-load startups and long operational life.

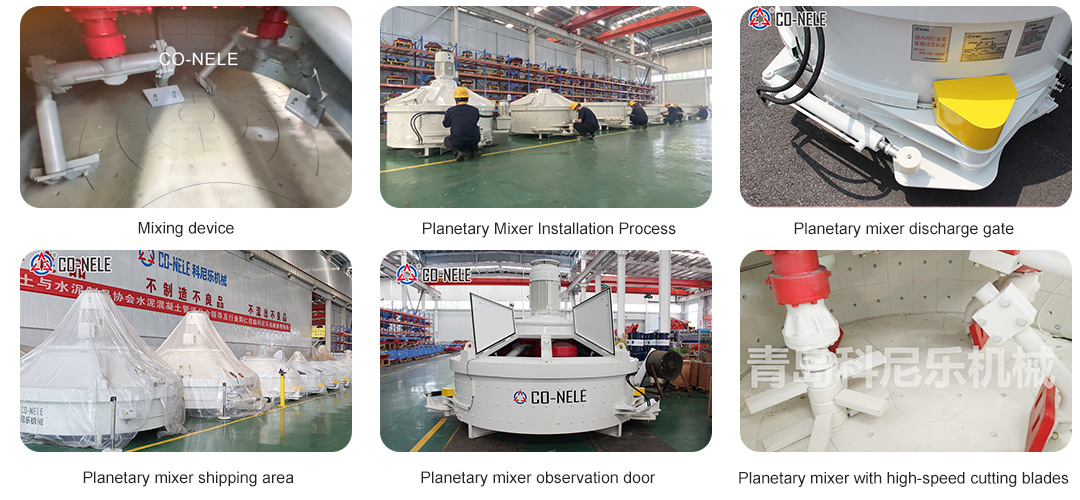

Key Components & Structural System

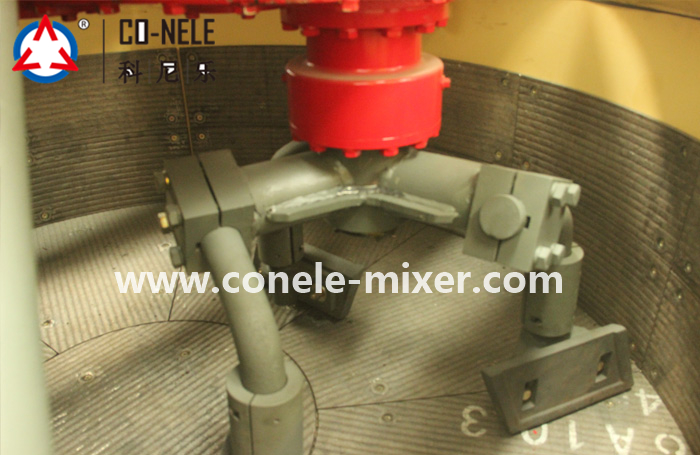

1 Mixing Device

Mixing blades are designed in a patented parallelogram structure, which can be turned 180° for reuse to increase service life. Specialized discharge scrapers are tailored according to discharge speed to boost productivity.

2 Gearing System

The driving system consists of a motor and a hardened surface gear specially designed by CO-NELE (patented). This improved model offers lower noise, higher torque, and enhanced durability, efficiently distributing power evenly even under strict production conditions.

3 Discharging Device

The discharging door can be operated via hydraulic, pneumatic, or manual systems. The unit supports up to three discharging doors depending on application needs.

4 Hydraulic Power Unit

A specialized hydraulic power unit provides reliable and consistent power to drive multiple discharging gates seamlessly.

5 Water Spray Pipe

Designed to deliver a fine mist cloud covering a broader area, ensuring homogenous water distribution throughout the mixing process.

Detailed Specifications of CMP750

Specification Item	Parameter
Discharge Capacity	750L (0.75m³)
Feed Capacity	1125L
Discharge Weight per Batch	Approx. 1800kg
Rated Mixing Power	30kW
Planetary / Mixing Arm	1 / 3
Side Scraper Quantity	1
Discharge Scraper Quantity	1
Overall Weight	3900kg
Overall Dimension (L×W×H)	2580 × 2340 × 2195 mm
Certification	CE, ISO 9001

Wide Application Scenarios

The CMP750 Planetary Concrete Mixer is highly versatile and suitable for mixing a variety of materials, including dry-hard concrete, semi-dry-hard concrete, plastic concrete, fiber-reinforced concrete, UHPC, refractory materials, glass, casting materials, and chemical components. Its wide application scope covers:

Precast concrete plants (blocks, beams, columns)
Road and bridge construction projects
High-rise building structural concrete
Special engineering (tunnels, dams, airport runways)
Industrial fields (refractory & ceramic preparation)

Frequently Asked Questions (FAQ)

Q: What makes planetary mixing superior to traditional concrete mixing?

The countercurrent planetary motion combines arm revolution and blade rotation. This dual motion eliminates dead zones, prevents aggregate segregation, and achieves 100% homogenous mixing required for high-performance concrete (HPC & UHPC).

Q: What are the main capacity specs for the CMP750 model?

The CMP750 has a discharge capacity of 750L (0.75m³), a feed capacity of 1125L, and can handle approximately 1800kg of discharge weight per batch with a 30kW rated mixing power.

Q: How do the mixing blades reduce long-term operational costs?

The mixing blades feature a patented parallelogram structure made of high-hardness wear-resistant material. They can be rotated 180° for double-sided reuse, significantly extending their working life and reducing maintenance costs.

Q: What discharging door configurations are available?

The CMP750 mixer can be equipped with up to 3 discharging doors, operated via hydraulic, pneumatic, or manual control systems depending on site specifications.

Q: Can the CMP750 mix materials other than standard concrete?

Yes. In addition to standard concrete, it excels at mixing dry-hard, semi-dry-hard, plastic, and fiber-reinforced concrete, as well as specialized industrial materials like refractory components, glass, ceramics, and casting materials.
