CO-NELEMixing & Granulation

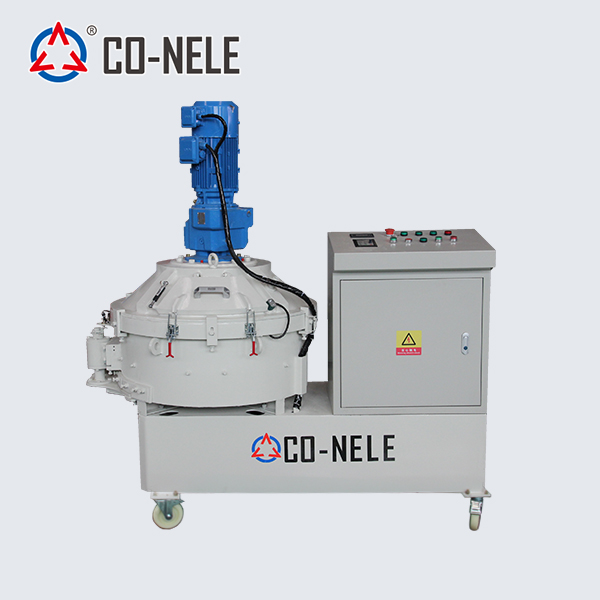

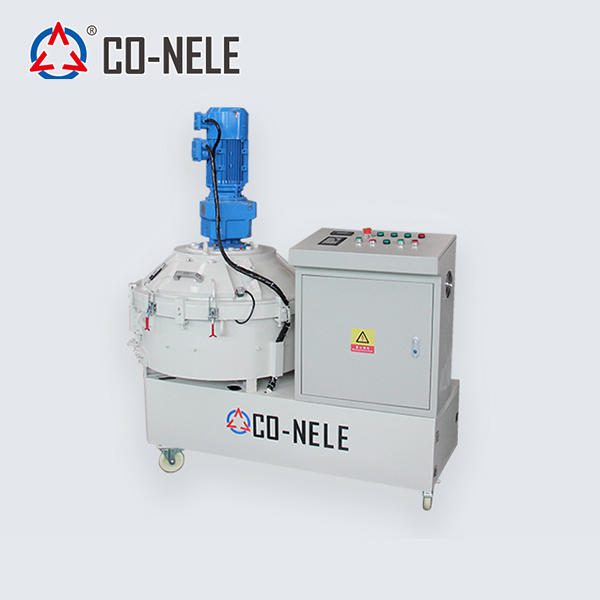

Utilizing a dual motion trajectory design of "revolution + rotation," the mixing arm revolves around the main shaft while the planetary shaft rotates at high speed, creating a non-repetitive mixing path. It can cover the entire 50-liter mixing drum in 5 seconds, completely eliminating the phenomenon of material accumulation on the drum walls and bottom. Equipped with 1-2 automatic wall-scraping blades, it continuously cleans the drum walls, ensuring uniform mixing of materials from inside to outside, without residue or dead zones. The mixing uniformity is improved by more than 60% compared to ordinary mixers, perfectly suited for high-viscosity, high-solid content materials and precision batching requirements.
The discharge capacity is precisely controlled at 50L, with a feeding capacity of up to 75L and a discharge weight of approximately 120kg. This perfectly matches pilot-scale research and development, small-batch production, and laboratory teaching scenarios, avoiding the inefficiency of small-capacity equipment and the high energy consumption and large footprint of large-capacity equipment. The entire machine adopts a wheeled mobile design, with a compact size and convenient mobility, allowing for flexible placement in laboratories, small workshops, and other venues. No professional installation is required; it can be used immediately after unpacking.
The mixing drum material can be flexibly customized according to material characteristics, supporting various materials such as stainless steel and anti-corrosion coatings, meeting the requirements of different industries such as building materials, chemicals, glass, and refractory materials. The mixing tool mode can be customized, equipped with multi-layer paddle type, frame type, butterfly type, and other mixing paddles, achieving multi-functional integrated operation of mixing, stirring, dispersion, and emulsification. A variable frequency motor is also available for stepless speed regulation, precisely controlling the mixing speed to meet the mixing process requirements of different materials.
Using a high-quality planetary gear reducer, it operates with low noise and high mechanical efficiency, saving more than 30% energy compared to traditional mixers, significantly reducing enterprise energy costs over the long term. The discharge device supports both manual and automatic modes, with flexible switching and clean discharge, effectively reducing material waste. The lid features an automatic lifting design for easier cleaning and maintenance, and is equipped with comprehensive safety protection devices to eliminate safety hazards during operation. The entire machine is safe and reliable, meeting the demands of high-intensity continuous operation.
High mixing efficiency and high mixing quality, 100% mixing uniform.
Material mixing laboratoryCO-NELE has a material mixing laboratory. For new industries and new materials, customers can provide materials to CO-NELE for on-site mixing and order the mixer after the customer is satisfied with the stirring effect.
| Type | CMP 50 | CMP100 | CMP150 | CMP 250 | CMP 330 | CMP 500 | CMP 750 | CMP 1000 |
|---|---|---|---|---|---|---|---|---|
| In capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 |
| Out capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 |
| Out mass (kg) | 120 | 240 | 360 | 800 | 200 | 1800 | 2400 | 3000 |
| Mixing power(kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 |
| Discharging power(kw) | Pneumatic discharge (optional hydraulic) | 3 | ||||||
| Planet/main planet(nr) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 |
| Paddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharging paddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Weight(kg) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 |
| Lifting power(kw) | - | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 | 11 |
The 50-liter planetary mixer adopts a modular precision structure design, with each core component working collaboratively to ensure both efficient mixing and convenient operation and maintenance. Different structural components have clear functions and strong compatibility, perfectly supporting the mixing needs of a 50L capacity. The specific structure is detailed below:
As the core execution component of the 50-liter planetary mixer, it adopts a patented planetary transmission structure, consisting of a mixing arm, planetary shaft, mixing paddle, and automatic wall scraping device.
The transmission system uses a high-quality planetary gear reducer, coupled with an optional variable frequency motor, achieving a transmission efficiency of over 95%, smooth operation, and noise level ≤75dB, embodying the advantages of "safety and energy saving". The motor and reducer are elastically connected, effectively buffering the impact force during the mixing process and extending the service life of the equipment; it supports stepless variable frequency speed regulation (optional), allowing for precise adjustment of the mixing speed according to material characteristics, adapting to different mixing processes. It also has a built-in overload protection device to prevent equipment damage due to excessive load, ensuring both efficiency and safety.
The control system adopts an integrated panel design, which is simple and easy to understand, supporting free switching between manual and automatic modes. It is equipped with a high-definition display screen, which displays core parameters such as mixing speed, mixing time, and equipment operating status in real time, facilitating precise control of process details; it has built-in safety devices such as leakage protection and emergency stop buttons to eliminate operational hazards; a customizable PLC control system is available, supporting program setting and automatic start/stop, enabling automated batch operation, suitable for small-scale production and pilot plant scenarios, further improving production efficiency.
The 50-liter planetary mixer, with its flexible configuration and precise mixing capabilities, is widely applicable to pilot-scale testing, small-scale production, and precision experiments across multiple industries. Core application scenarios include:
As a professional manufacturer specializing in the research and development of planetary mixers, we focus on the refined development of small, medium, and large capacity equipment ranging from 50L to 6000L. With years of experience in the industry, we have earned market recognition through technological innovation and quality assurance:
If you need to know more about the detailed configuration, customization options, and pricing information of our 50-liter planetary mixer, or have any technical inquiries, please feel free to contact us. We will provide you with professional and attentive service to help you efficiently advance your production and research and development work.
