CO-NELEMixing & Granulation

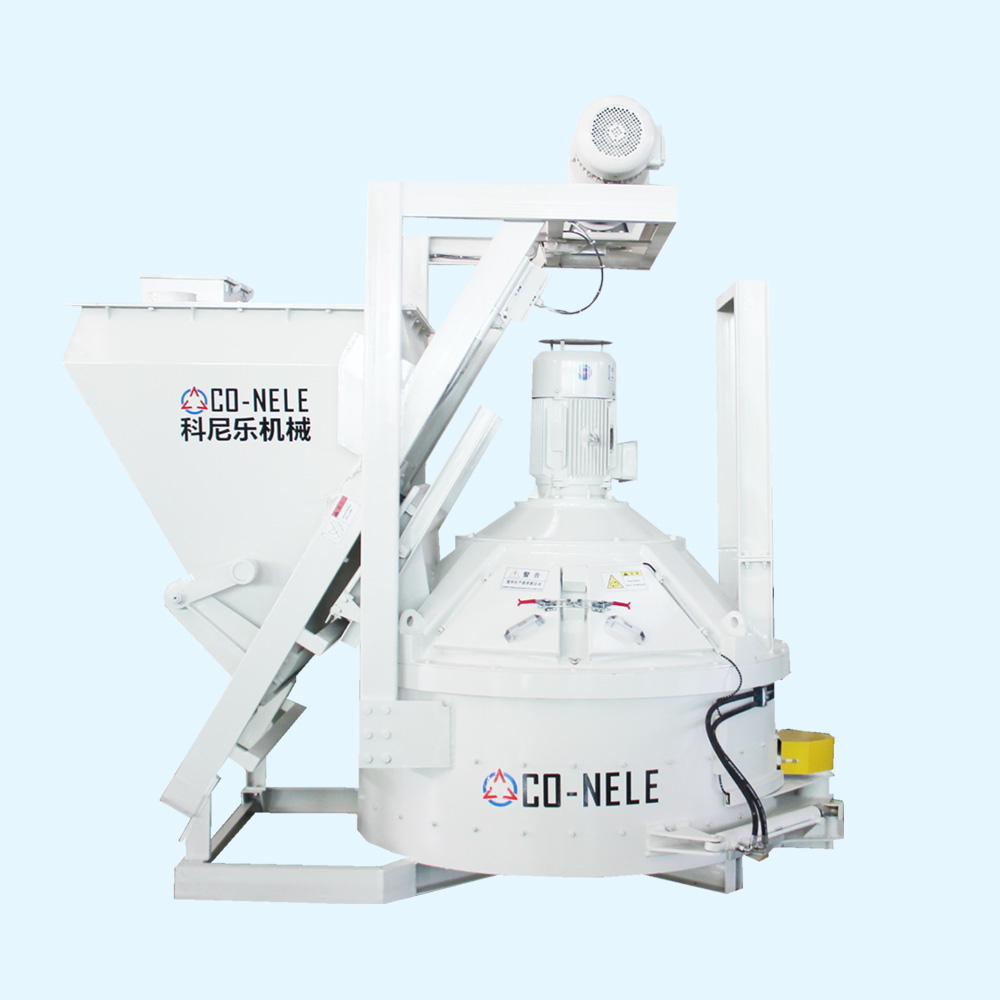

The CMP250 Planetary Concrete Mixer is a high-performance mixing equipment designed for small to medium-sized construction projects, precast component factories, and special material mixing needs. As a professional planetary mixer, it adopts advanced German-inspired technology and patented structural design, solving the problem of high homogeneity requirements for materials in various industries and becoming the preferred equipment for customers pursuing efficiency, quality, and stability worldwide. Whether you need to mix ordinary concrete, dry-hard concrete, plastic concrete, or special materials such as fiber concrete and refractory materials, the CMP250 can meet your diverse mixing demands with excellent performance.
CO-NELE MP series Planetary Concrete Mixer, also called Concrete Pan Mixer, is researched, developed and manufactured using advanced German Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete etc. It also have solved many mixing problems about HPC (High Performance Concrete).
Clear and detailed parameters help users quickly understand the product performance. The following are the standard parameters of the CMP250 planetary concrete mixer (customization is available according to user needs):
| Item | Specification |
|---|---|
| Model | CMP250 |
| Discharging Capacity | 250L |
| Feeding Capacity | 375L |
| Discharging Mass | 600kg |
| Mixing Rated Power | 11kW |
| Discharging Power | Pneumatic or Hydraulic |
| Number of Planetary/Mixing Arms | 1/2 |
| Number of Side Scrapers | 1 |
| Number of Discharging Scrapers | 1 |
| Machine Weight | 1500kg |
| Overall Dimensions (L×W×H) | 1860×1650×1780mm |
| Item/Type | MP250 | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
|---|---|---|---|---|---|---|---|---|---|
| Outp capacity | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input capacity(L) | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input capacity(kg) | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Diameter of mixing trough(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 |
| Mixing power(kw) | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Mixing blade | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom scraper | - | - | - | 1 | 1 | 1 | 2 | 2 | 2 |
| Weight(kg) | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
The CMP250 adopts a professional planetary fly-cutter mixing device, where the mixing arms perform both self-rotation and revolution, forming a complex and intensive planetary motion trajectory. This compound motion drives all materials to undergo cyclic and convective movement, ensuring that cement, aggregate, water, and additives are fully mixed in a short time, achieving both macro and micro uniformity. The mixing blade is designed with a patented parallelogram structure, which can be flipped 180° for reuse, extending the service life while enhancing mixing uniformity. There is no dead angle in the mixing drum, effectively avoiding the problem of uneven mixing of traditional mixers and ensuring the stability of concrete strength.
With a rated mixing power of 11kW, the CMP250 has strong mixing capacity while achieving excellent energy-saving effects. Under the same material ratio and feeding time, its mixing time is shortened by 15-20% compared with traditional mixers; under the same no-load and load conditions, the mixing current is 15-20% lower than that of traditional twin-shaft mixers, significantly reducing energy consumption and production costs for users. The machine has a feeding capacity of 375L and a discharging capacity of 250L, with a discharging mass of 600kg, which can efficiently complete the mixing task and improve the overall construction progress.
The CMP250 supports multiple discharging methods, including hydraulic, pneumatic, and manual discharging, which can be selected according to user needs; the maximum number of discharging doors can reach 3, and the discharging door is equipped with a special sealing device to ensure reliable sealing and avoid material leakage during discharging. The overhead water and additive adding device has a large coverage area, making the materials mixed more uniformly and adapting to the mixing needs of different types of concrete and special materials. It is widely used in precast concrete, high-performance concrete, refractory materials, ceramics, and other industries, and can also be matched with automatic production lines to achieve continuous and efficient production.
In the global market of planetary concrete mixers, CO-NELE Mixers stands out with its high quality, high efficiency, and high cost performance, bringing tangible benefits to users:
If you are looking for a high-efficiency, uniform, and reliable planetary concrete mixer, Contact us now to get the latest CMP250 planetary concrete mixer price, detailed quotation, and product video, and let us provide you with professional mixing solutions tailored to your needs!
The CMP250 planetary concrete mixer has a feeding capacity of 375L, a discharging capacity of 250L, and a maximum discharging mass of 600kg per batch.
It can mix a wide range of materials, including commercial concrete, precast concrete, low slump concrete, dry-hard concrete, plastic fiber concrete, high-performance concrete (HPC), refractory materials, and ceramics.
The mixing arms perform simultaneous self-rotation and revolution, driving all materials into intensive cyclic and convective movement. This eliminates dead angles and guarantees homogeneous mixing at both macro and micro levels.
The CMP250 supports pneumatic, hydraulic, or manual discharging methods. It can feature up to 3 discharging doors, each fitted with a specialized seal to eliminate slurry leakage.
With an 11kW power rating, its mixing time is reduced by 15-20% and its mixing current is 15-20% lower than traditional twin-shaft mixers under identical load conditions, significantly saving operational energy costs.
CO-NELE offers global technical support, routine maintenance guidance, and spare parts supply with a guaranteed response time of ≤12 hours to maintain smooth production operations.
