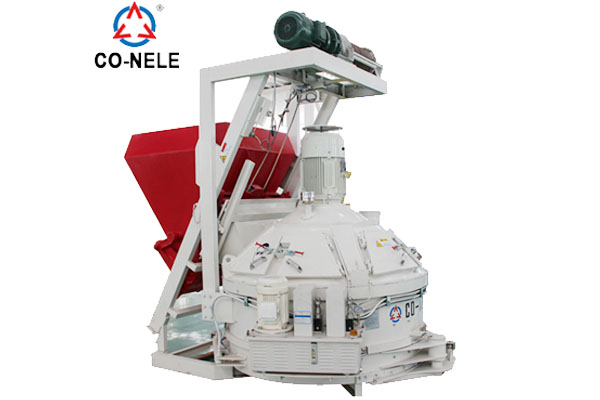

CO-NELE is a professional planetary concrete mixer manufacturer in China. Planetary mixer with high mixing efficiency and even mixing, used for mixing high-performance concrete, refractory castables, mortar, etc.
Product Description
Vertical Shaft, Planetary Mixing Motion Track
Compact Structure, No Slurry Leakage Problem, Economic and Durable
Hydraulic or Pneumatic Discharging
Technical Parameters
Item/Type
MP250
MP330
MP500
MP750
MP1000
MP1500
MP2000
MP2500
MP3000
Outp capacity
250
330
500
750
1000
1500
2000
2500
3000
Input capacity(L)
375
500
750
1125
1500
2250
3000
3750
4500
Input capacity(kg)
600
800
1200
1800
2400
3600
4800
6000
7200
Diameter of mixing trough(mm)
1300
1540
1900
2192
2496
2796
3100
3400
3400
Mixing power(kw)
11
15
18.5
30
37
55
75
90
110
Mixing blade
1/2
1/2
1/2
1/3
2/4
2/4
3/6
3/6
3/9
Side scraper
1
1
1
1
1
1
1
1
1
Bottom scraper
-
-
-
1
1
1
2
2
2
Weight(kg)
1200
1700
2000
3500
6000
7000
8500
10500
11000

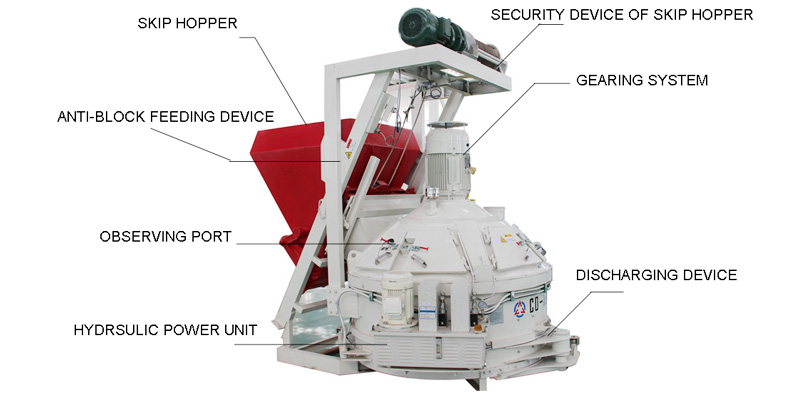

Detailed Features
Mixing Door
Security, sealing, convenience, and fast operation.
Observing Port
There is an observing port on the maintenance door. You can observe the mixing situation without cutting off the power.

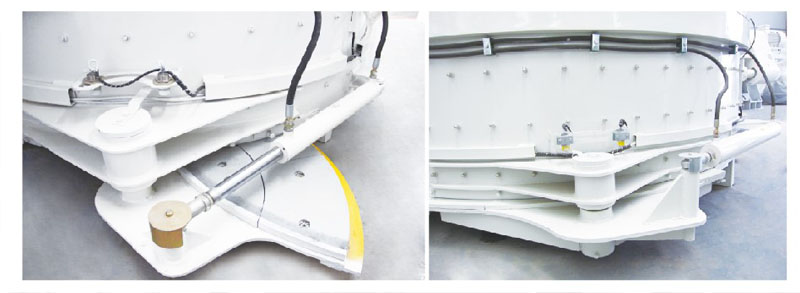

Discharging Device
According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic, or by hands. The number of discharging doors is three at most. There is a special sealing device on the discharging door to ensure reliable sealing.

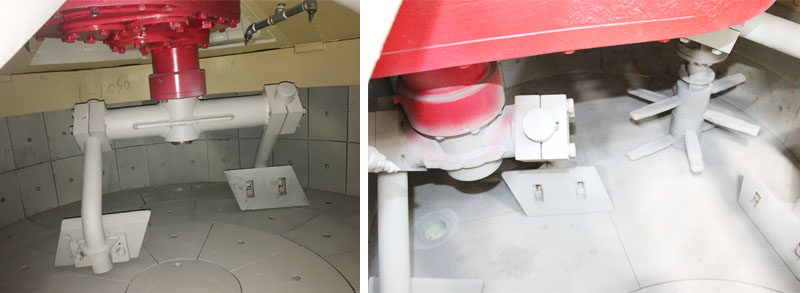

Mixing Device
Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Mixing blades are designed in parallelogram structure (patented), which can be turned 180° for reuse to increase service life. Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.
Water Spray Pipe
The spraying water cloud can cover more area and also make the mixing more homogeneous.
The Skip Hopper
The skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents dust from overflowing the trough during mixing to protect the environment (this technique has obtained a patent). According to different requirements, we can add aggregate weighers, cement weighers, and water weighers.
Frequently Asked Questions
1. What materials are CO-NELE planetary concrete mixers suitable for?
CO-NELE planetary concrete mixers are specially designed for high mixing efficiency and even mixing. They are suitable for mixing high-performance concrete, refractory castables, mortar, and other specialized industrial mixtures.
2. What discharging options are available for the MP series mixers?
The discharging doors can be configured with hydraulic, pneumatic, or manual operation based on customer demands. Up to three discharging doors can be integrated, featuring specialized reliable sealing devices.
3. How does the patented mixing blade design extend its service life?
The mixing blades feature a patented parallelogram structure. When one side wears down, the blade can be rotated 180° for reuse, significantly extending the service life and reducing maintenance costs.
4. How does the skip hopper prevent dust overflow during feeding?
The skip hopper features a patented mechanism where the feeding door automatically opens during feeding and securely closes as the hopper descends, preventing dust from leaking and protecting the operating environment.
5. Can I observe the mixing process safely while the machine is running?
Yes, an observing port is integrated into the maintenance door, allowing operators to safely monitor the internal mixing condition without interrupting power.
6. Can weighing systems be added to CO-NELE planetary mixers?
Yes, depending on specific production requirements, aggregate weighers, cement weighers, and water weighers can be customized and integrated with the mixer setup.
