When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Planetary fly-cutter Concrete Mixer Type CMPS Manufacturer, Factory

1 / 2

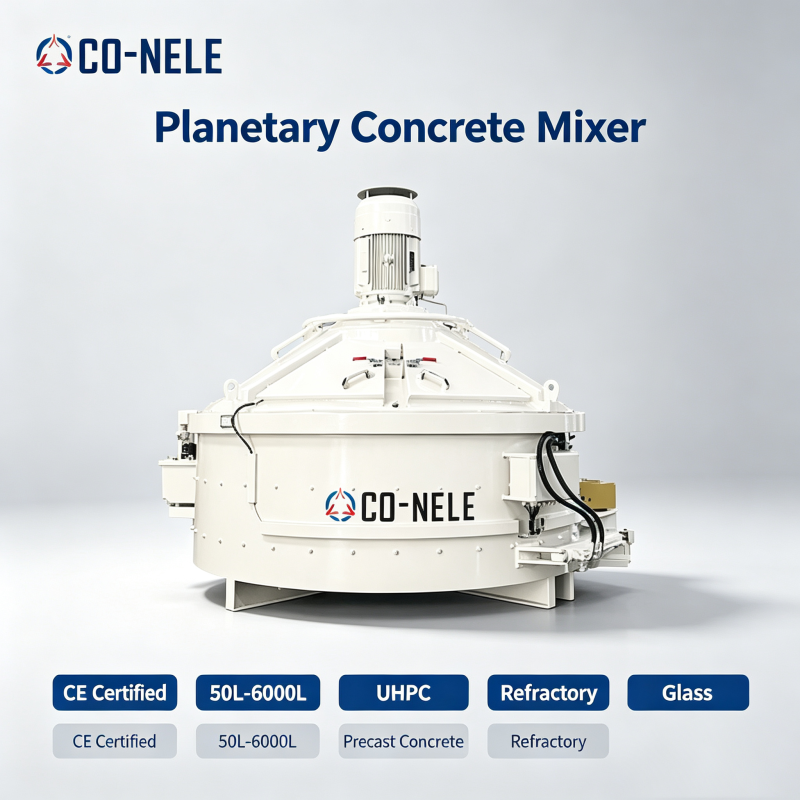

China Planetary fly-cutter Concrete Mixer Type CMPS Manufacturer, Factory

As a professional Planetary fly-cutter Concrete Mixer Type CMPS manufacturer, The CMPS planetary fly-cutter concrete mixer is independently developed and optimized based on traditional planetary mixers, integrating advanced fly-cutter technology and planetary mixing principles to achieve uniform mixing, stable operation and cost-saving performance, making it the preferred equipment for various high-demand mixing scenarios.

Send Inquiry

Product Description

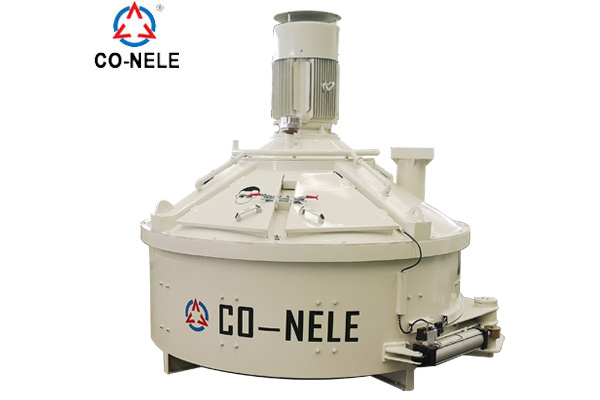

Planetary fly-cutter Concrete Mixer Type CMPS

The CMPS Planetary fly-cutter Concrete Mixer is a high-performance mixing device with independent intellectual property rights, specially designed for solving the problems of uneven mixing, low efficiency and high maintenance cost of powdery, granular and viscous materials such as concrete, refractory materials and ceramics. By combining planetary rotation and high-speed fly-cutter auxiliary mixing, the mixer realizes 360° dead-angle-free mixing, ensuring that materials reach high homogeneity in a short time, while effectively avoiding material agglomeration and improving product quality and production efficiency comprehensively.

⚙️ Planetary Fly-Cutter Concrete Mixer

With compact structure, advanced transmission system and optimized lubrication design, the CMPS type mixer is suitable for both laboratory R&D and large-scale industrial production lines, and has been exported to more than 80 countries and regions around the world, winning wide recognition from industry customers.

Core Features & Technical Advantages

Advanced Planetary Fly-cutter Mixing Technology: The mixer adopts a composite motion mode of planetary revolution and self-rotation, with an infinitely non-cyclic mixing track, which ensures that the mixing blades cover the entire inner wall of the mixing drum, eliminating mixing dead angles completely. On this basis, a set of high-speed auxiliary fly-cutter device is added, which is especially suitable for mixing powdery materials, effectively preventing material agglomeration and making the mixing more uniform. The mixing blades are designed with a parallelogram structure, which can be turned 180° for reuse, greatly extending the service life of the blades and reducing the replacement cost of wearing parts.

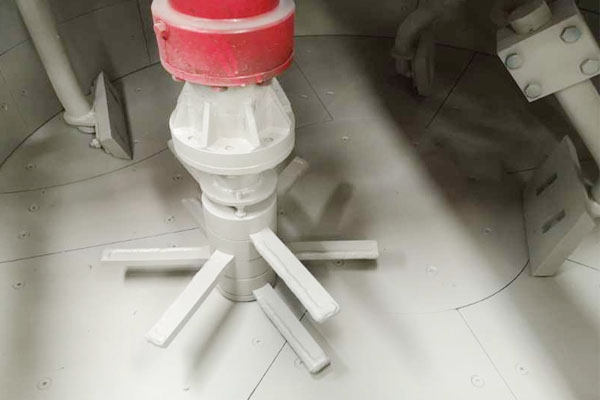

✦ Fly-Cutter Mixing Device

Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Mixing blades feature a patented parallelogram structure, which can be turned 180° for reuse to increase service life. Specialized discharge scraper has been designed to increase productivity.

Planetary Fly-Cutter Concrete Mixer is an extraordinary form of planetary mixer, mainly used for high-speed mixed powder. The speed of the fast flying knife device reaches 200 rpm, and the mass of material is quickly dissipated.

Technical Specifications of Planetary fly-cutter Concrete Mixer Type CMPS

Model	Output Capacity (L)	Input Capacity (L)	Output Weight (kg)	Mixing Power (kW)	Discharging Power (kW)	Planet/Mixing Arm	Weight (kg)	Dimension (L×W×H mm)
CMPS 50	50	75	120	3	Pneumatic/Hydraulic (Optional)	1/2	700	950×790×1200
CMPS 100	100	150	240	5.5	Pneumatic/Hydraulic (Optional)	1/2	1100	1670×1460×1450
CMPS 250	250	375	600	11	Pneumatic/Hydraulic (Optional)	1/2	1500	1860×1650×1780
CMPS 500	500	750	1200	18.5	Pneumatic/Hydraulic (Optional)	1/2	2400	2230×2080×1880
CMPS 1000	1000	1500	2400	37	Pneumatic/Hydraulic (Optional)	2/4	6200	2890×2602×2220
CMPS 2500	2500	3750	6000	90	Pneumatic/Hydraulic (Optional)	3/3	11000	Customized

Applicable Industries & Scenarios

The Planetary fly-cutter Concrete Mixer Type CMPS is widely used in various industries that require high-precision and uniform mixing, including but not limited to:

✓ Precast concrete industry (prefabricated components, concrete blocks, etc.)
✓ High-performance concrete (HPC) and ultra-high performance concrete (UHPC) production
✓ Refractory materials, ceramics and glass industry
✓ Chemical industry (powder mixing, granulation, etc.)
✓ Construction engineering (on-site mixing of dry-hard concrete, plastic concrete, etc.)
✓ Laboratory R&D and small-batch production

Frequently Asked Questions (FAQ)

? What makes the CMPS mixer different from standard planetary mixers?

The CMPS model incorporates a high-speed auxiliary fly-cutter device operating up to 200 rpm. This specifically targets raw materials prone to clumping, ensuring rapid dispersion of powder and high homogeneity without dead angles.

? How does the patented parallelogram mixing blade reduce costs?

The mixing blades feature a unique parallelogram structure that allows them to be rotated 180° for reuse once worn, effectively doubling their operating lifespan and significantly lowering wear-part replacement expenses.

? What industries benefit most from using the CMPS mixer?

It is ideally suited for industries requiring high-precision mixing, such as UHPC/HPC concrete production, precast components, refractory products, advanced ceramics, glass manufacturing, and specialized chemical powder processing.

? What discharge options are available for the CMPS series?

The CMPS series offers optional Pneumatic or Hydraulic discharge systems, combined with a specialized discharge scraper to maximize output speed and operational efficiency.

? Are custom sizes available for large-scale production requirements?

Yes, models ranging from CMPS 50 (laboratory/pilot scale) up to CMPS 2500 offer customizable dimensions and configurations tailored to specific industrial production line requirements.
