China Lab-scale Granulators type CEL10 Factory, Machine

1 / 3

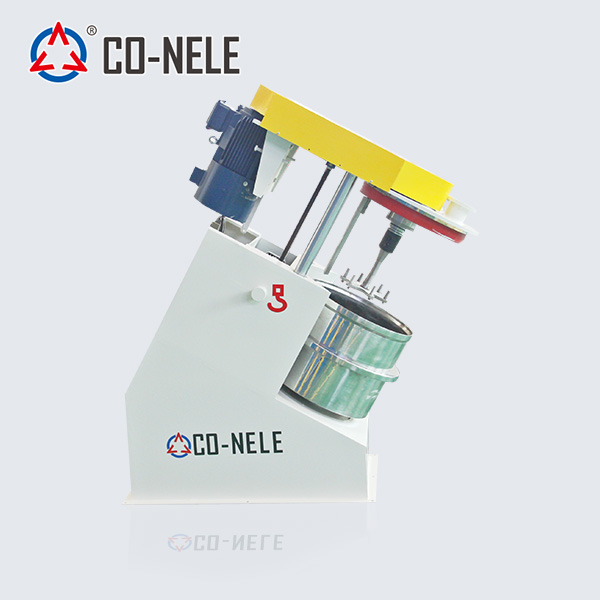

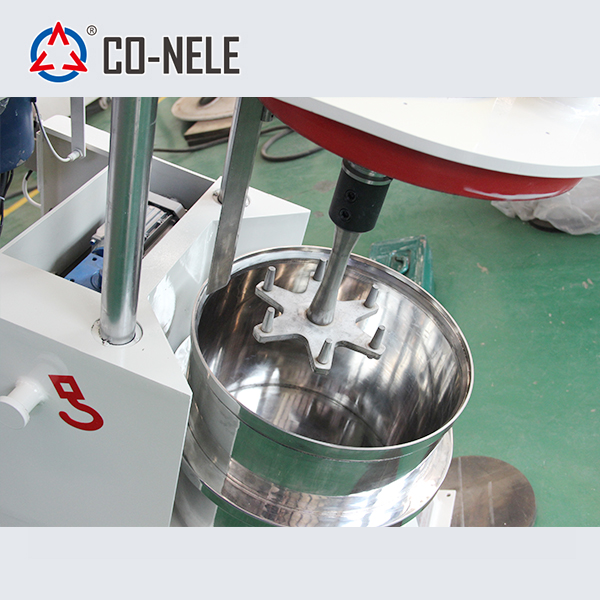

China Lab-scale Granulators type CEL10 Factory, Machine

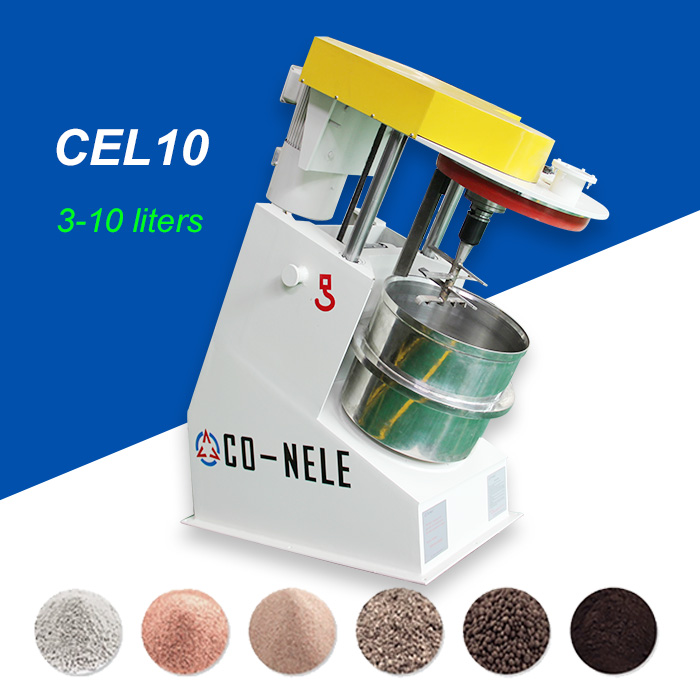

The laboratory mixers of the CEL series are available in sizes of 1 to 10 liters. They have all the features of the multifunction CO-NELE mixing system and can be used for a great variety of challenging processing applications, such as mixing, granulating, coating, kneading, dispersing, dissolving, defibrating, and many more.

Send Inquiry

Product Description

CEL10 Laboratory Scale Granulators Advantages

Versatile

Different consistencies can be processed in the mixer, from dry to plastic and pasty.

Fast & Effective

High mixing qualities are obtained already after short mixing times.

Limitless Scale-Up

The linear transfer of the test results to industrial scale is possible.

System Overview: Flexible high-performance mixing system for challenging tasks in the fields of research, development and small-scale production. Process materials from dry to plastic and pasty can be processed.

CEL10 Laboratory Scale Granulators Applications

The multi-functional mixing system can be used for many different applications, e.g. for mixing, granulating, coating, kneading, dispersing, dissolving, defibering and many more.

Industrial scale-up of test results is possible.

Type of Laboratory Granulators

Type	Granulation (L)	Pelletizing Disc	Paddle	Discharging
CEL01	0.3-1	1	1	Mixing barrel lifting and manual unloading
CEL05	2-5	1	1	Mixing barrel lifting and manual unloading
CEL10	5-10	1	1	Mixing barrel lifting and manual unloading
CR02	2-5	1	1	Automatically flip the mixing barrel to unload
CR04	5-10	1	1	Automatically flip the mixing barrel to unload
CR05	12-25	1	1	Automatically flip the mixing barrel to unload
CR08	25-50	1	1	Automatically flip the mixing barrel to unload

CONELE Lab-scale Granulators perform mixing and granulating/pelletizing in a single machine.

Compatible Industry Materials & Applications

Ceramics

Molding compounds, molecular strainers, proppants, varistor compounds, dental compounds, cutting ceramics, grinding agents, oxide ceramics, grinding balls, ferrites, etc.

Building Materials

Porosity agents for bricks, expanded clay, pearlite, etc.

Glass

Glass powder, carbon, lead glass mixtures, etc.

Metallurgy

Zinc and lead ore, aluminum oxide, silicon carbide, iron ore, etc.

Agricultural Chemistry

Lime hydrate, dolomite, phosphate fertilizer, peat fertilizer, mineral compounds, sugar beet seeds, etc.

Environmental Protection

Cement filter dusts, fly ash, slurries, dusts, lead oxide, etc.

Advanced Powders

Carbon black, metal powder, zirconia.

Frequently Asked Questions (FAQ)

Q: What material consistencies can the CEL10 Laboratory Scale Granulator process?

The CEL10 granulator is highly versatile and capable of processing materials ranging from dry powders to plastic and pasty consistencies.

Q: Can laboratory test results be scaled up to industrial production?

Yes, CONELE laboratory granulators offer linear transfer capabilities, allowing test results to be directly scaled up to industrial production without limit.

Q: What processes can be performed in a single CONELE lab granulator machine?

This multifunctional system can handle mixing, granulating, pelletizing, coating, kneading, dispersing, dissolving, defibering, and more within a single unit.

Q: What is the difference between CEL series and CR series models?

CEL series models (such as CEL01, CEL05, CEL10) feature manual unloading by lifting the mixing barrel, while CR series models (CR02 to CR08) feature an automated flipping mechanism for discharge.

Q: How fast does the mixing process achieve optimal quality?

Thanks to its high-performance mixing design, exceptional mixing quality is achieved within short mixing times.
