When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

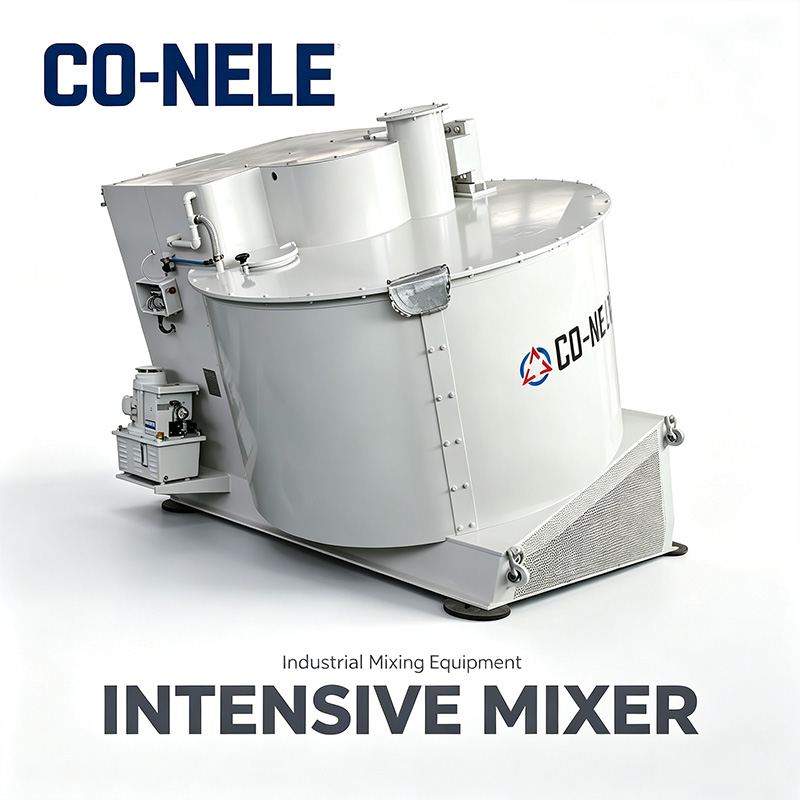

China Inclined Intensive mixer Manufacturer, Factory

1 / 2

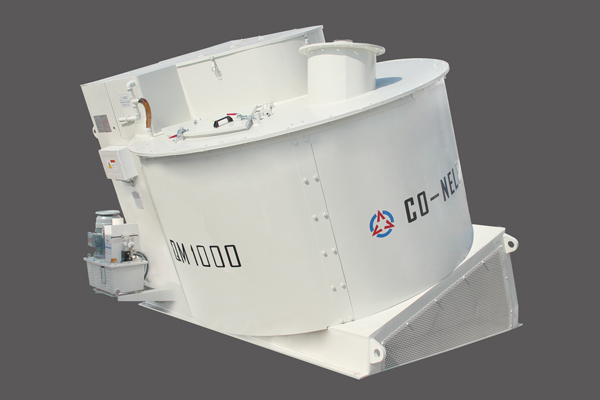

China Inclined Intensive mixer Manufacturer, Factory

Send Inquiry

Product Description

Technical Specifications

Specification
Item Name	Intensive mixer
Model number	CQM100	CQM150	CQM250	CQM330	CQM500	CQM750	CQM1000	CQM1500	CQM2000
Technical Data
Input capacity (L)	150	225	375	500	750	1125	1500	2250	2400
Out capacity (L)	100	150	250	330	500	750	1000	1500	2000
Out mass (KG)	120	180	300	400	600	900	1200	1800	2400
Main planet (nr)	1	1	1	1	1	1	1	1	2
Paddle (nr)	1	1	1	1	1	1	1	1	2

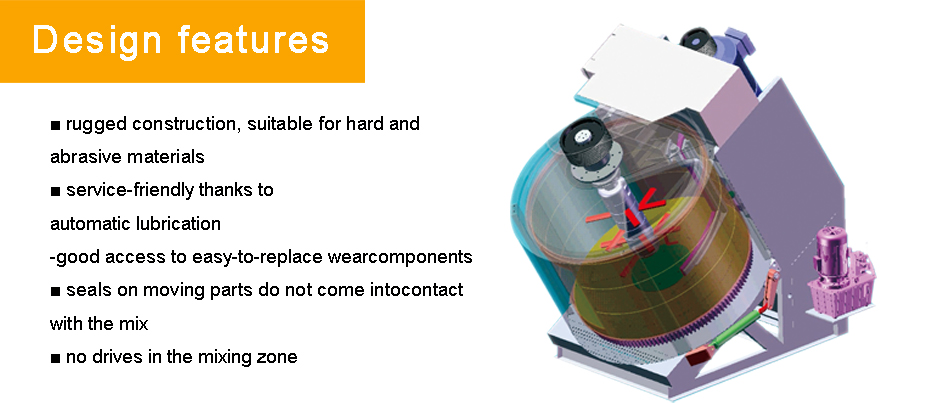

Intensive Mixer Advantages

Optimal, constant mix quality

Gentle treatment of mix

Efficient use of energy

Economical due to short mixing cycles resulting in high throughput rates

Flexible and adaptable to raw material consistency and processing objectives

A demixing effect is avoided

High self-cleaning effect

Complete discharging

Frequently Asked Questions (FAQ)

What is the primary function of an Intensive Mixer?

The Intensive Mixer is designed to achieve optimal, constant mix quality through short mixing cycles while offering gentle material treatment and highly efficient energy utilization.

What range of capacity models are available in the CQM series?

The CQM series ranges from CQM100 to CQM2000, with input capacities from 150L up to 2400L and output capacities from 100L up to 2000L to fit various production needs.

How does the mixer prevent demixing of materials?

Through its specialized mixing mechanism, the machine avoids demixing effects, ensuring consistent material homogeneity throughout the process.

How many main planets and paddles are configured across models?

Models from CQM100 to CQM1500 are configured with 1 main planet and 1 paddle, while the high-capacity CQM2000 features 2 main planets and 2 paddles for enhanced output performance.

Is the machine easy to clean and discharge?

Yes, the equipment is designed with a high self-cleaning effect and enables complete discharging to minimize material residue and optimize turnaround time.
