When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

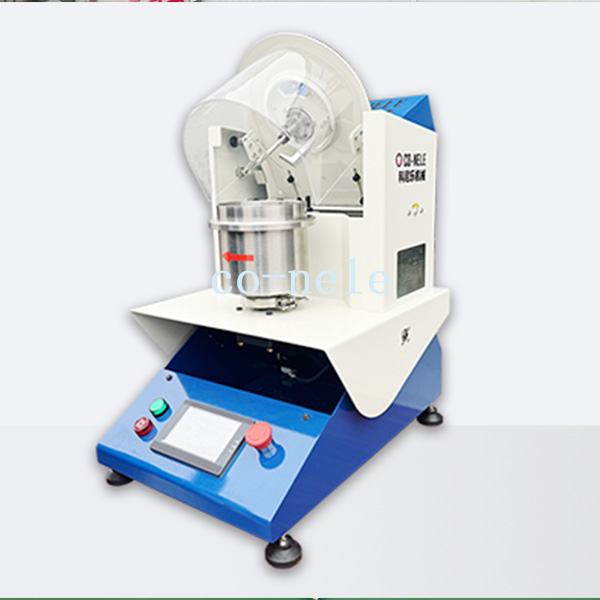

China CEL01 Intensive Lab Mixer Manufacturer Factory High Efficiency Laboratory Powder Batch Mixing Machine Wholesale

CEL01 Intensive Lab Mixer Features

Excellent mixing effect

Through the unique mixing principle, the material can be subjected to multiple effects such as diffusion, self-flow, strong shearing, etc., with high mixing uniformity, which can effectively avoid material gravity segregation and will not destroy the material's own properties.

Efficient and energy-saving

Short mixing time and high processing efficiency. Compared with similar equipment, it has lower energy consumption while achieving the same mixing effect.

Flexible and convenient

Reliable loading rate and rich optional volume can meet the needs of different experimental scales. The equipment has a delicate appearance, flexible structural design, convenient movement of the whole machine, simple operation, and is convenient for laboratory personnel to use, which helps to improve the experimental processing efficiency.

Diverse functions

It has multiple functions such as mixing, granulation, coating, kneading, dispersion, dissolution, and defibration. It can be used for the processing of various industrial raw materials and is suitable for research and development and small-scale production.

Technical Parameters

CEL01 is a small laboratory mixer with a capacity of usually 1 liter. The motor power it is equipped with is relatively small to meet the use requirements in laboratory environments. The equipment has relatively small dimensions and light weight, making it easy to move and place in the laboratory.

Application Areas

CEL01 is widely used in laboratories in the chemical, refractory, ceramic, and new material industries. For example, in the ceramic industry, it can be used to mix raw materials for the preparation of high-performance ceramic materials; in the refractory field, it can meet the high-uniformity mixing requirements and provide high-quality mixed raw materials for the research and development of refractory materials.

CEL01 Intensive Lab Mixer Technical Specifications

Model	CEL01
Mixed Output Capacity	1L
Mixing Power (W)	400
Mixing Drum Power (W)	120
Discharge Method	Manual

Frequently Asked Questions (FAQ)

Q: What is the output capacity of the CEL01 intensive lab mixer?

The CEL01 mixer has a mixed output capacity of 1 liter, making it specifically tailored for laboratory testing and small-scale experimental development.

Q: Which industries can benefit from using the CEL01 lab mixer?

It is widely applicable in research laboratories within the chemical, refractory, ceramic, and new material industries for high-uniformity raw material preparation.

Q: What functional capabilities does the CEL01 mixer provide?

Beyond standard mixing, the machine supports multiple industrial processing functions including granulation, coating, kneading, dispersion, dissolution, and defibration.

Q: What are the power specifications for the CEL01 intensive mixer?

The equipment runs efficiently with a mixing power of 400W and a mixing drum power of 120W, optimizing energy usage for laboratory setups.

Q: How does the CEL01 ensure high mixing uniformity?

It applies a unique mixing mechanism involving diffusion, self-flow, and strong shearing effects. This prevents material gravity segregation without destroying intrinsic material properties.
