When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Intensive Mixer Factory High Efficiency Industrial Intensive Mixer Machine Manufacturer Wholesale Supplier

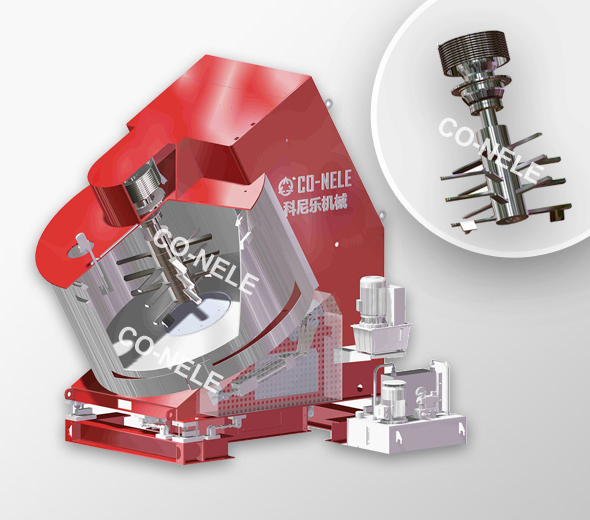

Intensive Mixer Mixing Principle

CO-NELE CR intensive mixer applies counter-current mixing principle which provides optimal homogeneous mixture in shortest time.

The eccentrically assembled multi-level high speed mixing tools rotating in clockwise direction provides high intensity mixing.

The inclined arranged rotating mixing pan in anti-clockwise tumbles the material, provides mixing effect in vertical and horizontal and bring the materials to high speed mixing tools.

The multi-purpose functional tool deflects the materials, prevent materials from sticking to the mixing pan bottom and wall and help to discharge.

The rotating speed of mixing tools and mixing pan could both run at various speeds for specific mixing process, in the same process or different batches.

Function of Intensive Mixer

The multi-functional mixing system can be used for many different applications, e.g. for mixing, granulating, coating, kneading, dispersing, dissolving, defibering and many more.

Advantages of the Mixing System

The advantages for the mixed product:

Higher Tool Speeds

Can be used for example to:

Optimally solubilize fibers
Completely pulverize pigments
Optimize mixing of fine fractions
Manufacture suspensions with a high solid content

Medium Tool Speeds

Are used to:

Achieve mixtures with a high mixture quality

Lower Tool Speeds

At lower speeds:

Lightweight additives or foams can be gently added to the mixture

Mixer Batchwise

In contrast to other mixing systems, the throughput rate and mixing intensity of CO-NELE CR intensive batch mixers can be adjusted independently of each other.

The mixing tool can run at variable speeds from fast to slow
This allows the power input into the mixture to be adapted to the specific mix
Hybrid mixing processes are made possible e.g. slow–fast–slow

Higher Tool Speeds

Can be used for example to:

Optimally solubilize fibers
Completely pulverize pigments, optimize mixing of fine fractions
Manufacture suspensions with a high solid content

Medium Tool Speeds

Medium tool speeds are used to achieve mixtures with a high mixture quality

Low Tool Speeds

At low tool speeds, lightweight additives or foams can be gently added to the mixture

The mixer mixes without separating the mixture; 100% material agitation during each revolution of the mixing pan. Eirich intensive batch mixers are available in two series with a usable volume ranging from 1 to 12,000 liters.

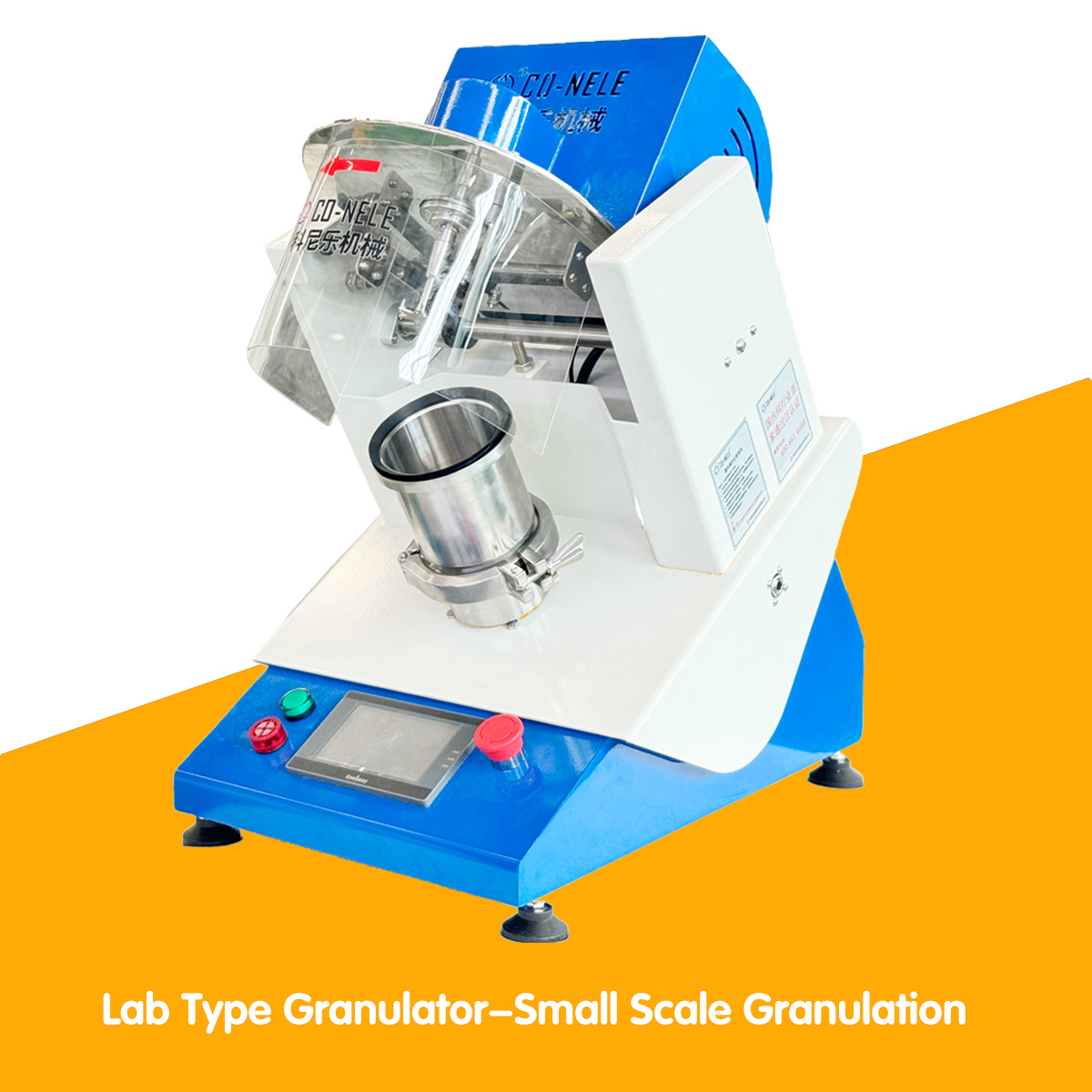

Misturadores Intensivos de Laboratório CEL1

Features

High performance mixing effect, consistent high quality homogeneous mixture batch after batch
Compact design, easy to install, suitable for new plant and improving the existing production line
Robust construction, low wear, built to last, long service life

Intensive Mixer Application Industry

Ceramics

Molding materials, molecular sieves, proppants, varistor materials, dental materials, ceramic tools, abrasive materials, oxide ceramics, grinding balls, ferrites, etc.

Building Materials

Porous media of bricks, expanded clay, perlite, etc., refractory ceramsite, clay ceramsite, shale ceramsite, ceramsite filter material, ceramsite brick, ceramsite concrete, etc.

Glass

Glass powder, carbon, leaded glass frit, waste glass slag, etc.

Metallurgy

Zinc and lead ore, alumina, carborundum, iron ore, etc.

Chemical

Slaked lime, dolomite, phosphate fertilizers, peat fertilizers, mineral materials, sugar beet seeds, fertilizers, phosphate fertilizers, carbon black, etc.

Environmental Friendly

Cement filter dust, fly ash, sludge, dust, lead oxide, fly ash, slag, dust, etc.

Other materials: Carbon black, metal powder, zirconia

Intensive Mixer Technical Parameters

Model	Mixing volume / L	Discharge method
CEL1s	0.1-0.5	Manually disassembled type
CEL01	0.2-1	Manually disassembled type
CEL1plus	0.8-2	Manually disassembled type
CEL05	3-8	Lifting type
CEL10	5-15	Lifting type
CR02F	3-8	Tilting type
CR04F	5-15	Tilting type
CR05F	15-40	Tilting type
CR08F	50-75	Tilting type
CR09F	100-150	Tilting type
CR05	15-40	Bottom center
CR08	40-75	Bottom center
CR09	100-150	Bottom center
CRV09	150-225	Bottom center
CR11	150-250	Bottom center
CRV11	250-375	Bottom center
CR12	250-350	Bottom center
CRV12	350-450	Bottom center
CR15	500-750	Bottom center
CRV15	600-900	Bottom center
CR19	750-1125	Bottom center
CRV19	1000-1500	Bottom center
CR22	1000-1500	Bottom center
CRV22	1250-1800	Bottom center
CR24	1500-2250	Bottom center
CRV24	2000-3000	Bottom center
CR29	2500-4500	Bottom center
CRV29	3500-5250	Bottom center
CR33	3500-5250	Bottom center
CRV33	4500-7000	Bottom center

Frequently Asked Questions (FAQ)

Q1: What is the mixing principle of the CO-NELE CR intensive mixer?

The mixer applies a counter-current mixing principle combining eccentrically assembled multi-level high-speed mixing tools with an inclined rotating mixing pan to provide optimal homogeneous mixtures in the shortest time.

Q2: What functions can the intensive mixer perform?

It is a multi-functional mixing system suitable for mixing, granulating, coating, kneading, dispersing, dissolving, defibering, and many other processing applications.

Q3: Can the tool speed and mixing intensity be adjusted independently?

Yes. In contrast to traditional systems, the throughput rate and mixing intensity can be adjusted independently of each other, allowing for hybrid mixing processes (such as slow–fast–slow speed programs).

Q4: What capacity and model options are available for batch mixers?

The batch mixers are available in two series with usable mixing volumes ranging from 0.1 liters up to 12,000 liters, accommodating lab-scale to large industrial needs.

Q5: Which industries commonly use intensive mixers?

Intensive mixers are widely used in ceramics, building materials, glass production, metallurgy, chemical processing, environmental waste treatment, and powder processing industries.
