China Granulator Machine For Wet&Dry Granulation Manufacturer, Machine

1 / 3

China Granulator Machine For Wet&Dry Granulation Manufacturer, Machine

Intensive mixer/granulator is a New type Pelletizing technology ,that enables fine mixing, granulation and coating in a single machine. it is used in chemical, ceramic,Metal Powder, Biomass,refractory, fertilizers and desiccant industries.

Send Inquiry

Product Description

Inclined intensive mixer is a special technology that enables fine mixing, granulation and coating in a single machine. Due to these advantages, it is widely used especially in chemical, ceramic, refractory, fertilizers and desiccant industries.

Advantages of the Inclined intensive mixer -CoNele

Capable of mixing dry powders, pastes, slurries, and liquids.

The special inclined design provides homogeneous mixing.

Intensive mixer technology achieves the desired product in less time.

Process optimization can be achieved by adjusting pan and rotor speeds.

The pan can be operated in both directions, depending on the process.

The granulation process can be performed in the same machine by changing the mixing tip.

It provides ease of operation in industrial plants with its under-mixer discharge system.

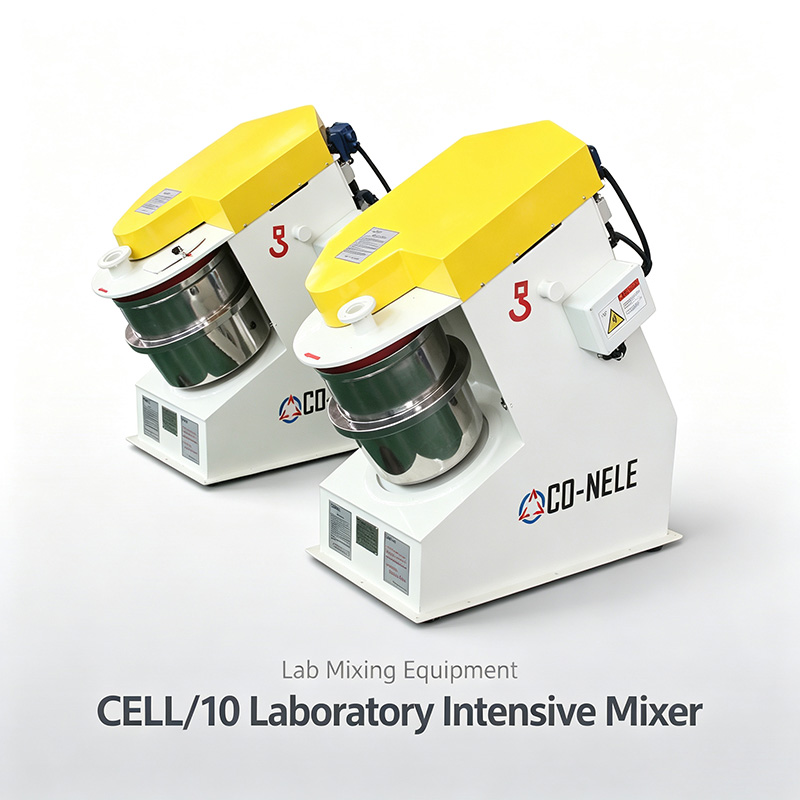

Laboratory Granulation Equipment-CONELE

The laboratory granulator is a laboratory-scale basic machine used by the R&D center for granulation process and product development. It can produce granules of various powdered materials. The granulator can be used for trial production or batch production in laboratories or scientific research institutions.

Laboratory Scale Granulator

We have 7 different laboratory-scale granulators: CEL01 /CEL05/CEL10/CR02/CR04/CR05/CR08

The laboratory-scale granulator can handle very small batches (as small as 100 ml) and larger batches (50 liters) to meet the different needs of the R&D stage.

CO-NELE Laboratory Mixing Granulator Core Functions and Processes:

The granulator can fully simulate the process steps of the production equipment on a laboratory scale, including:

Mixing Granulation Coating Vacuum Heating Cooling Fibrization-

Granulation in Intensive Mixer CoNele

Inclined intensive mixer/granulators can handle a wide variety of powdered raw materials. This machine facilitates the granulation of different materials used across various industries. Here are some powder raw materials that can be used in an CoNele granulator:

Ceramic Powders: Porcelain, ceramics and refractory materials

Metal Powders: Aluminum, iron, copper and their alloys

Chemical Substances: Chemical fertilizers, detergents, chemical reactants

Pharmaceutical Materials: Active ingredients, excipients

Food Products: Tea, coffee, spices

Construction: Cement, gypsum

Biomass: Compost, biochar

Special products: Lithium-ion compounds, graphite compounds

Granulator Technical Parameters

Intensive Mixer	Granulation/L	Pelletizing disc	Heating	Discharging
CEL01	0.3-1	1	-	Manual unloading
CEL05	2-5	1	-	Manual unloading

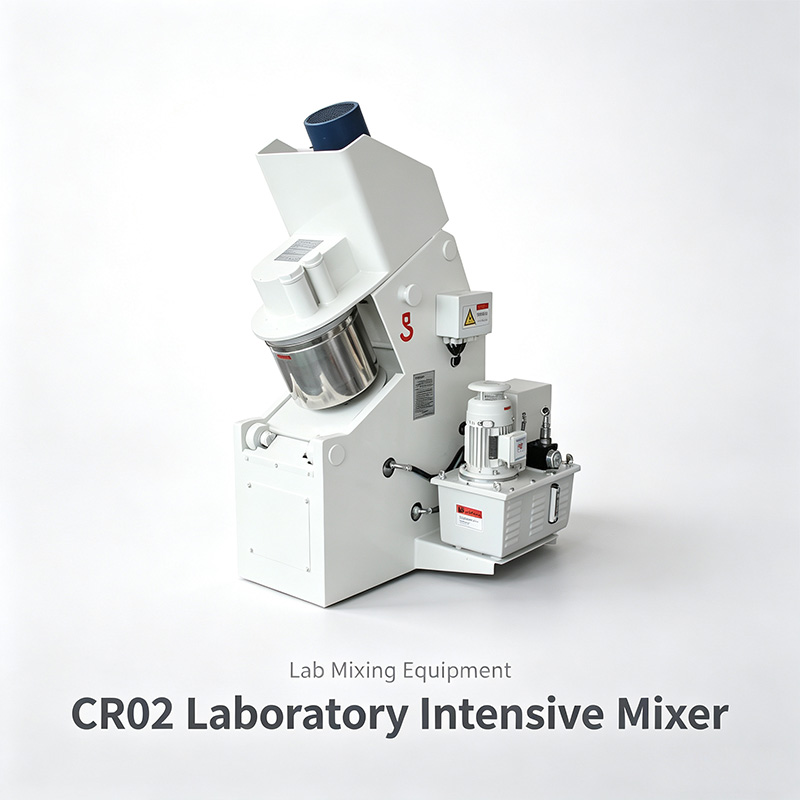

CR02	2-5	1	Heating	Cylinder flip discharge
CR04	5-10	1	Heating	Cylinder flip discharge
CR05	12-25	1	Heating	Cylinder flip discharge
CR08	25-50	1	Heating	Cylinder flip discharge
CR09	50-100	1	Heating	Hydraulic center discharge
CRV09	75-150	1	Heating	Hydraulic center discharge
CR11	135-250	1	Heating	Hydraulic center discharge
CR15M	175-350	1	Heating	Hydraulic center discharge
CR15	250-500	1	Heating	Hydraulic center discharge
CRV15	300-600	1	Heating	Hydraulic center discharge
CRV19	375-750	1	Heating	Hydraulic center discharge
CR20	625-1250	1	Heating	Hydraulic center discharge
CR24	750-1500	1	Heating	Hydraulic center discharge
CRV24	100-2000	1	Heating	Hydraulic center discharge

Frequently Asked Questions (FAQ)

Q1 What is an inclined intensive mixer used for?

An inclined intensive mixer is a specialized technology that combines fine mixing, granulation, and coating into a single machine. It is widely applied across the chemical, ceramic, refractory, fertilizer, and desiccant industries.

Q2 What key advantages does the CoNele intensive mixer offer?

Key advantages include the capability to mix dry powders, pastes, slurries, and liquids, homogeneous mixing via a special inclined design, faster production times, adjustable pan/rotor speeds, bi-directional pan operation, and an under-mixer discharge system.

Q3 What batch capacities can the laboratory scale granulators handle?

Laboratory scale granulators can process batch sizes ranging from as small as 100 ml up to 50 liters, meeting diverse R&D trial and batch production needs.

Q4 What core processes can be performed in the CO-NELE laboratory mixing granulator?

The equipment can fully simulate production-scale processes including mixing, granulation, coating, vacuum handling, heating, cooling, and fibrization.

Q5 What types of raw materials can be granulated with CoNele mixers?

It processes ceramic powders, metal powders, chemical substances, pharmaceutical ingredients, food products (tea, coffee, spices), construction materials (cement, gypsum), biomass, and specialty products like lithium-ion and graphite compounds.

Q6 How do the discharge and heating options vary across different granulator models?

Smaller lab models (CEL01, CEL05) feature manual unloading without heating. Mid-range models utilize cylinder flip discharge with heating, while larger industrial models employ hydraulic center discharge systems with heating capability.
