China Diamond Powder Granulator Manufacturer, Factory

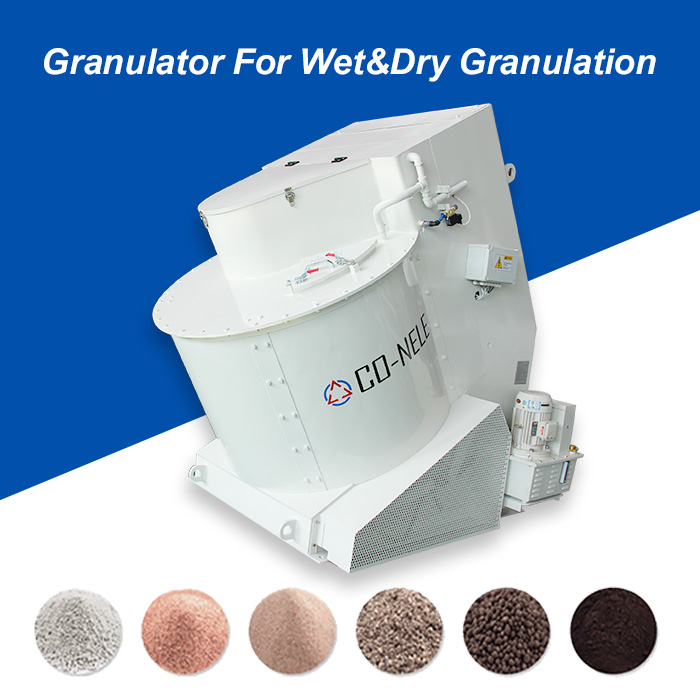

CONELE specializes in the production of granulators for diamond micropowder and CBN superabrasives. We offer both dry and wet processes to address issues such as poor powder flowability and dust generation, while also improving bulk density and consistency.

Send Inquiry

Product Description

Diamond Powder Granulator: Core Equipment for Improving Superabrasive Quality and Efficiency

CONELE develops high-performance diamond powder granulators specifically for the superabrasive industries, including diamond and cubic boron nitride (CBN). Through our advanced dry-process three-dimensional mixing and granulation technology, we help customers transform fine powders into dense granules with high sphericity, excellent fluidity, and uniform particle size. This significantly improves subsequent molding and sintering processes, maximizing product value.

Why is diamond powder granulated?

Diamond micropowder, when used directly in the production of grinding wheels, discs, cutting tools, and other products, presents numerous challenges:

Dust Generation: Poses a health hazard to employees and results in raw material waste.

Poor Flowability: Impacts the uniformity of automated forming feeds, resulting in inconsistent product density.

Low Tap Density: Results in numerous voids between powders, impacting sintered compaction and ultimate strength.

Segregation: Mixed powders of varying particle sizes tend to separate during transport, impacting consistency.

CONELE's granulation equipment perfectly addresses these challenges and is a key step toward achieving automated, high-quality production.

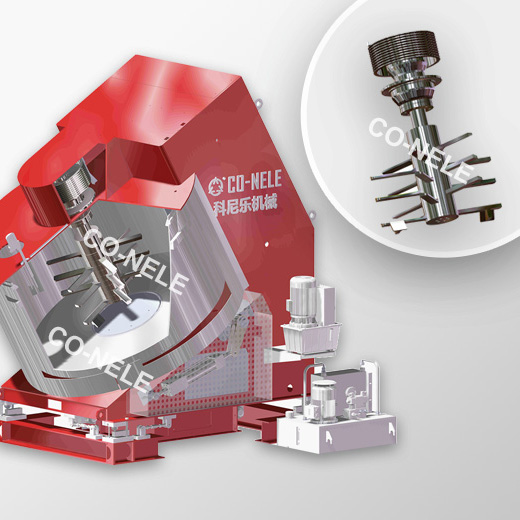

Core Principle of the Inclined Intensive Mixing Granulator

The operating principle of the inclined intense mixing granulator is based on the synergistic effect of an inclined mixing disc (barrel) and a specially designed rotor (agitator). It achieves uniform mixing of materials (including powders and liquid binders) in a short period of time through a combination of convective mixing, shear mixing, and diffusion mixing. Mechanical forces aggregate the materials into the desired granules.

Main Components of a Granulator

The Inclined Mixing Disc (Barrel): A container with a disc-shaped bottom, tilted at a fixed angle (typically 40°-60°) to the horizontal. This tilted design creates complex material motion paths.

The Rotor (Agitator): Located at the bottom of the mixing disc, driven by a motor at high speed. Its plow or blade shape provides powerful shearing, stirring, and spreading.

The Scraper (Sweeper): Attached to the rotor or frame, adhering closely to the inner wall. It continuously scrapes material off walls and re-injects it into the mixing area to prevent clumping.

Drive System: Provides robust and reliable power for the rotor and mixing disc.

Liquid Addition System: Precisely and evenly applies liquid binders to the materials being mixed.

Granulator Models and Technical Specifications

We offer a variety of granulator specifications to suit diverse needs, from laboratory research and development to large-scale industrial production. Experimental-grade small granulators and large-scale granulator production lines meet functions of mixing, granulation, coating, heating, vacuuming, and cooling.

Intensive Mixer	Granulation (L)	Pelletizing Disc	Discharging Type
CEL01	0.3-1	1	Manual unloading
CEL05	2-5	1	Manual unloading

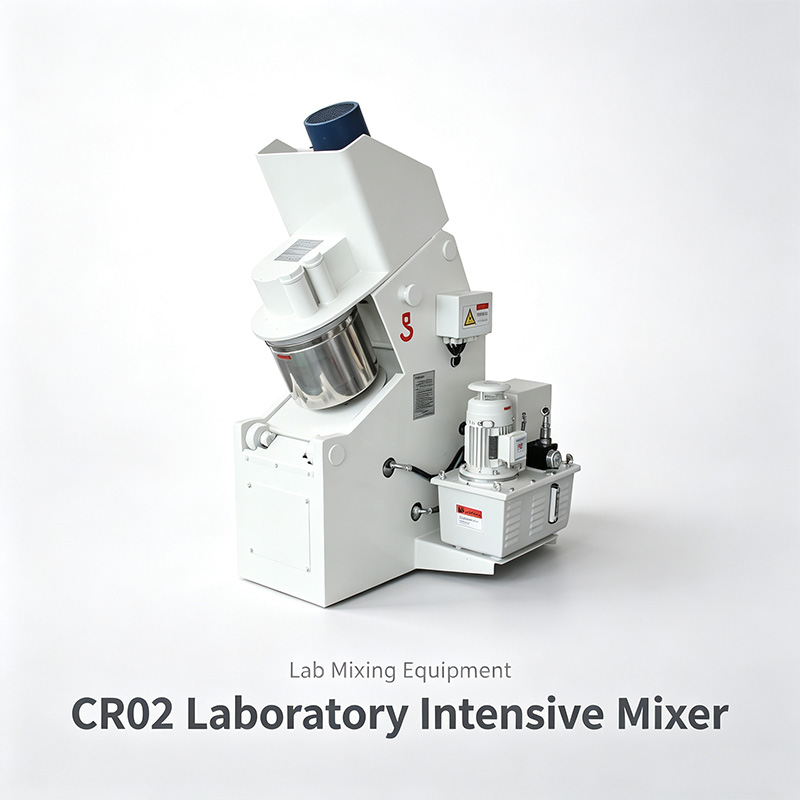

CR02	2-5	1	Cylinder flip discharge
CR04	5-10	1	Cylinder flip discharge
CR05	12-25	1	Cylinder flip discharge
CR08	25-50	1	Cylinder flip discharge
CR09	50-100	1	Hydraulic center discharge
CRV09	75-150	1	Hydraulic center discharge
CR11	135-250	1	Hydraulic center discharge
CR15M	175-350	1	Hydraulic center discharge
CR15	250-500	1	Hydraulic center discharge
CRV15	300-600	1	Hydraulic center discharge
CRV19	375-750	1	Hydraulic center discharge
CR20	625-1250	1	Hydraulic center discharge
CR24	750-1500	1	Hydraulic center discharge
CRV24	1000-2000	1	Hydraulic center discharge

Diamond Powder Granulator Core Advantages and Customer Value

Excellent Granule Quality

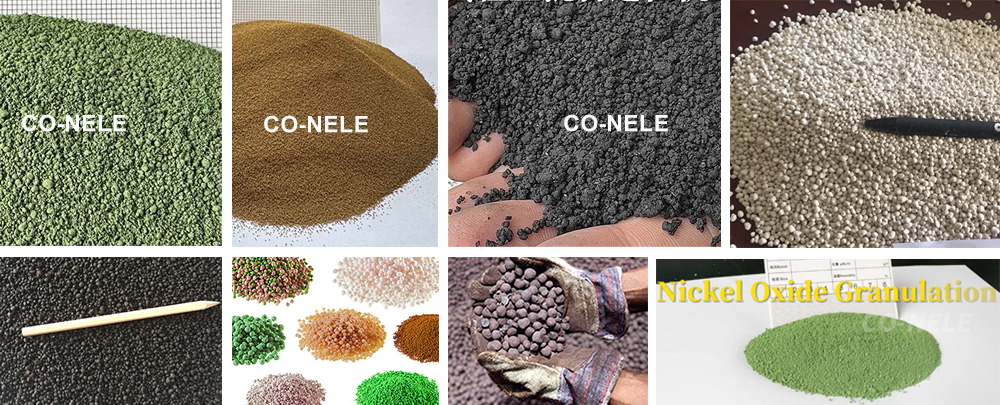

Sphericity >90% ensures unparalleled flowability.
Uniform particle size and narrow distribution range ensure consistent performance.
Moderate strength prevents transport breakage and facilitates uniform decomposition during sintering.

Intelligent Control System

PLC touch screen with one-touch operation and process parameter storage/recall.
Real-time monitoring of speed, time, and temperature ensures strict batch stability.

Material & High Durability

All material contact parts feature stainless steel or wear-resistant lining to prevent iron ion contamination and extend service life.

Comprehensive Solutions

Full-process support from process exploration and parameter optimization to after-sales maintenance.

Granulator Applications

This equipment is widely used in all applications requiring high-precision granulation of superhard material powders:

Diamond / CBN grinding wheel manufacturing
Diamond saw blade and cutter head preparation
Granulating powder for polishing abrasive pastes
Geological drill bit and PCBN / PCD composite sheet substrate preparation

Frequently Asked Questions (FAQs)

Q1 What is the granular strength of diamond powder after granulation? Does it affect sintering?

A: We can precisely control granular strength by adjusting the binder type and dosage. The granule strength is sufficient for normal transportation and will decompose smoothly during the initial sintering process without any negative impact on the final product.

Q2 What is the approximate yield from powder to granules?

A: Our equipment is engineered to minimize material loss. Dry granulation typically achieves a yield over 98%, while wet granulation (due to drying) yields approximately 95%-97%.

Q3 Can you provide a pilot prototype for trial testing?

A: Yes. We operate a dedicated laboratory facility (1L-50L capacity). Customers are welcome to provide raw materials for free granulation trials to verify performance firsthand.

Q4 Which superabrasive materials can be processed with this granulator?

A: The granulator is optimized for superhard materials including synthetic diamond micropowder, cubic boron nitride (CBN), and associated ceramic or metallic matrix powders.

Q5 How does the granulator prevent iron contamination during processing?

A: All material contact surfaces are built using high-grade stainless steel or customized wear-resistant ceramic/polyurethane linings to completely eliminate iron ion contamination.

Q6 What capacity options are available for industrial scaling?

A: We provide scalable equipment options ranging from laboratory R&D units (0.3L–5L) up to large industrial continuous batch systems with capacities reaching 2000L.
