China Lab-scale Granulators Type CEL01 Factory, Machine

1 / 1

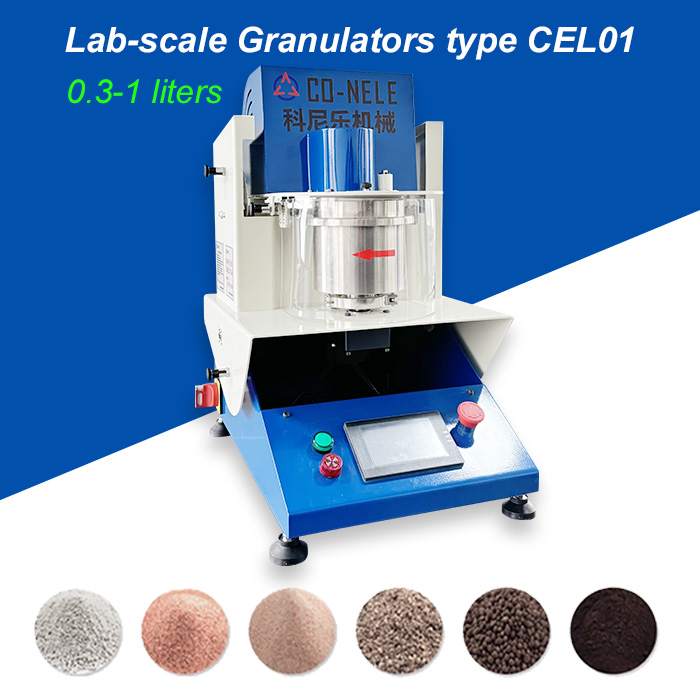

China Lab-scale Granulators Type CEL01 Factory, Machine

CO‑NELE Lab‑scale Granulators Type CEL01 is a compact desktop intensive mixer‑granulator designed for laboratory R&D and small‑batch trials. Working volume 0.3‑1 liter, it completes dry mixing, binder spraying and wet granulation in‑one‑batch. Perfect for formula testing of magnetic powder, advanced ceramics, battery raw‑materials, powder metallurgy and refractory powder. Touch‑screen control, adjustable tank tilt angle, optional heating/cooling & vacuum system available

Send Inquiry

Product Description

Lab-scale Granulators Type CEL01,It is the lab-scale basic machine used in R&D centers for granulation process and product development.

The CEL01 Lab Scale Granulator is a small desktop type granulator. It can produce granulates of various powdery materials. The machine can be used for trial manufacturing or batch production in lab, or in science research institutions.

The CO-NELE Small mixing granulator(Laboratory machine)

Laboratory mixing granulator with exchangeable vessel
Mixing,granulation and temperature control in one machine
User-friendly,integrated control system
Operation-ready system
Flexible, high-performance, multifunctional mixer for R&D and small-scale production
Adjustable inclination angle 0°, 10°, 20° and 30°▪
Touch screen operation and display: infinitely adjustable tool speed in the direction of rotation, rotation speed (granulating disc), power (granulating tool), temperature, time.

Type of Laboratory Granulators

Type	Granulation (L)	Pelletizing disc	Paddle	Discharging
CEL01	0.3-1	1	1	Mixing barrel lifting and manual unloading
CEL05	2-5	1	1	Mixing barrel lifting and manual unloading
CEL10	5-10	1	1	Mixing barrel lifting and manual unloading
CR02	2-5	1	1	Automatically flip the mixing barrel to unload
CR04	5-10	1	1	Automatically flip the mixing barrel to unload
CR05	12-25	1	1	Automatically flip the mixing barrel to unload
CR08	25-50	1	1	Automatically flip the mixing barrel to unload

Lab-scale Granulators Type CEL01 Funtion:

lab small granulation machine for Mixing granulation coating fiberization

Frequently Asked Questions (FAQ)

QWhat is the main application of the CEL01 Lab-scale Granulator?

The CEL01 lab-scale granulator is designed for R&D centers and scientific research institutions. It is used for granulation process development, trial manufacturing, and small-batch production of powdery materials.

QWhat functions are integrated into this laboratory granulator?

The machine integrates mixing, granulation, and temperature control into a single multifunctional system equipped with a user-friendly touch screen display.

QWhat inclination angles are available for the mixing vessel?

The vessel supports adjustable inclination angles at 0°, 10°, 20°, and 30° to accommodate different material properties and process requirements.

QHow does the discharging mechanism differ between the CEL and CR series?

The CEL series (CEL01, CEL05, CEL10) uses mixing barrel lifting and manual unloading, while the CR series (CR02 to CR08) features an automatic flip mechanism for barrel unloading.

QWhat parameters can be adjusted via the touch screen control panel?

The touch screen allows infinite adjustment of tool rotation speed, granulating disc rotation speed, granulating tool power, temperature, and operating time.
