CO-NELEMixing & Granulation
HZS90 ready mix concrete batching plant is mainly composed 0f PLD2400 batching machine, JS1500TWIN SHAFT concrete mixer or CMP1500planetary concrete mixer ,cement silos, automatic computer control system, electronic weighing, screw conveyor and others.It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.

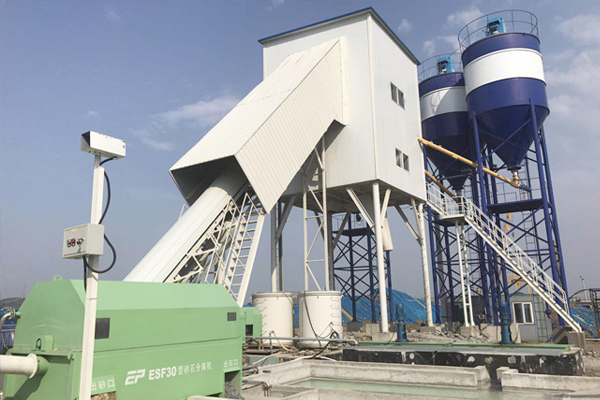

CO-NELE stationary ready concrete batching plants are being manufactured since 1993’s. HZN90 stationaryready concrete batching plant from the series is equipped with 2250/1500l. twin shaft concrete mixer or planetary concrete mixer.
HZN90 Stationary ready Concrete Batching Plant which has 90 m³/h concrete production capacity is the product of CO-NELE’s high quality and advanced technology and provides the following advantages to its users:
CO-NELE stationary concrete batching plants are mostly preferred for projects which require relatively high concrete production capacity and will take place for a long period of time in the same location.
| ready concrete batching plants | ||||||
| Model | HZN25 | HZN35 | HZN60 | HZN90 | HZN120 | HZN180 |
| Productivity (m³/h) | 25 | 35 | 60 | 90 | 120 | 180 |
| Discharge Height (mm) | 3800 | 3800 | 4000 | 4200 | 4200 | 4200 |
| Mixer Model | JS500/CMP500 | JS750/CMP750 | JS1000/CMP1000 | JS1500/CMP1500 | JS2000/CMP2000 | JS3000/CMP3000 |
| Working Cycle Time (s) | 72 | 72 | 60 | 60 | 60 | 60 |
| Batching Machine Model | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Affregate Number | 3 | 3 | 4 | 4 | 4 | 4 |
| Max.Aggregate Size (pebble/gravel) | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cement Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water Supply Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Admixtures Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Note: Any change of technical data shall not be advised additionally. | ||||||
The ready mix Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.
Prefabricated parts:
What is the concrete production capacity of the HZN90 batching plant?
The HZN90 stationary ready concrete batching plant provides a production capacity of 90 m³/h, engineered with CO-NELE’s high quality and advanced technology.
What concrete types can be mixed with the HZS90 / HZN90 plant?
It can mix fluidity concrete, plastic concrete, hard concrete, and various other custom proportioning concrete types for industrial and structural demands.
Which mixers are compatible with the HZN90 stationary plant?
The HZN90 plant is equipped with either a 2250/1500L JS1500 twin shaft concrete mixer or a CMP1500 planetary concrete mixer, depending on your project requirements.
Why should I select a stationary batching plant for long-term projects?
Stationary concrete batching plants are ideal for projects requiring relatively high production capacities over an extended timeframe at a fixed site, offering modular flexibility, wide maintenance space, and high operational efficiency.
What are the weighing precision standards for aggregates and cement?
The weighing system achieves high precision accuracy: ±2% for aggregates, ±1% for cement, ±1% for water supply, and ±1% for admixtures.
