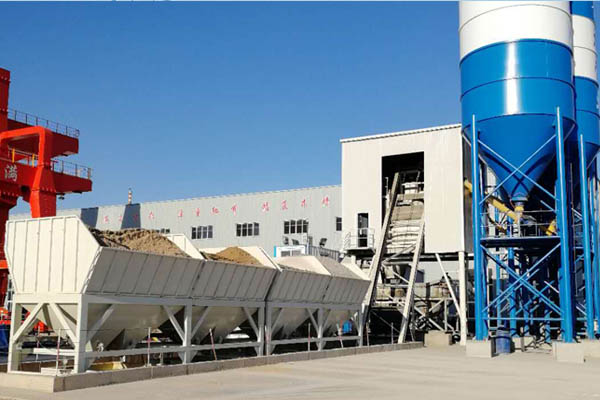

90m³/h STATIONARY READY MIXED CONCRETE BATCHING PLANT
It could work with CMP1500 to organize a STATIONARY READY MIXED CONCRETE BATCHING PLANT . It's the ideal choice for all kinds of industries, civil engineering, medium and small building sites etc

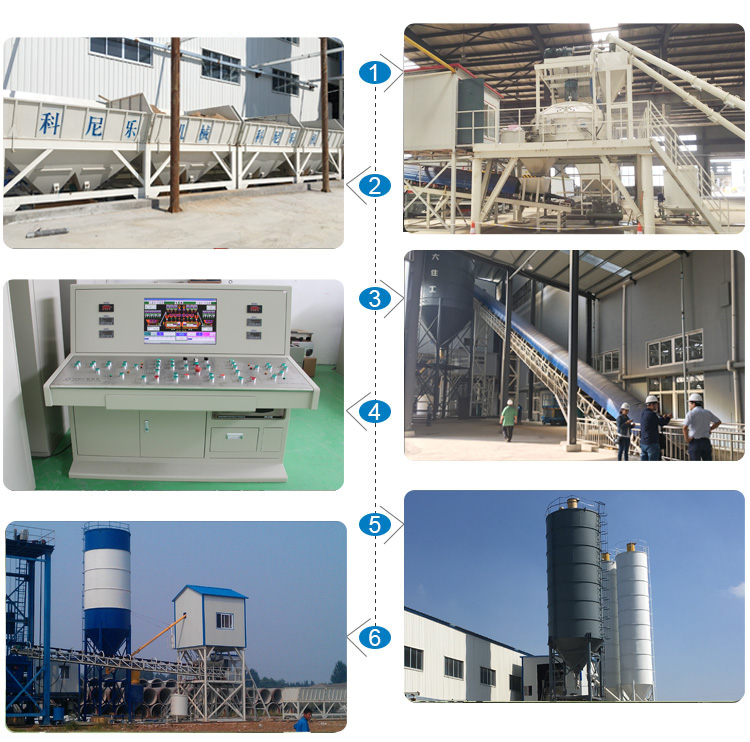

1
Production Capacity: 90 m³/h
2
Certifications: CE, ISO, SCG certification
3
Stability and Durability: Adapt and apply the most advanced technologies around the world.
4
Modular Design: Stationary modular structure, fast and easy installation.
5
Mixer Performance: Twin shaft Concrete mixer or Co-nele planetary mixer, Excellent mixing performance with high efficiency and high productivity.
6
Eco-Friendly: Excellent environmental protection, dust collection system and anti-noise design.
90m³/h Stationary Concrete Batching Plant Technical Parameters
| Model |
HZN90 |
| Production (m³/h) |
90 |
| Planetary Concrete Mixer |
Model |
CMP1500 |
| Mixing power (kw) |
55 |
| Output capability (m³) |
3 |
| Aggregate size (mm) |
≤80 |
| Hopper |
Hopper capacity (m³) |
15-20 |
| Hopper quantity |
3-4 |
| Conveyor capability (t/h) |
400 |
| Scope and precision of weighing |
Aggregate (kg) |
3500±2% |
| Cement (kg) |
900±1% |
| Water (kg) |
500±1% |
| Admixture (kg) |
30±1% |
| Total power (kw) |
108 |
| Height of discharge (m) |
≥3.9 |
Frequently Asked Questions (FAQ)
Q: What is the production capacity of the HZN90 Stationary Concrete Batching Plant?
The plant delivers a rated production capacity of 90 m³/h, making it ideal for medium and small building sites, civil engineering, and industrial construction projects.
Q: Which concrete mixer options are available for this plant?
It can be equipped with either a CMP1500 planetary concrete mixer ( featuring 55 kW power and 3 m³ output capability ) or a high-efficiency twin shaft concrete mixer.
Q: What quality certifications does the 90m³/h batching plant hold?
The batching plant holds CE, ISO, and SCG certifications, ensuring compliance with international manufacturing and safety standards.
Q: How difficult is the installation process for this batching plant?
Thanks to its stationary modular structure, the plant allows for fast, straightforward installation, disassembly, and ongoing maintenance.
Q: What weighing precision does the system offer for aggregates and cement?
The weighing precision is highly accurate: Aggregate (3500 kg ± 2%), Cement (900 kg ± 1%), Water (500 kg ± 1%), and Admixture (30 kg ± 1%).
Q: Does the plant include environmental protection features?
Yes, the plant is designed with an excellent dust collection system and anti-noise design to minimize environmental impact during operation.
