CO-NELEMixing & Granulation

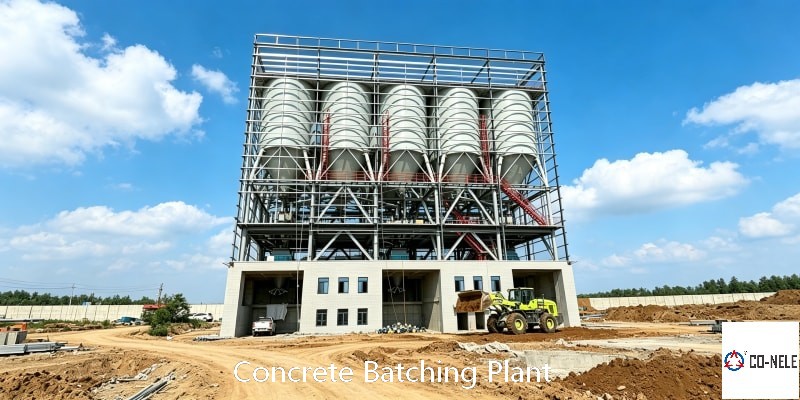

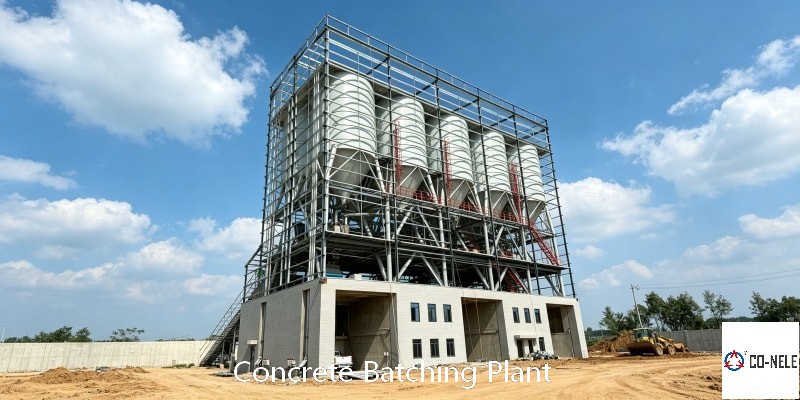

The HZS180 180 m³/h Concrete Batching Plant by CO‑NELE is a high‑capacity, stationary concrete mixing solution engineered for large‑scale commercial concrete production and major infrastructure projects. Manufactured by Qingdao CO‑NELE Machinery Co., Ltd. — a national science & technology innovating enterprise since 1993 — this plant delivers a theoretical productivity of 180 m³/h and is equipped with a CHS3000 twin‑shaft concrete mixer (3 m³ nominal capacity), providing exceptional output for ready‑mix concrete operations, commercial concrete batching, and central mix applications.

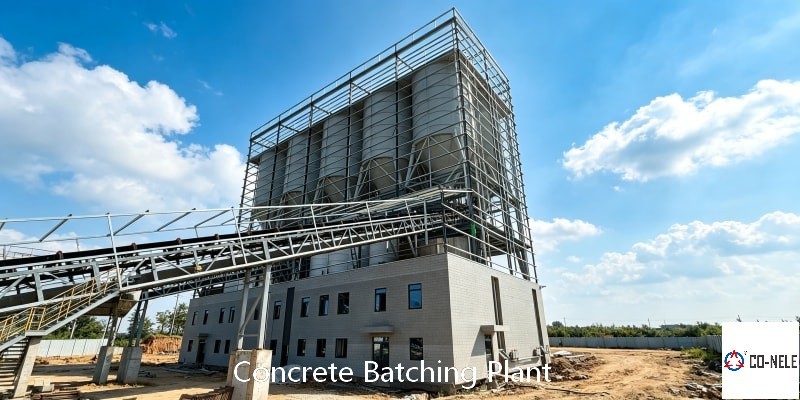

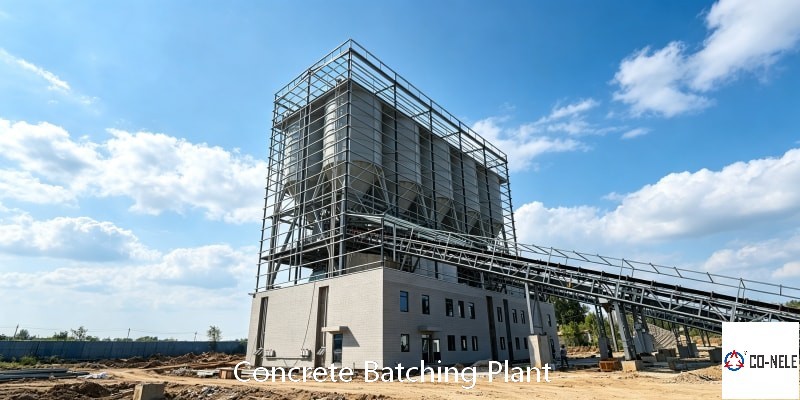

As a belt conveyor concrete plant, the HZS180 features an inclined belt feeding system that ensures stable, efficient material transport with minimal maintenance. This model represents the industry standard for stationary concrete batching plants, offering an optimal balance of production capacity, automation, and reliability — backed by CO‑NELE’s extensive expertise and over 100 national technology patents.
| Parameter | Specification |
|---|---|
| Model | HZS180 |
| Brand | CO‑NELE |
| Theoretical Productivity | 180 m³/h |
| Mixer Model | CHS3000 Twin‑Shaft Concrete Mixer |
| Mixer Nominal Capacity | 3000 L (3 m³) |
| Mixer Power | 2 × 55 kW |
| Aggregate Bins | 4 × 25 m³ |
| Batching Machine | PLD4800 (4‑cell) |
| Batching Capacity | 4800 L |
| Discharging Height | 3.8 – 4.2 m |
| Max. Aggregate Size | ≤80 mm |
| Total Installed Power | 200 – 291 kW |
| Weighing Accuracy (Aggregate) | ±2% |
| Weighing Accuracy (Cement/Water/Additive) | ±1% |
| Silo Capacity | 4 × 200 T |
| Reference Weight | 106 T |
CO‑NELE (Qingdao CO‑NELE Machinery Co., Ltd.) has been a pioneer in mixing equipment since 1993, with over 26 years of industry experience. The company has obtained more than 100 national technology patents and served over 10,000 customers worldwide. With a 30,000 m² manufacturing facility in Qingdao, China, CO‑NELE’s products have passed CE certification and obtained ISO9001, ISO14001, and ISO45001 system certifications. CO‑NELE’s product portfolio includes planetary concrete mixers (CMP50–CMP6000), twin‑shaft concrete mixers (CHS750–CHS7000), intensive mixers, granulators, and complete concrete batching plants. The company’s mixing solutions are exported to more than 80 countries and regions across Europe, the Americas, Asia, Africa, and Oceania.
Theoretical output of 180 m³/h. JS3000 twin‑shaft mixer features an optimal L/D ratio and curved large‑opening discharge door, reducing discharge time by 3 seconds. Interrupted spiral arrangement increases efficiency by 20%.
Microcomputer control with ±2% aggregate accuracy and ±1% cement/water/additive accuracy. Self‑learning algorithm with automatic drop correction and independent scales.
Enclosed belt prevents waste and dust. Features tail tension screws, pivot roller sensors for automatic tracking, and pull‑cord emergency switches for safety.
High output (180 m³/h), precision mixing, full automation to reduce labor, and proven reliability across 80+ countries.
Wear‑resistant components, robust construction, flexible configurations, and environmental compliance (CE/ISO).
Global brand recognition, competitive positioning, and extensive after-sales support with 50+ engineers.
CO‑NELE provides comprehensive service and support for every installation:
Q1: What is the actual output of the CO‑NELE HZS180 180 m³/h concrete batching plant?
A: The theoretical productivity is 180 m³/h. In real‑world commercial production, the plant typically achieves 150–170 m³/h under standard conditions, depending on mix design and operating efficiency.
Q2: What is the total power consumption of this 180 m³/h ready mix concrete plant?
A: Total installed power ranges from 200 kW to 291 kW depending on configuration. The mixer itself consumes 2 × 55 kW. Energy efficiency is optimized through the advanced control system.
Q3: How long does it take to install the CO‑NELE HZS180 belt conveyor concrete plant?
A: Thanks to its modular design, it can be installed and commissioned within 20–30 working days. Pre‑installed electrical and piping systems significantly reduce on‑site labor.
Q4: Can the 180 m³/h stationary concrete batching plant be customized?
A: Yes. CO‑NELE offers flexible configurations for aggregate bins, silo capacities, and optional systems like ice cooling or fiber dosing.
Q5: What is the warranty period and overseas maintenance support?
A: CO‑NELE provides a standard 12‑month warranty covering all main components against manufacturing defects, supported by 50+ maintenance engineers for global on‑site service.
Q6: Does it meet international environmental standards?
A: Absolutely. Equipped with bag‑type dust collectors and enclosed conveyors. Products are CE, ISO9001, ISO14001, and ISO45001 certified.
