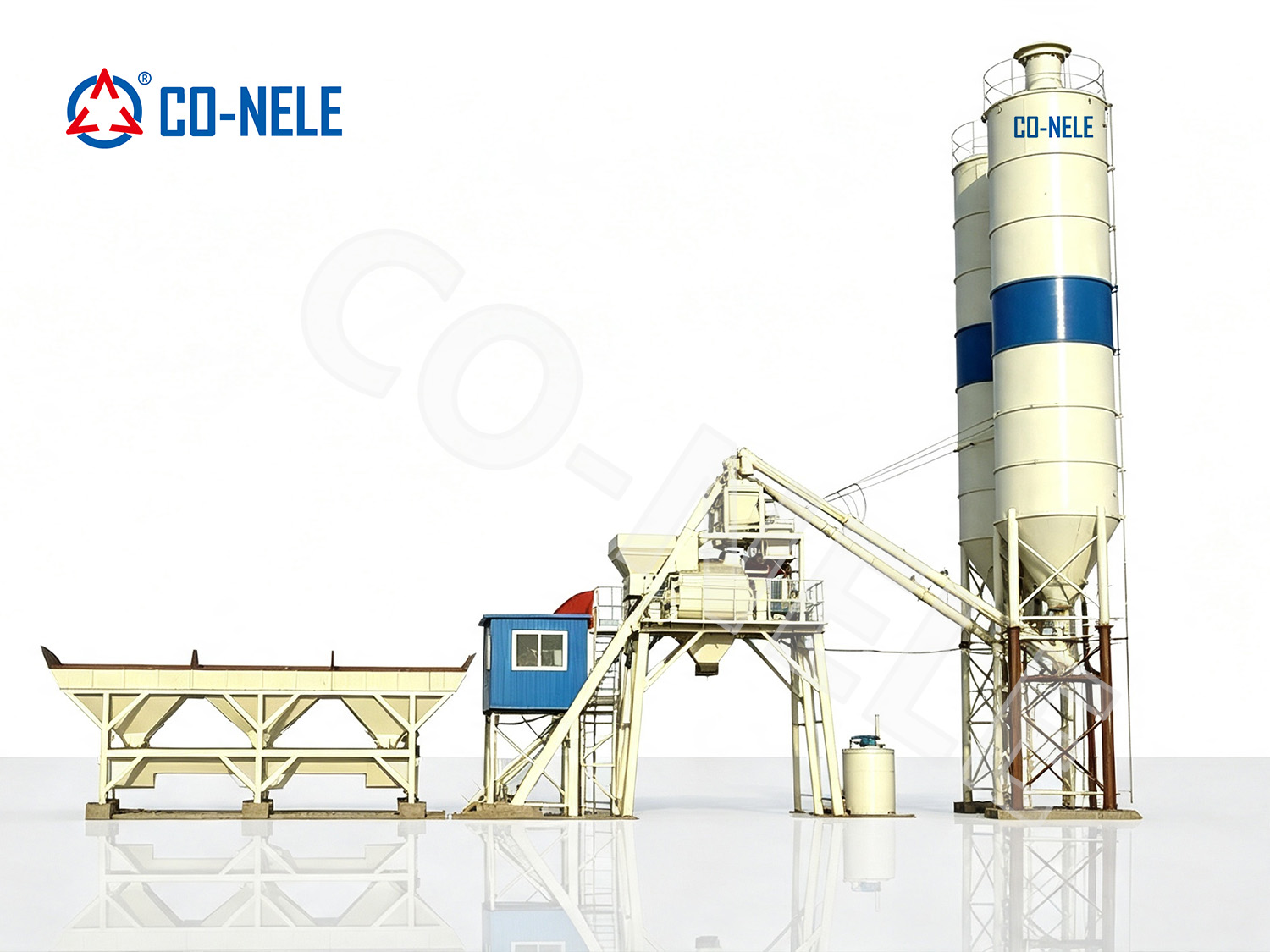

The 50m³/h compact concrete batching plant (HZS50) is a modular, integrated, space-saving automatic concrete mixing system independently designed and manufactured by CO-NELE. It is one of the most cost-effective small concrete batching plants for medium and small construction projects. This compact concrete plant delivers a theoretical productivity of 50 cubic meters per hour and a practical stable output of 40-45m³/h, perfectly matching project demands with limited construction area and moderate concrete consumption.
Different from traditional belt conveyor type concrete mixing stations, the HZS50 compact concrete batching plant adopts a skip hoist feeding structure, which eliminates the need for long-distance belt conveying systems. It achieves ultra-small floor space, fast on-site installation, convenient disassembly and transportation, and lower overall project investment. This small concrete batching plant can produce ordinary ready-mix concrete, semi-dry concrete, rigid concrete, and road-specific concrete, widely used in municipal construction, rural road renovation, small bridge engineering, water conservancy projects, precast component production, and temporary site concrete supply.
Equipped with the mature CO-NELE CHS1000 twin-shaft forced concrete mixer, the core mixing host provides powerful and homogeneous mixing performance.
Supports 3 to 4 aggregate bins. Realizes independent quantitative weighing and automatic batching of sand and gravel.
LSY250 professional screw conveyor for dust-free conveying of cement, fly ash and mineral powder.
Independent automatic weighing modules for accurate quantitative proportioning, eliminating human errors.
Industrial computer control with automatic/semi-auto modes. Supports formula storage and data printing.
Standard air compressor and pneumatic discharge door ensure sensitive and stable operation.
| Item | Technical Specification |
|---|---|
| Theoretical Productivity | 50m³/h |
| Actual Stable Working Productivity | 40-45m³/h |
| Main Mixer Model | CHS1000 Twin-shaft Compulsory Mixer / CMP1000 Planetary Mixer |
| Batching Machine Model | PLD1600 |
| Discharge Height | 2.7-3.8m (Customizable) |
| Total Installed Power | 85-120kW |
| Single Batch Cycle Time | 72s |
| Total Equipment Weight | 45-48 Tons |
| Occupied Floor Area | About 200㎡ |
| Power Supply Standard | 380V/50Hz, 3-phase |
Designed with skip hoist lifting structure. Ideal for narrow urban sites and mountainous construction areas.
Bolted modular connection with pre-wired circuits. Short installation cycle and easy to transport.
Independent high-precision weighing for all materials ensures compliance with international standards.
Optimized structure and wear-resistant accessories reduce failure rates and maintenance costs.
Optional dust collectors and wastewater recycling meet strict global environmental requirements.
Produces multiple types of concrete: ready-mix, pavement, precast, and special engineering concrete.
CO-NELE is a leading professional manufacturer and supplier of concrete batching plants and concrete mixers in China, specializing in R&D, customized production, global sales, and one-stop turnkey concrete mixing solutions. With decades of industrial manufacturing experience, introduced German advanced mixing technology, standardized production workflows, and strict ISO & CE quality control systems, CO-NELE stands out as a reliable and professional brand in the global concrete machinery industry.
Our full product line covers stationary concrete batching plants, compact concrete batching plants, mobile concrete batching plants, twin-shaft concrete mixers, planetary mixers, and complete sets of auxiliary equipment. The production capacity ranges from 25m³/h to 240m³/h, fully catering to small temporary construction sites, municipal engineering, commercial ready-mix concrete stations, precast component factories, and large-scale infrastructure projects worldwide.
All CO-NELE concrete mixing equipment is certified with ISO quality system and CE safety standard, featuring stable operation, high mixing efficiency, energy saving, environmental friendliness, and low maintenance cost. Our products have been exported to over 80 countries and regions across Europe, Southeast Asia, Africa, Oceania, and South America, gaining consistent trust and long-term cooperation from global contractors, project builders, and concrete product manufacturers.
The theoretical productivity is 50m³/h, and the stable actual working output reaches 40-45m³/h under normal raw material supply and standard operation conditions.
Yes. Adopting modular bolted structure without complex foundation requirements, the whole plant is easy to disassemble, transport and reinstall.
It can produce ordinary ready-mix concrete, dry-hard concrete, plastic concrete, road concrete and precast concrete.
Yes. CO-NELE provides global one-stop services including factory customization, overseas door-to-door installation guidance, operator training, and spare parts supply.
Absolutely. We support personalized customization of cement silo capacity, aggregate bin quantity, and environmental protection devices according to site conditions.
