When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Ready mix concrete plant for wall panels Manufacturer, Machine

1 / 1

China Ready mix concrete plant for wall panels Manufacturer, Machine

Send Inquiry

Product Description

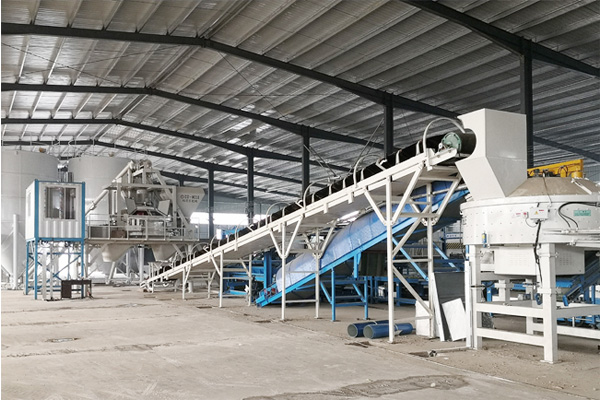

Ready-mixed Concrete Mixing Plant for Wall Panels

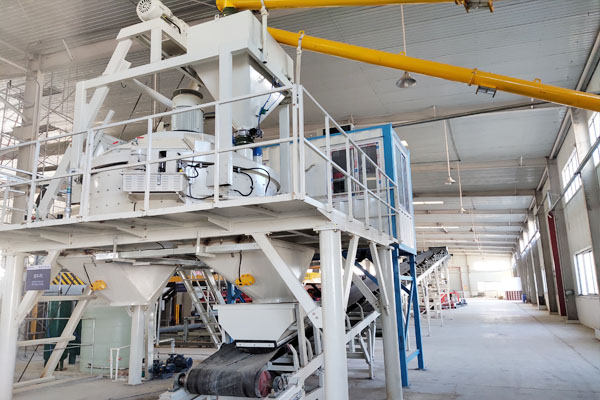

Planetary Concrete Mixer

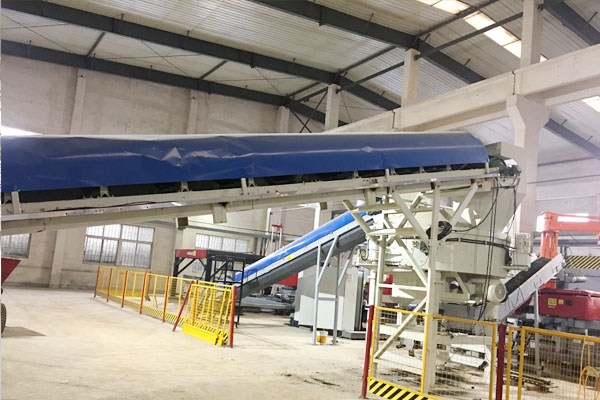

Concrete Pan Mixer

Frequently Asked Questions (FAQ)

What is a ready-mixed concrete mixing plant for wall panels?

It is an automated concrete batching system specifically engineered to produce uniform, high-quality concrete formulations required for precast wall panel manufacturing.

Why is a planetary concrete mixer preferred for wall panel production?

Planetary concrete mixers utilize a counter-current mixing action that eliminates dead spots, ensuring uniform color, consistent strength, and high material density for precast components.

What are the main advantages of a concrete pan mixer?

Concrete pan mixers offer a compact design, rapid mixing cycle, easy maintenance, and efficient discharging, making them cost-effective for medium to large production lines.

Can these mixers process dry-hard and light-aggregate concrete?

Yes, both planetary and pan mixers are engineered with heavy-duty drives and wear-resistant liners specifically built to handle dry-hard concrete, lightweight aggregates, and fiber-reinforced mixtures.

How do I choose between a planetary mixer and a pan mixer?

Planetary mixers are recommended for high-end precast components requiring ultra-high homogeneity, whereas pan mixers are ideal for standard concrete production where high speed and cost efficiency are prioritized.
