When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Lithium-Ion Battery Mixer | Dry Electrode Mix & Slurry Mixer Factory, Machine

1 / 1

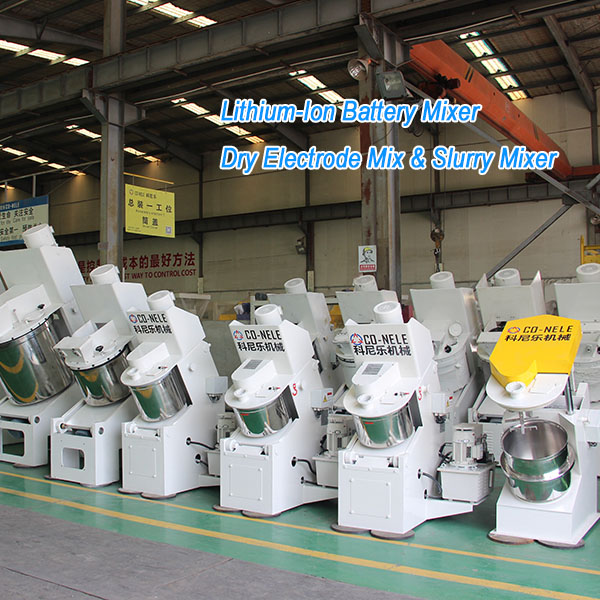

China Lithium-Ion Battery Mixer | Dry Electrode Mix & Slurry Mixer Factory, Machine

CO-NELE lithium-ion battery mixer integrates professional dry electrode powder mixing and wet electrode slurry mixing functions in one unit. It supports solvent-free dry mixing with PTFE fibrillation and high-uniformity vacuum slurry dispersion, perfectly matching R&D and mass production of LFP, NMC, silicon-based anode lithium batteries. Featuring closed dust-free operation, precise temperature control and adjustable shear speed, this dual-purpose battery mixer ensures consistent electrode quality and improves battery cycle stability.

Send Inquiry

Product Description

Lithium Battery Hybrid Technology

Economical and efficient High environmental performance Time saving Easy maintenance

Strong preparation technology in the field of lead-acid lithium batteries!

The Co-Nele intensive mixer can meet the special mixing requirements of lithium battery slurry.

Adapting to different mixing and stirring processes, it can be efficiently used to prepare battery paste, battery materials, and battery slurry.

Strong mixing performance, complete supporting services, and providing customized solutions

Co-Nele - Pioneer in dry electrode preparation

The unique mixing tool completely breaks up the agglomerates in the raw materials, achieving the best dry mixing, wrapping and fiberization effects in a short time, suitable for extremely fine particles.

Fiberization treatment, coating the active material with a polymer binder without destroying the particle structure of the material.

Pioneer in the field of battery materials and electrode preparation!

Preparation of positive electrode materials and electrolytes for all-solid-state batteries, preparation of diaphragms

Mixing of lithium battery precursors and coating of positive electrode materials, mixers for lithium battery negative electrode materials

Dry mixing and homogenization integrated equipment for lithium battery slurry, preparation of high-solid slurry, preparation of dry electrodes

Provide one-machine-multi-purpose customized solutions for battery industry users

Preparation of battery slurry, dry mixing and slurrying integrated equipment, 30min/batch, automatic continuous process monitoring to ensure the best quality and consistency of slurry

Unique Co-Nele Mixing System Advantages

Co-Nele can combine complex processes (4 hours) into a single process equipment. (Within 20 minutes)

Co-Nele lithium battery preparation technology: rotating mixing disc and eccentric mixing tool! During mixing, the mixing disc pushes the material to the rotating rotor without any dead angle. The fixed multi-functional scraper guides the material near the mixing disc back into the material flow.

Co-Nele not only focuses on the preparation and production of raw materials, but also provides advanced and efficient preparation processes for the production of positive, negative and diaphragm layers.

Battery slurry preparation, dry mixing and pulping integrated equipment, 30min/batch, automatic continuous process monitoring to ensure the best quality and consistency of slurry.

The explosion-proof design is applied in the pulping system:

Dry mixing and dispersion of positive and negative electrode pastes; granulation of particles with a particle size of 1 mm, or granulation of other particle sizes in water or other solvent liquids; dissolution and granulation of electrolytes or polymers; production of aqueous solutions or solvent plastic slurries; Co-nele vacuum technology will completely eliminate bubbles in positive electrode suspensions and negative electrode slurries.

Lithium-Ion Battery Mixer technical parameters

Model	Mixing volume / L	Discharge method
CEL1s	0.1 - 0.5	Manually disassembled type
CEL01	0.2 - 1	Manually disassembled type
CEL1plus	0.8 - 2	Manually disassembled type
CEL05	3 - 8	Lifting type
CEL10	5 - 15	Lifting type
CR02F	3 - 8	Tilting type
CR04F	5 - 15	Tilting type
CR05F	15 - 40	Tilting type
CR08F	50 - 75	Tilting type
CR09F	100 - 150	Tilting type
CR05	15 - 40	Bottom center
CR08	40 - 75	Bottom center
CR09	100 - 150	Bottom center
CRV09	150 - 225	Bottom center
CR11	150 - 250	Bottom center
CRV11	250 - 375	Bottom center
CR12	250 - 350	Bottom center
CRV12	350 - 450	Bottom center
CR15	500 - 750	Bottom center
CRV15	600 - 900	Bottom center
CR19	750 - 1125	Bottom center
CRV19	1000 - 1500	Bottom center
CR22	1000 - 1500	Bottom center
CRV22	1250 - 1800	Bottom center
CR24	1500 - 2250	Bottom center
CRV24	2000 - 3000	Bottom center
CR29	2500 - 4500	Bottom center
CRV29	3500 - 5250	Bottom center
CR33	3500 - 5250	Bottom center
CRV33	4500 - 7000	Bottom center

Frequently Asked Questions (FAQ)

What are the primary applications of the Co-Nele intensive mixer in battery production?

The Co-Nele intensive mixer is engineered for preparing battery paste, battery materials, positive/negative electrode materials, diaphragm preparation, and electrolytes for all-solid-state batteries.

How does Co-Nele technology improve mixing efficiency and cut processing time?

By combining complex multi-step processes into a single machine, Co-Nele reduces processing time from 4 hours down to within 20 minutes (or 30 minutes per batch for integrated slurrying), ensuring high quality and consistency.

Why is Co-Nele considered a pioneer in dry electrode preparation?

Its unique mixing tool breaks up agglomerates completely to achieve optimal dry mixing, wrapping, and fiberization without destroying the original particle structure of active materials.

Does the Co-Nele pulping system support explosion-proof operation and bubble elimination?

Yes, an explosion-proof design is integrated into the pulping system, and Co-Nele vacuum technology is employed to eliminate bubbles in electrode suspensions and slurries completely.

What mixing capacity options are available for industrial lithium-ion mixers?

Co-Nele offers a wide spectrum of models ranging from small lab units (CEL1s: 0.1-0.5L) to large industrial scale mixers (CRV33: 4500-7000L) with various discharge options including manual, lifting, tilting, and bottom center discharge.

Can Co-Nele customize mixer equipment for specific process requirements?

Yes, Co-Nele provides one-machine-multi-purpose customized solutions and complete supporting services to meet unique technical and capacity specifications for battery industry clients.
