When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Planetary Concrete Mixer Type CMP Manufacturer, Factory

1 / 1

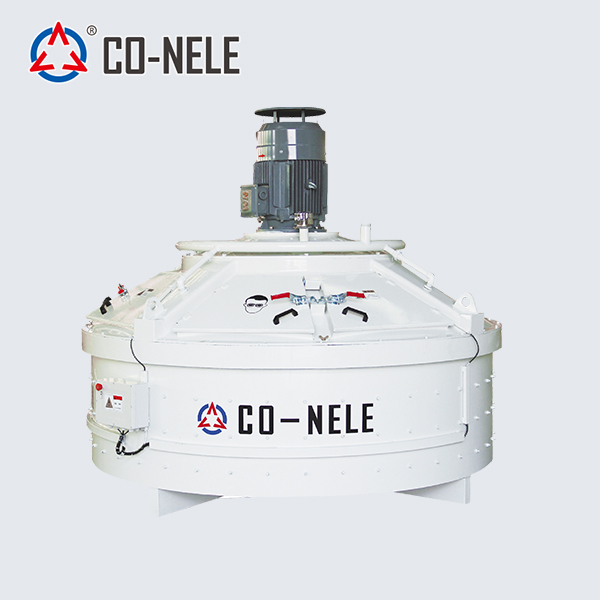

China Planetary Concrete Mixer Type CMP Manufacturer, Factory

CO-NELE planetary mixer is widely used in PRECAST concrete, high performance concrete, refractory materials, ceramics and other industries. For materials with high mixing difficulty, the advantages of co-nele planetary mixer are obvious. CO-NELE is the manufacturer of planetary concrete mixer and has own 30000m2 factory .Mixer is applied in precast concrete, low slump concrete, dry concrete, plastic fiber concrete ,Refractory castable ，UHPC concrete，Glass ，ceramics.

Send Inquiry

Product Description

As a high-performance mixing equipment widely used in construction, precast, and refractory industries, the planetary concrete mixer (also known as planetary centrifugal mixer) stands out for its unique vertical shaft planetary mixing principle, realizing 360° dead-angle-free mixing and stable output of high-quality concrete. Different from traditional JS concrete mixers, our planetary concrete mixer integrates efficiency, durability, and versatility, making it the preferred choice for large-scale construction projects, precast concrete plants, and high-performance concrete production worldwide.

Working Principle of Planetary Concrete Mixer

The core advantage of the planetary concrete mixer lies in its advanced planetary mixing mechanism: the mixing device is driven by an overhead motor to rotate around the central vertical shaft (revolution), while the mixing arms and blades rotate at high speed around their own axis (rotation) — the superposition of revolution and rotation forms a complex and efficient mixing trajectory. This unique motion mode enables materials to move horizontally and vertically at the same time, strongly shearing and turning over, which can effectively break cement particle agglomeration and achieve microscopically uniform mixing.

Equipped with a Planetary gearing system, the rotation direction of the mixing stars is opposite to the revolution direction, and each mixing star rotates in a different direction, further enhancing the convection and circulation of materials, shortening the mixing time by 15~20% compared with traditional planetary mixers, and reducing energy consumption significantly. Every 4 revolutions (about 5 seconds), the mixing blades can fully cover the bottom of the mixing tank, ensuring no dead corners and uniform mixing of all materials.

Core Advantages of Our Planetary Concrete Mixer

1. High Uniformity & Mixing Quality

The planetary mixing trajectory covers the entire mixing tank, cooperating with unique blade-type blades and side scrapers, which can fully mix various materials (including dry materials, plastic materials, and high-viscosity materials) uniformly. The mixed concrete has excellent workability and strength, which is especially suitable for the production of high-performance concrete (HPC), UHPC, steel fiber reinforced concrete, colored concrete, and foam concrete.

2. High Efficiency & Energy Saving

Adopting a high-torque, low-noise planetary reducer and optimized drive system, the transmission efficiency is high, and the energy consumption is 15~20% lower than that of traditional mixers under the same mixing capacity. The mixing time is short (5~60 seconds adjustable according to material type), and the output efficiency is significantly higher than that of ordinary mixers, which can meet the high-demand production of large-scale construction sites and precast plants.

3. Durable & Low Maintenance Cost

The mixing arms, blades, and mixing tank lining are made of high-chromium alloy cast iron, which has strong wear resistance and high interchangeability, effectively extending the service life of wearing parts. The whole machine has a simple structure, a low failure rate, and is equipped with a convenient maintenance cover and inspection hatch, which simplifies daily maintenance and reduces downtime and maintenance costs.

4. Versatile & Wide Application

Beyond mixing all types of concrete, our planetary concrete mixer can also be used to mix refractory materials, glass, ceramics, fertilizers, dry mortar, and other materials, widely applicable to construction engineering, bridge and road construction, precast concrete production, mine backfill, water treatment, and other fields. It can be flexibly equipped with lifting hoppers or belt conveyors according to production needs, adapting to different production line layouts.

5. Intelligent Control & Safe Operation

Equipped with an independent electric control cabinet and PLC visualization control system, it can realize full automatic control, including preset and adjustment of mixing parameters, real-time monitoring of the mixing process, and one-key operation, which reduces labor intensity and avoids operational errors. Each inspection door and observation door is equipped with an interlocking safety switch, and an emergency stop button is configured in accordance with CE regulations to ensure the safety of operators during operation. In case of power failure, the hydraulic unit with a manual pump can open the discharge door to avoid material waste.

6. Flexible Discharging & Customizable Design

According to customer needs, 1~3 discharge doors can be configured, and the discharge mode can be selected from hydraulic, pneumatic, or manual, with a special sealing device to ensure no leakage during mixing and fast, thorough discharging. We support customized services, including mixing capacity, mixing tank heating/cooling design, pressure/vacuum mixing, and overall dimensions, to fully meet the personalized needs of different customers and production scenarios.

Features of CO-NELE Planetary Concrete Mixer

1 Strong, Steady, Fast and Homogeneous Mixing Performance

2 Vertical Shaft, Planetary Mixing Motion Track

3 Compact Structure, No Slurry Leakage Problem, Economic and Durable

4 Hydraulic or Pneumatic Discharging

CMP PLANETARY CONCRETE MIXER SPECIFICATIONS
Item/Type	CMP50	CMP100	CMP150	MP250	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Outp capacity	50	100	150	250	330	500	750	1000	1500	2000	2500	3000
Input capacity(L)	75	150	225	375	500	750	1125	1500	2250	3000	3750	4500
Input capacity(kg)	120	240	360	600	800	1200	1800	2400	3600	4800	6000	7200
Mixing power(kw)	3	5.5	2.2	11	15	18.5	30	37	55	75	90	110
Mixing blade	1/2	1/2	1/2	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Side scraper	1	1	1	1	1	1	1	1	1	1	1	1
Bottom scraper	1	1	1	1	1	1	1	1	1	2	2	2
Weight(kg)	700	1100	1300	1500	2000	2400	3900	6200	7700	9500	11000	12000

Application Scenarios

Our planetary concrete mixer is widely used in various fields that require high-quality mixing, including but not limited to:

Construction Engineering: High-rise buildings, residential quarters, industrial workshops, and other projects requiring large batches of concrete.
Road & Bridge Engineering: Highway, railway, bridge, tunnel construction, and shotcrete construction.
Precast Concrete Industry: Production of precast components, concrete pipes, concrete slabs, and other precast products.
High-Performance Concrete Production: UHPC, steel fiber concrete, colored concrete, and dry-hard concrete production.
Other Industries: Mixing of refractory materials, glass, ceramics, fertilizers, dry mortar, foam concrete, and mine backfill materials.

Frequently Asked Questions (FAQ)

What makes planetary mixing superior to traditional concrete mixing methods?

Planetary concrete mixers utilize a unique combination of revolution and rotation mixing arms. This 360° dead-angle-free motion ensures complete material dispersion, high microscopic uniformity, and faster mixing times while preventing particle agglomeration compared to standard horizontal shaft mixers.

What types of concrete can be produced using this mixer?

Our planetary mixer is ideal for high-performance concrete (HPC), ultra-high performance concrete (UHPC), precast concrete elements, steel fiber reinforced concrete, dry-hard concrete, colored concrete, and foam concrete, as well as non-concrete materials like glass, ceramics, and refractory materials.

How does the machine prevent leakage during operation?

The mixer features a specialized sealing mechanism around the discharge doors and shaft seals, preventing slurry and dust leakage. The vertical shaft layout natively reduces shaft seal wear and leakage common in twin-shaft horizontal designs.

What customizable discharge options are available?

Depending on your specific production line layout, the mixer can be fitted with 1 to 3 discharge doors operated via hydraulic, pneumatic, or manual mechanisms. Emergency manual pumps are integrated for power failure situations.

How easily can maintenance and replacement of wear parts be conducted?

Wearing parts like blades and tank liners are cast from high-chromium alloy iron, offering high resistance to wear and universal interchangeability. Large maintenance hatches with interlocking safety switches allow quick, safe inspection and easy replacement.
