CO-NELEMixing & Granulation
The MP3000 Planetary Concrete Mixer is a high-performance, heavy-duty mixing equipment, this mixer stands out for its fast mixing speed, uniform mixing quality, energy efficiency, and long service life - making it the preferred choice for precast component factories, bridge and tunnel construction, and other large-scale engineering projects. The CMP3000 Planetary Concrete Mixer effectively solves the mixing challenges of high-performance concrete, dry-hard concrete, and special materials, delivering reliable performance and significant cost savings for your construction operations.
What sets the MP3000 Planetary Concrete Mixer apart from traditional mixers (turbine, twin-shaft) is its innovative planetary mixing structure and user-centric design, which bring comprehensive advantages to your construction site:

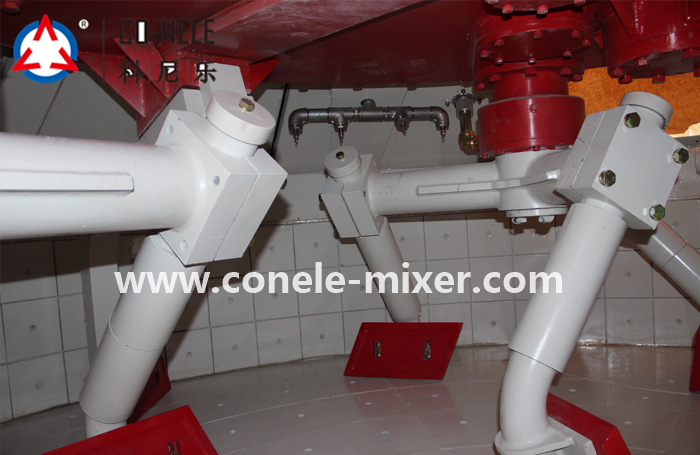

Equipped with three mixing stars (3 mixing arms with 9 paddles), the MP3000 features a unique countercurrent planetary mixing principle - each mixing arm rotates on its own axis while revolving around the central axis of the mixing drum, ensuring every inch of the drum floor is fully swept within 60 seconds of operation. This intense mixing action achieves thorough material blending in 30 seconds or less after water addition for most concrete types, significantly reducing mixing time and increasing throughput. Compared with traditional mixers, it improves production efficiency by 20-30% while ensuring consistent concrete quality and higher strength.
The MP3000 is engineered for cost efficiency in multiple aspects. Its perfect countercurrent mixing action eliminates material segregation and ensures full utilization of cement, helping you save 10-15% of cement usage without compromising concrete strength. Additionally, the mixer is equipped with a large reduction gearbox with an oil bath design, which operates coolly and stably, extending the gearbox service life - backed by a 5-year/10,000-hour guarantee on the gearbox for long-term reliability. The energy-efficient motor design reduces power consumption by 15-20% compared with traditional twin-shaft mixers under the same working conditions.
Built with German technology, the MP3000 Planetary Concrete Mixer is highly versatile and suitable for mixing a wide range of materials, including ordinary commercial concrete, precast concrete, high-performance concrete, dry-hard concrete (roller compacted concrete), steel fiber reinforced concrete, colored concrete, and dry mortar. It is widely used in building blocks production, prefabricated parts manufacturing, road and bridge construction, tunnel projects, and large-scale construction sites, meeting diverse construction needs with one machine.
The MP3000 is constructed with high-strength steel and wear-resistant liners to withstand heavy loads and prolonged use in harsh construction environments. The mixer features a hydraulic discharge door with rubber sealing, ensuring smooth operation and no water leakage, while enabling fast and complete discharge without dead spots. It is also equipped with a high-pressure cleaning system that uses rotating high-pressure nozzles to thoroughly clean the drum, mixing arms, and paddles in minutes, reducing labor intensity and maintenance time. The design includes easy-access inspection doors with high-sensitivity safety switches, ensuring safe and convenient maintenance operations.
Safety is a top priority in the design of the MP3000. The mixer is equipped with high-reliability, high-sensitivity safety switches on inspection doors, preventing accidental startup during maintenance. The motor and gearbox are rated for occasional full-load startup without the need for complicated hydraulic coupling, ensuring stable operation even under heavy loads. Optional temperature and humidity testers can be installed to accurately measure and control material moisture content, ensuring the quality of high-performance concrete and precast components.
CO-NELE MP series Planetary Concrete Mixer, also called Concrete Pan Mixer, is researched, developed and manufactured using advanced German Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete etc. It also have solved many mixing problems about HPC (High Performance Concrete).
The MP3000 Planetary Concrete Mixer combines powerful performance with precise specifications to meet the needs of large-scale concrete production. Below are the key technical parameters (subject to slight adjustments based on customization):
| Technical Parameter | Specification |
|---|---|
| Model | MP3000 Planetary Concrete Mixer |
| Discharge Volume | 3000 L |
| Charging Volume | 4500 L |
| Discharge Weight | 7200 kg |
| Mixing Motor Power | 110 kW |
| Discharging Motor Power | 4 kW |
| Mixing Drum Diameter | 3400 mm |
| Mixing Stars/Paddles | 3/9 |
| Side Scraper | 1 |
| Bottom Scraper | 2 |
| Overall Weight | 11000 kg |
| Overall Dimension (L×W×H) | 3893×3550×2975 mm |
| Certification | CE, ISO |
The MP3000 uses a countercurrent planetary mixing action where 3 mixing stars rotate on their own axes while revolving around the central axis. This enables full coverage of the drum floor within 60 seconds and completes thorough mixing in 30 seconds or less after water addition.
Due to its superior mixing homogeneity and elimination of material segregation, the MP3000 helps optimize cement utilization, saving approximately 10-15% of cement usage without reducing concrete strength.
The MP3000 is suitable for commercial concrete, precast concrete, high-performance concrete (HPC), dry-hard concrete, steel fiber reinforced concrete, colored concrete, dry mortar, and low slump concrete.
The reduction gearbox features a heavy-duty oil bath design and comes backed by a 5-year or 10,000-hour guarantee for long-term operational reliability.
It utilizes rotating high-pressure nozzles positioned inside the mixing drum to thoroughly clean the drum floor, mixing arms, and paddles within minutes, significantly cutting down manual cleaning efforts.
Yes, technical engineers are available for overseas machinery service, installation, site trouble clearing, and operator training to ensure smooth project operations.
