China Misturador de Concreto Planetário CMP1000 Manufacturer, Factory

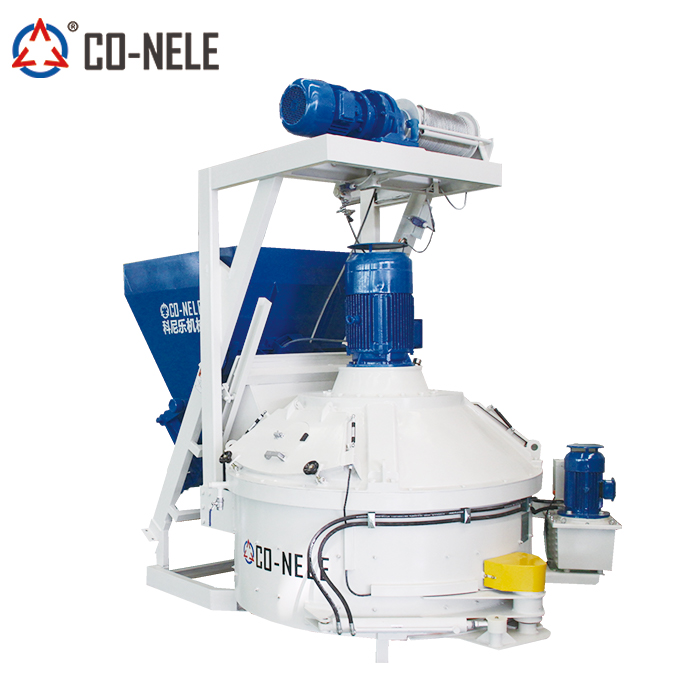

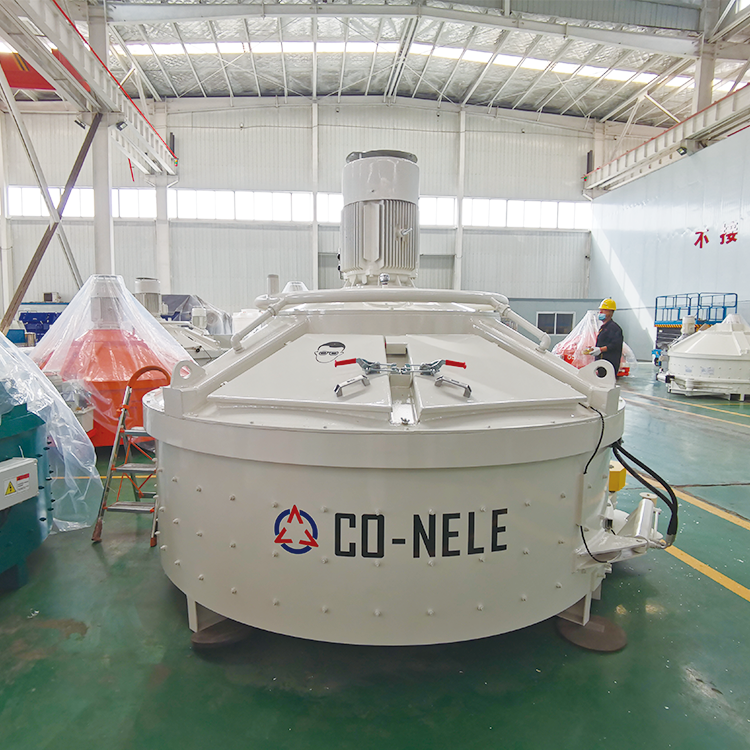

Apresentação do Produto: Betoneira Planetária CMP1000. Esta é uma máquina de mistura forçada projetada especificamente para produzir concreto de alta qualidade e homogeneidade, fabricada pela Qingdao CO-NELE Machinery Co., Ltd. na China.
The core principle of the CMP1000 lies in its unique "planetary" mixing mechanism. While the mixing unit revolves around its central axis, each mixing arm also rotates on its own axis, forming a complex composite movement trajectory.
360° Continuous Mixing
This motion trajectory covers every corner of the mixing drum, ensuring that materials (including high-performance concrete and other challenging materials) achieve extremely high homogeneity in a short period, leaving no dead zones during mixing.
High Efficiency & Power
Combining revolution and rotation generates a powerful composite squeezing and folding action on the material, resulting in faster mixing speeds and higher efficiency than traditional twin-shaft mixers.
Fully Automatic Control System, PLC Connectable, Pre-configurable Process
Number of Planetary Agitators
2
Number of Side Scrapers
1
Main Application Areas
The CMP1000 Planetary Concrete Mixer features a broad application range, making it exceptionally suited for sectors demanding superior quality, uniformity, and production efficiency:
Special & High-Performance Concrete: Highly efficient for UHPC (Ultra-High Performance Concrete), RPC (Reactive Powder Concrete), dry-hard, plastic, and high-strength concrete.
Construction Materials: Used in producing refractory materials, permeable bricks, paving bricks, etc.
Other Industries: Material mixing in glass, ceramics, chemical processing, and solid waste treatment.
Planetary Concrete Mixer Main Advantages
High Mixing Quality
Utilizing planetary mixing principles, it achieves extremely uniform mixing in a short period, effectively preventing material segregation.
Durable & Easy Maintenance
The reinforced core reducer ensures smooth transmission, low noise, and high torque. Reversible and reusable mixing blades significantly extend service life.
Inspection and observation doors are equipped with safety interlock switches to ensure complete operational safety.
Customer Feedback from Various Industries in Brazil
Refractory Materials Industry
Our Planetary Concrete Mixer produces refractory castables for boilers and insulation bricks. High viscosity and agglomeration were major challenges. Its planetary mixing trajectory provides powerful shear force, resulting in highly uniform mixing and solving agglomeration and segregation issues.
Brick Industry (Permeable Bricks)
Controlling dry concrete uniformity used to be difficult. The forced mixing action of the CMP1000 ensures aggregates and cementitious materials are fully coated, yielding consistent brick strength and significantly improved appearance.
Glass Industry (Raw Materials)
Our CMP1000 mixes refractory clay and raw materials for glass furnaces. The equipment provides excellent powder dispersion, eliminating dead zones and ensuring accurate batching and stable furnace operation.
Cement Pipe Industry
As the heart of our pipe pile production line, the mixer is highly efficient in handling semi-dry and rigid concrete. Stable operation and high productivity ensure continuous production with optimal pile density and strength.
Precast Industry (Subway Segments)
High-precision subway segment production demands strict concrete homogeneity and fluidity. The planetary mixer provides high-quality mixing and integrates seamlessly into automated lines for efficient mass production.
UHPC Industry
The main challenge in UHPC is dispersing fibers at extremely low water-cement ratios. This mixer performs admirably, achieving steel fiber dispersion uniformity over 99% and meeting all mechanical requirement targets.
Precast Industry (Diversified Production)
Producing various components like wall panels and stairs requires frequent mix design changes. The CMP1000 adapts well to different particle sizes and proportions and is easy to clean, allowing flexible production.
Equipment Reliability Feedback
A Brazilian customer reported that the mixer has operated under high intensity for over two years. Wear resistance of agitator blades and liners exceeded expectations, with a very low failure rate, reducing maintenance costs.
After-Sales Service Support
CO-NELE's technical team provided valuable assistance during installation and commissioning. Subsequent maintenance response has been prompt, offering peace of mind when operating such professional equipment.
Frequently Asked Questions (FAQ)
Q1: What is the main operational advantage of the CMP1000 planetary concrete mixer?
The CMP1000 uses a unique 360° planetary motion combining revolution and rotation. This eliminates dead zones and achieves high material homogeneity much faster than traditional twin-shaft mixers.
Q2: What are the capacity and power parameters of the CMP1000 mixer?
The CMP1000 features a charging capacity of 1500 liters, a discharge capacity of 1000 liters, and is powered by a 37 kW mixing motor.
Q3: Is the CMP1000 suitable for challenging materials like UHPC and refractories?
Yes. Its high shear mixing trajectory ensures superior dispersion of steel fibers (over 99% uniformity) in UHPC and effectively prevents agglomeration in high-viscosity refractory materials.
Q4: How does the mixer ensure environmental safety and prevent leaks?
It features a tight hydraulic discharge gate seal to prevent concrete leakage and dust-sealed inspection doors equipped with safety interlock switches to maintain an eco-friendly and safe working environment.
Q5: Can the CMP1000 be integrated into automated production lines?
Yes, the mixer comes with a fully automatic control system that connects easily to PLC networks, allowing pre-configurable processes suitable for modern automated production lines.
