CO-NELEMixing & Granulation

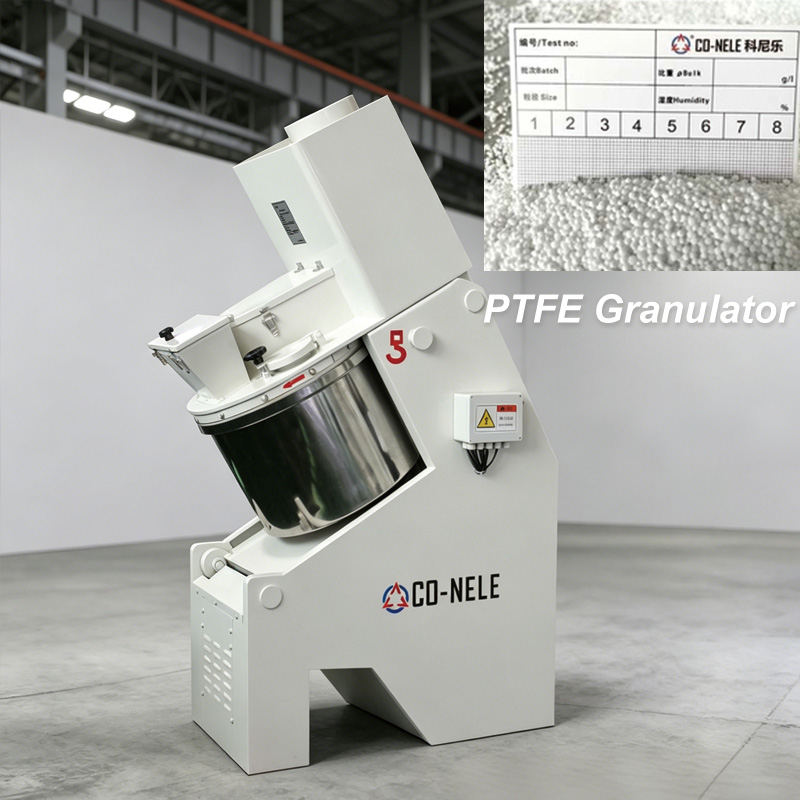

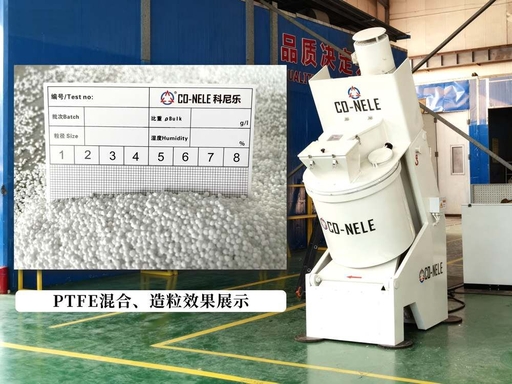

The CO-NELE CR Intensive Mixer is the core equipment tailored for PTFE granulation, integrating high-shear mixing and precision granulation in one unit. As a flagship model from CO-NELE (a 20-year leading manufacturer and national high-tech enterprise), it addresses PTFE's key pain points—static buildup, poor fluidity, and feeding bridging—delivering uniform, dense spherical granules for molding, extrusion, and sintering.
Powered by CO-NELE's intensive countercurrent mixing principle, the CR mixer uses a slow-rotating inclined drum and a high-speed reverse rotor to create a 3D turbulent field. This achieves:
Eliminates PTFE agglomeration and static electricity.
Shears mixed powder into round, burr-free granules (0.5–5mm adjustable).
Prevents contamination and material waste.
304 stainless steel, anti-static, residue-free, and easy to clean.
CO-NELE-selected alloy, frequency-controlled (500–1500r/min) for diverse PTFE formulas.
Ambient to 80°C adjustable, optimizes PTFE fluidity for consistent granulation.
Precisely sets parameters (speed, time, temperature) with memory and fault alarm functions.
Full enclosure, emergency stop, and static grounding; complies with ISO9001 and CE standards.
| Parameter | Specification |
|---|---|
| Model | CR-500 / 1000 / 2000 (lab to industrial) |
| Capacity | 50–500kg/h |
| Particle Size | 0.5–5mm |
| Mixing Uniformity | ≥98% |
| Motor Power | 5.5–22kW |
| Noise | ≤75dB |
Solves static, bridging, and poor fluidity; ensures stable granule quality.
4–5x faster than traditional equipment; saves space with integrated mixing/granulation.
Handles pure PTFE and filled grades (graphite, carbon fiber, glass fiber).
Sealed design eliminates dust; 304 stainless steel meets food/pharmaceutical standards.
Durable components reduce upkeep; CO-NELE provides 1-year warranty and lifelong technical support.
Widely used in the following industries for PTFE raw material processing:
The CR Intensive Mixer specifically resolves key issues inherent to PTFE processing, including static electricity buildup, poor material fluidity, and feeding bridging. It produces uniform, dense spherical granules optimal for downstream molding, extrusion, and sintering.
Thanks to the intensive countercurrent mixing principle, the system achieves a mixing uniformity of ≥98% within 1 minute and completes precision granulation within 3 minutes, making it 4–5 times faster than conventional equipment.
The mixer shears mixed powder into smooth, round, burr-free granules with an adjustable particle size ranging from 0.5mm to 5mm to match diverse production specifications.
Yes, the CR Intensive Mixer offers wide adaptability. It handles pure PTFE as well as various filled grades containing additives such as graphite, carbon fiber, and glass fiber.
CO-NELE offers multiple models ranging from laboratory scale to industrial production (CR-500, CR-1000, and CR-2000), covering output capacities from 50kg/h up to 500kg/h.
The equipment is fully enclosed with emergency stop and static grounding features, using food/pharmaceutical grade 304 stainless steel, and fully complies with ISO9001 and CE international standards.
