CO-NELEMixing & Granulation

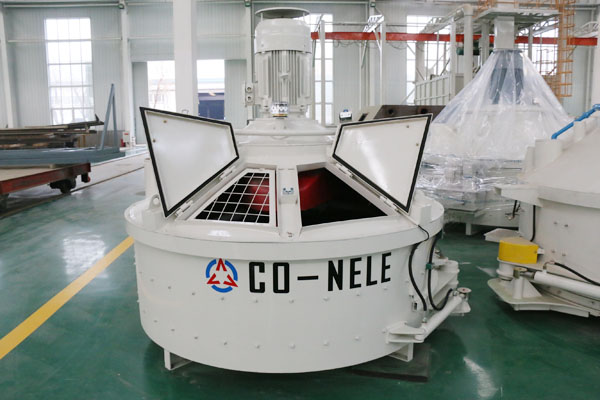

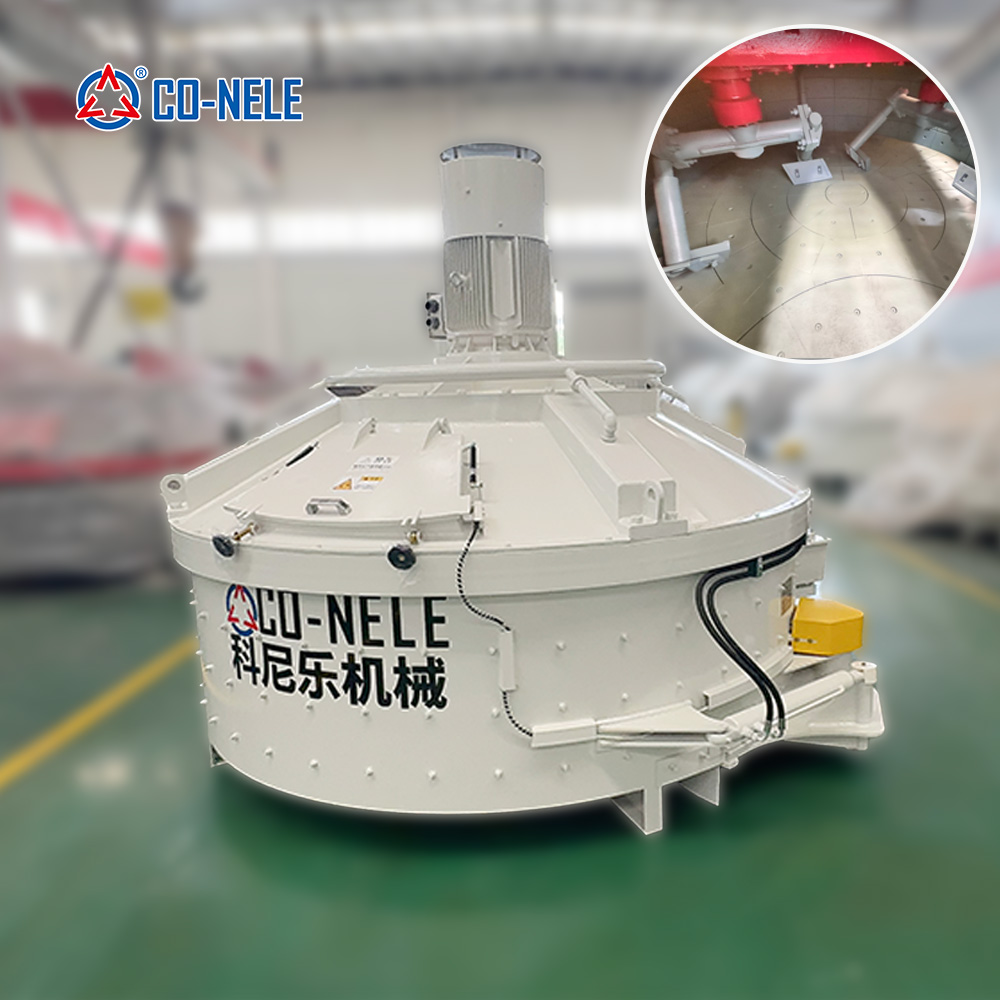

CMP1000 planetary concrete mixer features a hard gear transmission system, designed to be noise-low, torque-large, and highly durable. It can be equipped with an elastic coupling or hydraulic coupler (optional) for smooth start-ups even under full load conditions.

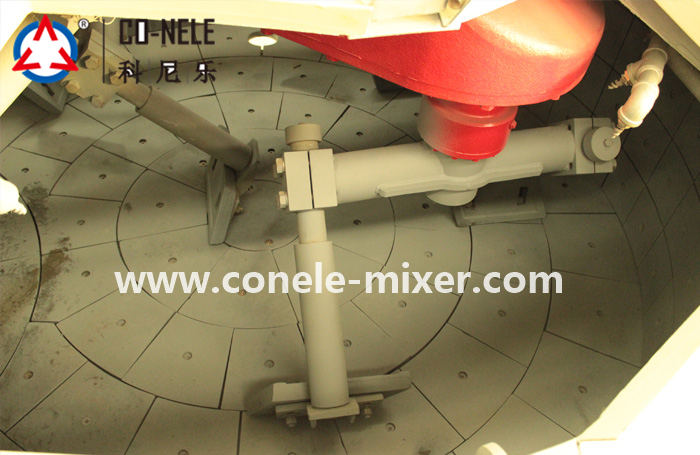

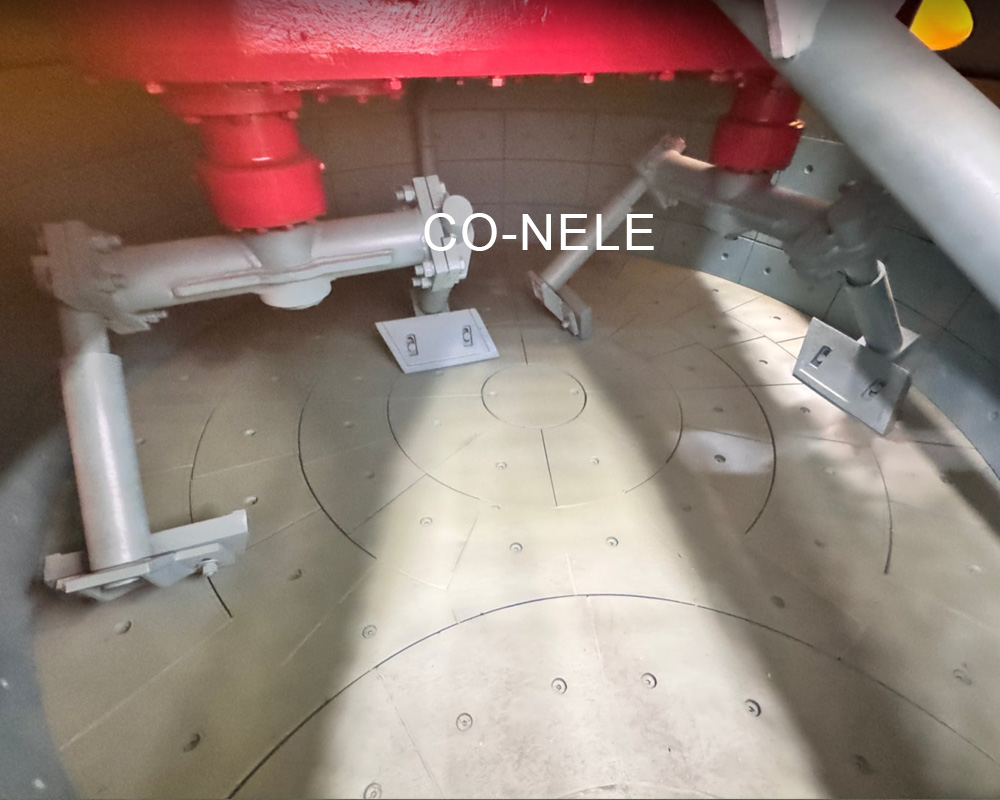

Mixing blades are designed in parallelogram structure (patented), which can be turned 180° for reuse to increase service life. Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.
Driving system consists of motor and hardened surface gear which is specialized designed by CO-NELE (patented). The improved model has lower noise, longer torque and more durable. Even in strict production conditions, the gearbox can distribute power effectively and evenly to each mix end device ensuring normal operation, high stability and low maintenance.
The discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most.
A special designed hydraulic power unit is used to provide power for more than one discharging gates.
The spraying water cloud can cover more area and also make the mixing more homogeneous.
The CMP1000 Planetary Concrete Mixer is designed with precision engineering to meet rigorous industrial standards. Here are the detailed technical specifications:
| Model | Output (L) |
Input (L) |
Output (kg) |
Mixing power (kW) |
Planet/paddle | Side paddle | Bottom paddle |
|---|---|---|---|---|---|---|---|
| CMP1500/1000 | 1000 | 1500 | 2400 | 37 | 2/4 | 1 | 1 |
Choosing the CMP1000 Planetary Concrete Mixer provides numerous tangible benefits:

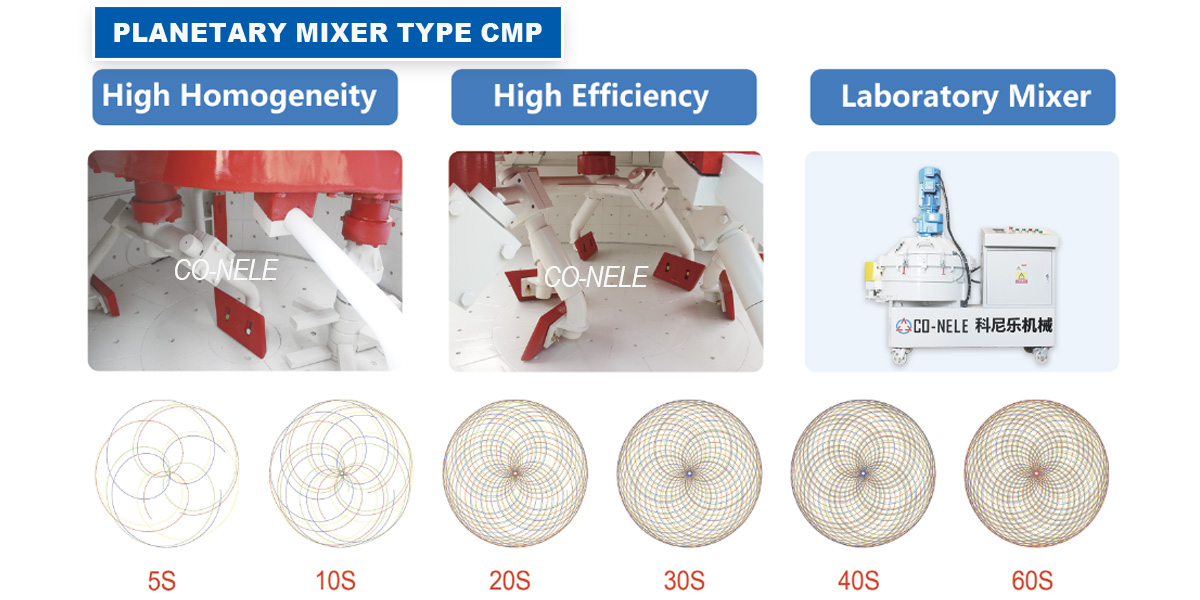

The planetary mixing mechanism ensures material is mixed violently and uniformly, achieving high homogeneity (mixing uniformity) and eliminating dead angles. This is crucial for high-end applications like UHPC.
The reasonable speed matching and complex motion (trajectory design) lead to faster mixing and shorter production cycles.
The hard gear reducer and patented parallelogram blades are built for longevity and withstand harsh production conditions.
Unlike some mixer types, the CMP1000's design ensures no leakage problems, keeping the work area clean and reducing material waste.
The capability for multiple discharge gates (up to three) provides flexibility for different production line layouts and requirements.
Features like the large maintenance door and reversible blades significantly reduce maintenance costs and downtime.
The sealed design prevents leakage, and the misting water system reduces water consumption and improves mixing efficiency.

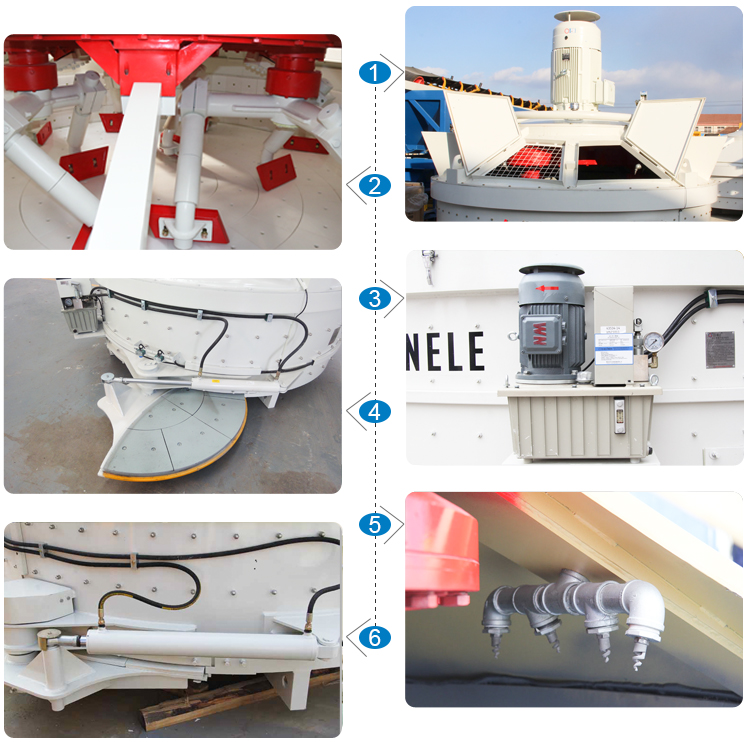

The CMP1000 boasts a thoughtfully designed structure that enhances its performance and longevity:

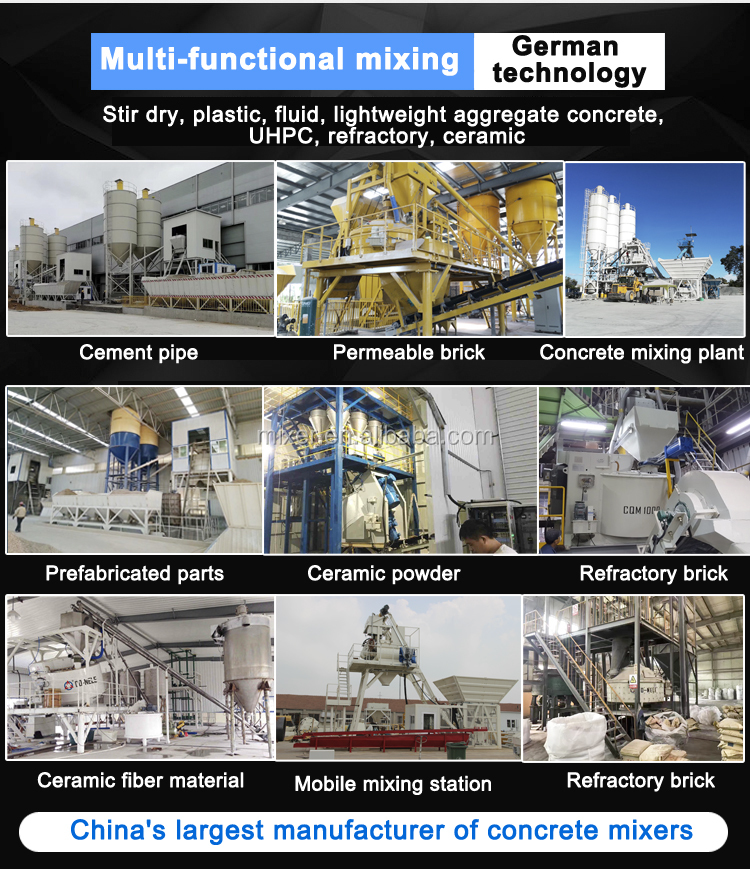

The CMP1000 Planetary Mixer is engineered for versatility across multiple sectors. Its robust design and efficient mixing action make it suitable for a wide range of materials:

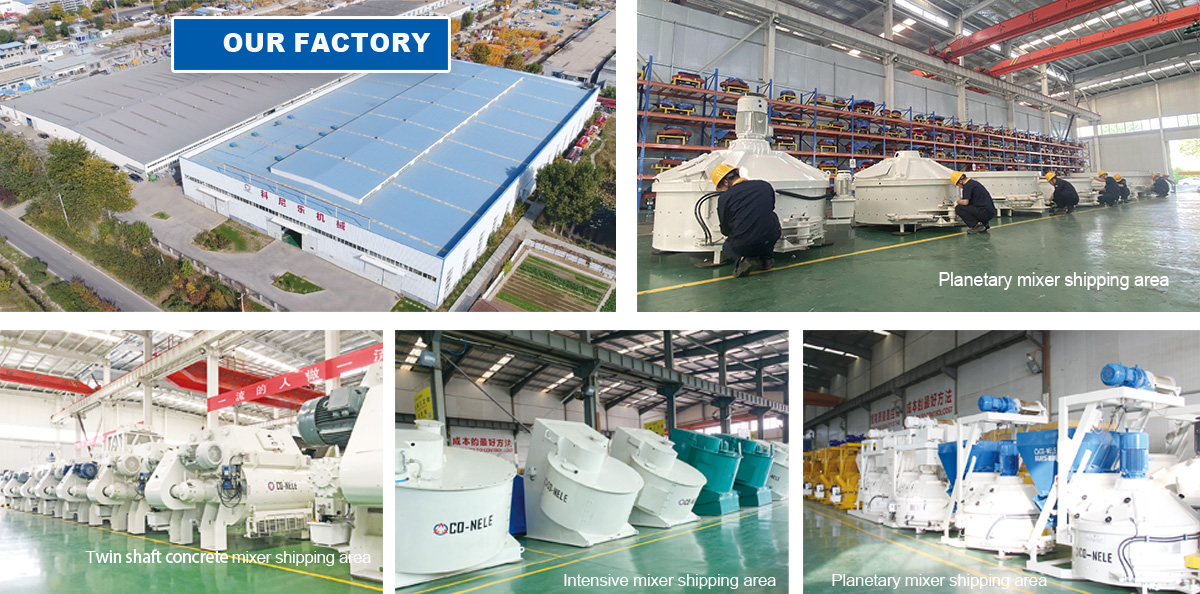

Co-Nele Machinery Co., Ltd. is a high-tech enterprise with over two decades of experience in designing and manufacturing industrial mixing equipment. The company boasts major production bases and holds over 100 national patents. It has been recognized as a "Shandong Province Manufacturing Single Champion Enterprise" and a "Shandong Province 'Specialized, Refined, Unique, and New' SME".
With a commitment to innovation and quality, Co-Nele has served more than 10,000 enterprises worldwide and has collaborated with prestigious institutions and companies like Tsinghua University, China State Construction (CSCEC), and China Railway (CREC). Their products are exported to over 80 countries and regions, solidifying their international reputation.
Co-Nele's mixers have received positive feedback from a global clientele:
"The CMP1000 mixer has significantly improved our precast component quality and shortened mixing time. Its reliability has reduced our maintenance costs."
"We use it for mixing refractory materials. Its high uniformity is impressive. The service from Co-Nele is also professional and responsive."
"After switching to Co-Nele's planetary mixer, our production efficiency saw a noticeable increase. The equipment is strong and stable even under continuous operation."
The CMP1000 Planetary Concrete Mixer from Co-Nele Machinery is a testament to advanced engineering and practical design. It combines power, precision, and durability to meet the challenges of modern industrial mixing across diverse sectors. Whether you are producing high-performance precast concrete, processing refractory materials, or working on a specialized application, the CMP1000 offers a reliable and efficient solution designed to enhance your productivity and product quality.
The transmission system features a hardened surface gear specially designed by CO-NELE. It provides high torque, low noise levels, and exceptional durability even under strict production conditions.
The patented mixing blades feature a parallelogram structure that allows them to be rotated 180° for reuse after wearing, effectively doubling their operating service life.
The CMP1000 can be configured with up to three discharge doors, which can be operated via hydraulic, pneumatic, or manual systems.
It is designed to handle dry-hard concrete, semi-dry-hard concrete, plastic concrete, UHPC, fiber-reinforced concrete, refractory materials, glass, ceramics, and specialized raw materials like mineral slag and coal ash.
It incorporates a patented upper-mounted water supply design that eliminates residual admixtures and water in the pipeline, ensuring formula purity while utilizing spiral solid cone nozzles for even misting.
The CMP1500/1000 model has an input capacity of 1500L, an output capacity of 1000L (2400 kg), and is driven by a 37 kW mixing motor.
