High mixing performance even for challenging concrete applications.
High mixture homogeneity in shorter mixing time.
Smooth transmission, high efficiency.
Uniform stirring, no dead Angle.
Good sealing: there is no leakage problem.
CO-NELE is the largest mixer manufacturer in China, with more than 10,000 mixers in more than 80 countries worldwide.

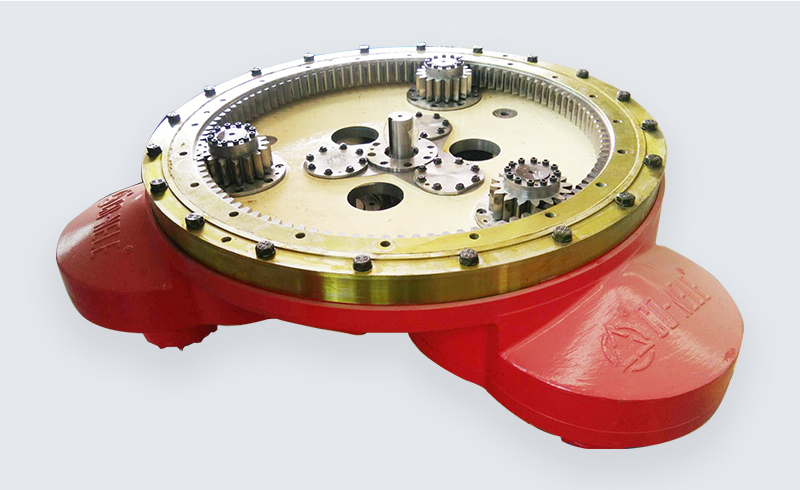

Driving System
Driving system consists of motor and hardened surface gear which is specialized designed by CO-NELE(patented)．Flexible coupling and hydraulic coupling(option)connects motor and gearbox. The gearbox is designed by CO-NELE (completely independent intellectual property rights owned) absorbing European advanced technology. The improved model has lower noise，longer torque and more durable．

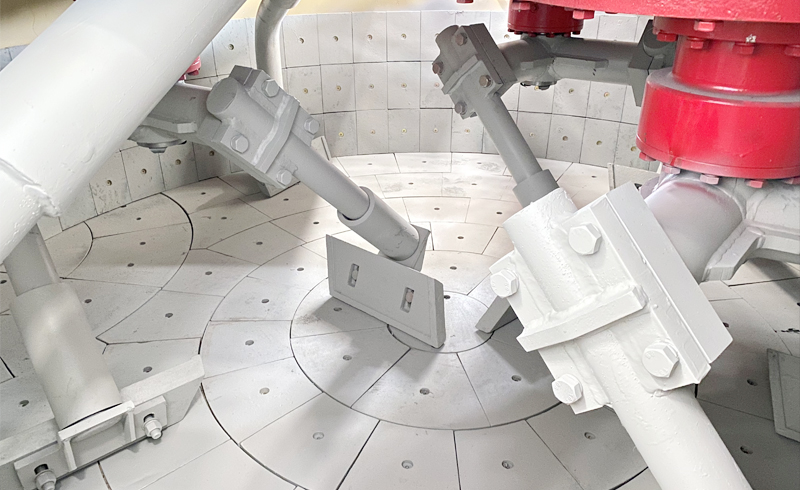

Compulsory Mixing Action
Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Mixing blades are designed in parallelogram structure(patented), which can be turned 180°for reuse to increase service life．Specialized discharge scraper has been designed according to discharge speed in order to increase productivity. The movement of the material inside the trough is smooth and continuous．the blades track covers the whole bottom of the trough after a cycle．

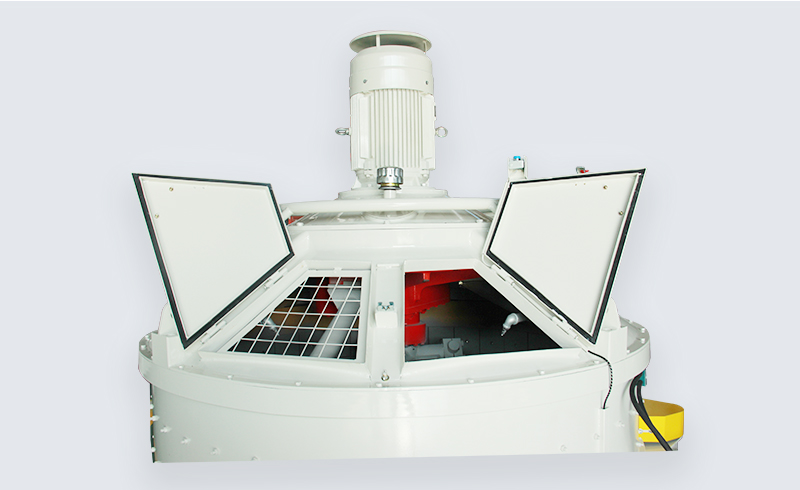

Observing Port & Security
There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power. In order to improve the security of using the product，reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient．
Discharging System
According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable．
Frequently Asked Questions (FAQ)

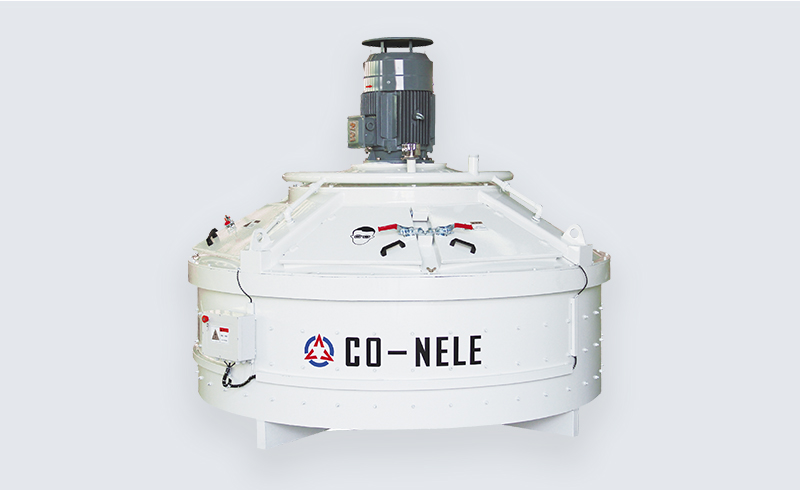

What capacities are available for the CMP Planetary Concrete Mixer?
The CMP series provides a wide range of output capacities ranging from 50L (CMP50) up to 5000L (CMP5000) per batch to suit both small-scale laboratory trials and large industrial concrete production.
How does the driving system ensure low noise and high torque?
The gearbox is custom-designed by CO-NELE with patented technology absorbing European advanced design. Paired with a hardened gear surface and flexible/hydraulic coupling options, it yields lower noise, extended torque, and longer service life.
What feature extends the service life of the mixing blades?
The mixing blades feature a patented parallelogram structure. Once worn, they can be turned 180° for reuse, effectively doubling their operational lifespan and reducing maintenance costs.
Can I inspect the mixing process safely while the mixer is running?
Yes, an observing port is integrated directly into the maintaining door, allowing safe visual inspection without turning off the power. Highly sensitive security switches are also equipped to protect workers during maintenance.
What operation modes and sealing mechanisms are available for discharging?
Discharging doors can be operated via hydraulic, pneumatic, or manual systems, supporting up to 3 discharge doors per unit. Special sealing devices ensure reliable, leak-free operation.
What makes CO-NELE planetary concrete mixers unique in high-homogeneity applications?
Compulsory mixing is achieved through composite extruding and overturning movements of rotating planets and blades. The blade path covers the entire trough bottom within a single cycle, leaving no dead angles.
