When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China 750L Adsorbent Granulation Machine Manufacturer, Machine

1 / 2

China 750L Adsorbent Granulation Machine Manufacturer, Machine

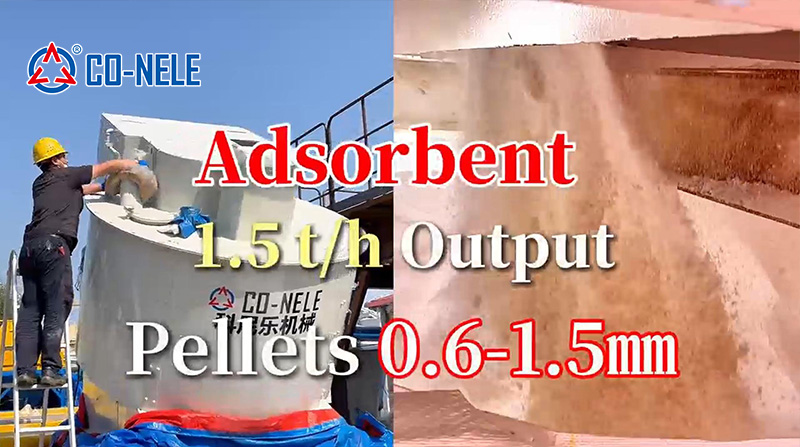

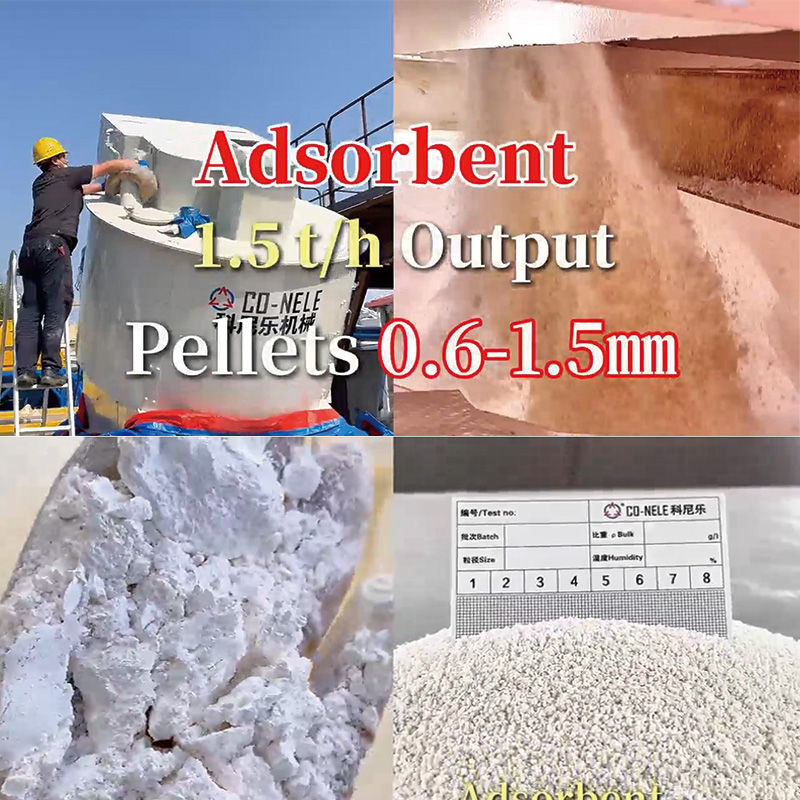

750L intensive mixer for adsorbent granulation, 1.5t/h output, 8‑min batch cycle, 0.6‑1.5mm pellets, 32N compressive strength, water‑insoluble, ideal for industrial adsorbent mass production.

Send Inquiry

Product Description

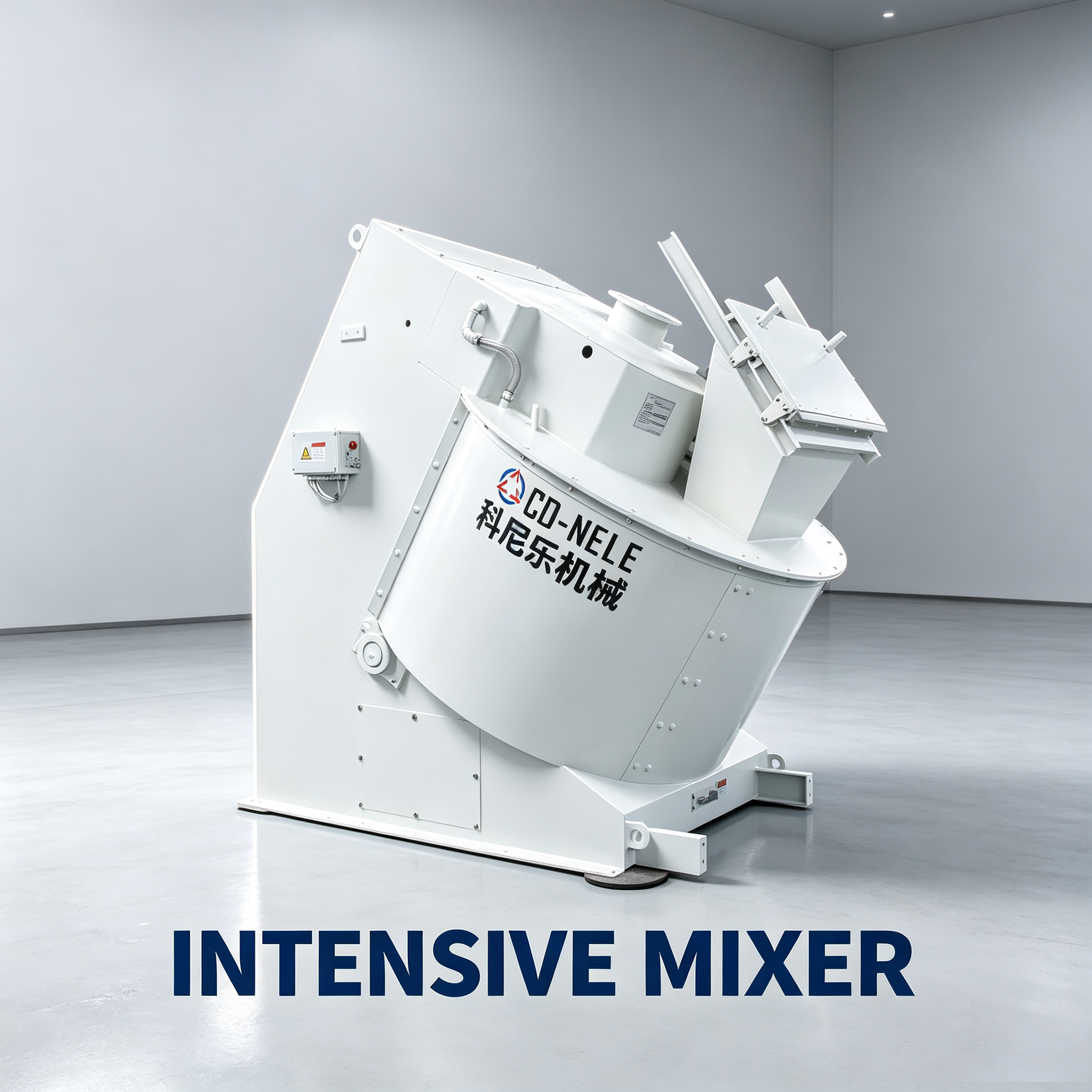

CO-NELE 750L intensive mixer is specially designed for batch granulation of adsorbent powder, delivering stable industrial‑scale production with high efficiency and consistent particle quality.

Intensive Mixer for Adsorbent Granulation

750L Adsorbent Granulation Machine Key Production Parameters

Effective Volume

750L

Hourly Output

1.5 tons/h

Single Batch Cycle

8 min

Feeding to discharging

Final Particle Size

0.6–1.5 mm

Spherical pellets

Compressive Strength

32N

Single‑pellet

Water Resistance

Insoluble in water

No collapse after immersion

Feeding Capacity

200 kg

Per batch

Working Principle & Granulation Process

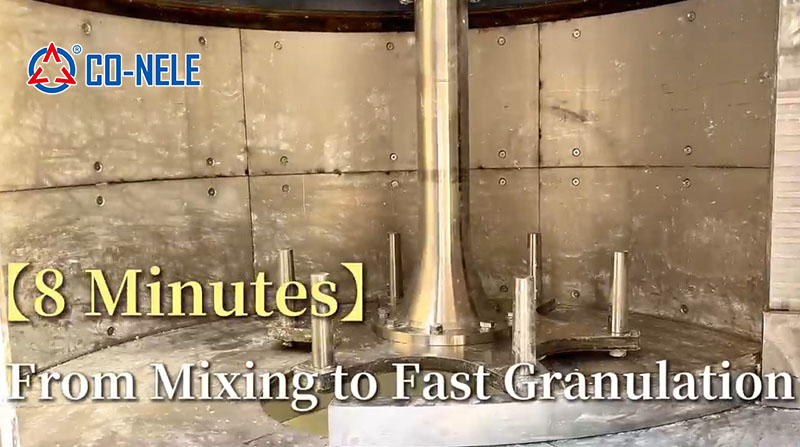

750L Adsorbent Granulation Machine adopting counter‑current high‑speed mixing and side cutter technology, the 750L intensive mixer realizes semi‑dry spray granulation.

Feeding (1 min)

CR19 adsorbent powder is loaded into the mixing tank.

Pre‑mixing (2 min)

Uniform dispersion of raw powder.

Spheronization (4 min)

Binder sprayed evenly for dense spherical granulation (0.6–1.5 mm).

Discharging (1 min)

Quick tilting discharge with no material residue.

Advantages for Adsorbent Granulation

High‑strength Pellet Forming

Dense internal structure ensures stable 32N compressive strength and excellent water resistance.

Precise Particle Size Control

Variable‑frequency speed regulation keeps pellets concentrated at 0.6–1.5 mm with minimal fine powder.

High Efficiency & Stable Output

8‑minute fast batch cycle supports continuous 1.5 tons/h industrial production.

Dust‑free Closed Production

Improved raw material utilization rate and clean working environment.

Consistent Batch Quality

Standardized time, speed and binder dosage for uniform finished products.

Applications

Widely used in mass production of adsorbents for wastewater treatment, waste gas VOCs removal, heavy metal adsorption, catalyst carriers and chemical separation industries.

Frequently Asked Questions (FAQ)

What is the production capacity of the CO-NELE 750L intensive mixer?

The machine features a 750L effective volume, supporting a feeding capacity of 200 kg per batch and achieving an hourly output of 1.5 tons/h.

How long does a single batch granulation cycle take?

The entire single batch cycle takes approximately 8 minutes from feeding to discharging (Feeding 1 min, Pre-mixing 2 min, Spheronization 4 min, Discharging 1 min).

What quality specifications do the finished adsorbent pellets achieve?

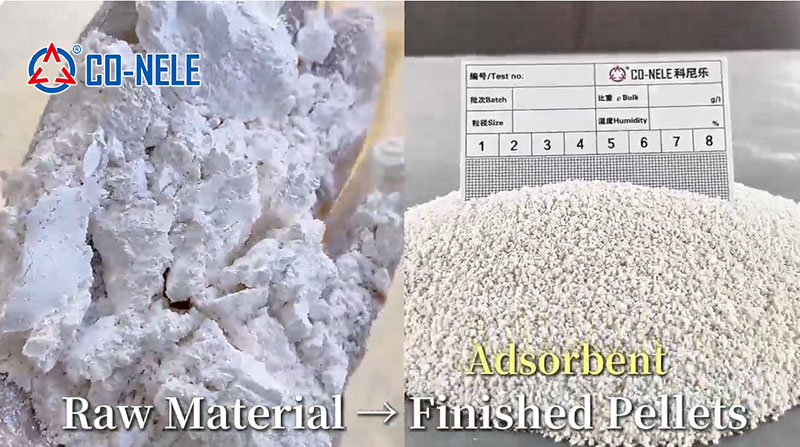

The spherical pellets reach a size range of 0.6–1.5 mm with a single-pellet compressive strength of 32N. They are insoluble in water and will not collapse after immersion.

What technology is used for the granulation process?

The machine utilizes counter-current high-speed mixing and side cutter technology to execute semi-dry spray granulation for optimal pellet forming.

Which industries can benefit from this adsorbent granulator?

It is widely applicable in wastewater treatment, waste gas VOCs removal, heavy metal adsorption, catalyst carriers, and chemical separation industries.
