When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Laboratory twin shaft concrete mixer Factory, Machine

1 / 2

China Laboratory twin shaft concrete mixer Factory, Machine

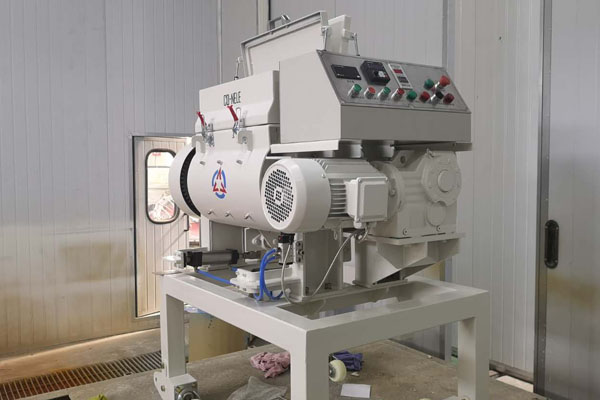

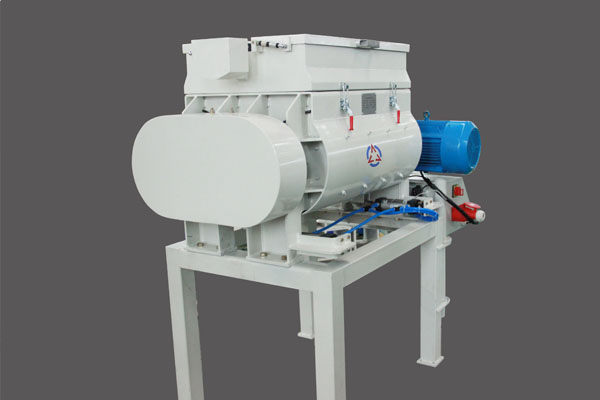

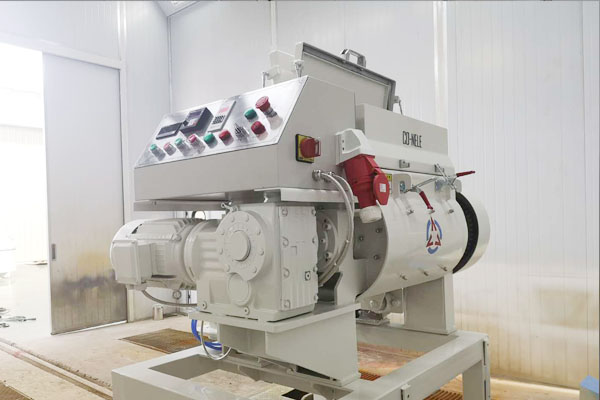

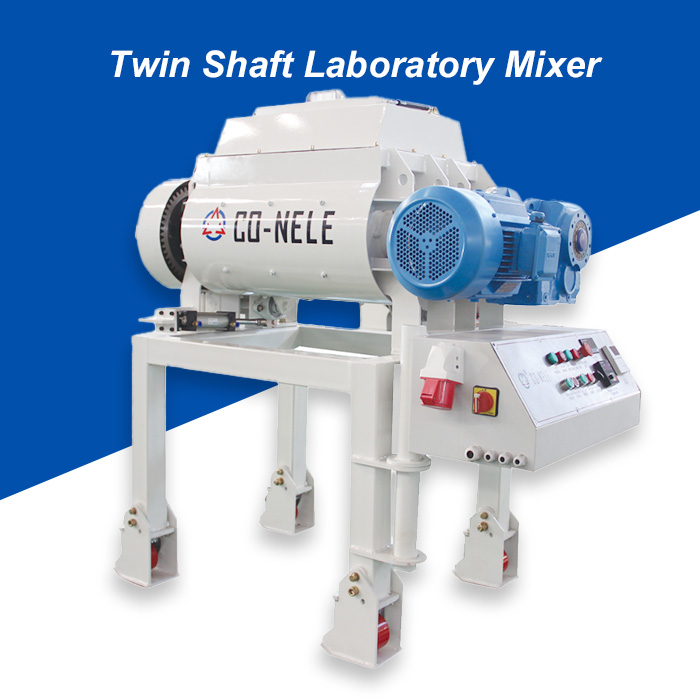

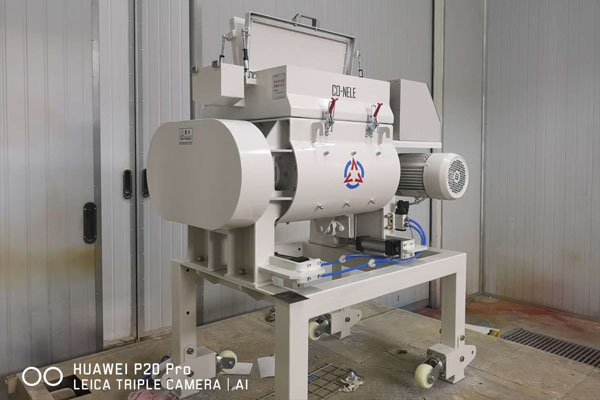

CSS60 Laboratory twin shaft concrete mixer,Used in laboratory and school research.Mixing drum volume of 90L.

Send Inquiry

Product Description

CSS60 Experiment Double Shaft Mixer Configuration

Capacity Feeding: 90L | Output: 60L

Stirring Power 5.5 KW

Max Particle Size ≤ 65 mm

Reducer Hard Tooth Surface Special Reducer

Discharge Method Double Cylinder (SC50×100)

Lining & Blade Materials Wear-resistant Steel Plate

Dimensions & Weight 1200*800*1000 mm | 1000 kg

Detailed Configuration List (1 Set)

Mixer Model	Structure Component	Amount
CSS60 Twin Shaft Concrete Mixer	Mixing motor	1
	Reducer	1
	Manual lubrication system	1
	Mixing blades	1
	Mixing arm	1
	Liner	1
	Discharge door cylinder	2
	Synchronous gear	2
