When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Double screw concrete mixer Factory, Machine

1 / 1

China Double screw concrete mixer Factory, Machine

Send Inquiry

Product Description

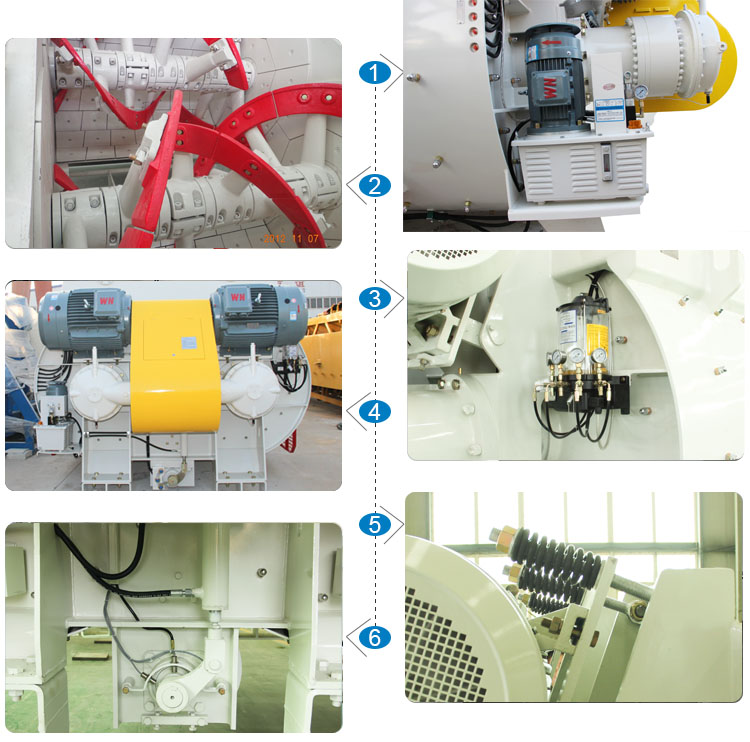

Double screw concrete mixer main features:

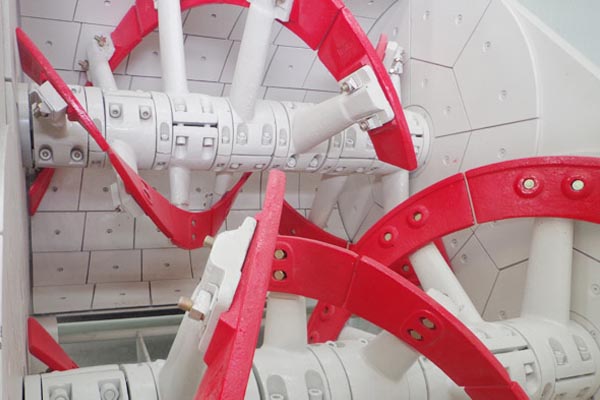

1. Mixing blade adopts spiral layout, which increases efficiency by 15% and energy saving by 15%.

2. Big pitch design concept is adopted to reduce operating resistance, material accumulation and low shaft holding rate.

3. Shaft end seal adopts the integral labyrinth seal structure composed of floating oil seal ring, special seal and mechanical seal. It not only works reliably and has a long life, but also is easy to be disassembled and replaced.

4. Equipped with self-tensioning device for belt to avoid abnormal wear of belt and reduce labor intensity of maintenance personnel;

5. Eccentric unloading door with large opening design has reliable sealing, fast discharging and low wear.

6. Italian original gearbox, large torque, external forced cooling device, more reliable for long time operation;

7. The industry creates the intelligent Internet of things, which is equipped with intelligent detection alarm, maintenance prompt, GPS positioning and WeChat push function.

Frequently Asked Questions

How does the spiral mixing blade layout improve performance?

The spiral layout increases mixing efficiency by 15% and provides an energy saving of 15% during operation.

What are the advantages of the big pitch design concept?

The big pitch design concept effectively reduces operating resistance, prevents material accumulation, and lowers the shaft holding rate.

How is the shaft end seal structured for long service life?

It features an integral labyrinth seal structure composed of a floating oil seal ring, a special seal, and a mechanical seal, ensuring reliable long-term performance and easy disassembly or replacement.

How does the self-tensioning belt device assist maintenance?

It prevents abnormal belt wear and reduces the labor intensity required by maintenance personnel.

What features ensure the gearbox operates reliably over long periods?

It utilizes an Italian original gearbox with large torque and an external forced cooling device designed for continuous, reliable operation.

What intelligent IoT functions are integrated into this mixer?

The machine features intelligent Internet of Things integration equipped with detection alarms, maintenance prompts, GPS positioning, and WeChat push notifications.
