When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

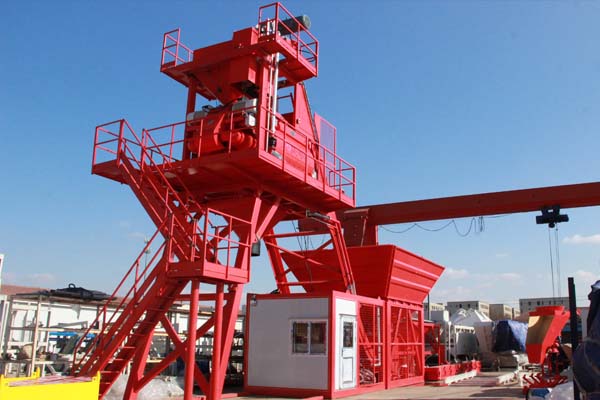

China 60 m³ Mobile concrete mixing plant MBP15 Manufacturer, Machine

1 / 1

China 60 m³ Mobile concrete mixing plant MBP15 Manufacturer, Machine

Send Inquiry

Product Description

60m³/h Mobile Concrete Batching Plant: Mobile Concrete Batching Plant Series can be equipped with either 1000L planetary concrete mixer or twin shaft concrete mixer. Provides 60m³/h vibrated concrete production capacity.

CO-NELE mobile concrete plant is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc. Provides the following advantages to its users:

Quick and easy installation (only 1 day)

Cost-effective transportation (the main unit can be transported by one truck trailer)

Due to the special design, it can be installed on a confined space

Quick and easy jobsite relocation

Low foundation cost (installation on a flat concrete surface)

Minimizes concrete transportation cost and environmental impact

Easy maintenance and low operating cost

High production performance with optimized automation system

To get more details about the advanced manufacturing technology and the components of CO-NELE Concrete Batching Plants, please visit our Why Should I Prefer CO-NELE section.

Technical Specifications

Item			Type
Model			MBP08	MBP10	MBP15	MBP20
Output (theoretical)		m³/h	30	40	60	80
Discharging Height		mm	4000	4000	4000	4000
Mixer Unit	Dry filling	L	1125	1500	2250	3000
	Output	L	750	1000	1500	2000
	Mixing power	kw	30	37	30*2	37*2
Weighing and feeder skip	Drive power	kw	11	18.5	22	37
	Medium speed	m/s	0.5	0.5	0.5	0.5
	Capacity	L	1125	1500	2250	3000
	Weighing precision	%	±2	±2	±2	±2
Cement weighing system	Capacity	L	325	425	625	850
Cement weighing system	Weighing precision	%	±1	±1	±1	±1
Liquid weighing system	Capacity	L	165	220	330	440
	Water weighing precision	%	±1	±1	±1	±1
	Admixture weighing precision	%	±2	±2	±2	±2
Cement screw conveyor	External	mm	Φ168	Φ219	Φ219	Φ273
	Speed	t/h	20	35	35	60
	Power	kw	5.5	7.5	7.5	11
Control mode			Automatic	Automatic	Automatic	Automatic
Power		kw	53	69	97	129
Weight		T	15	18	22	30

Mobile Batching Plant Structure

Mobile batching plant consists of the following components: Mixing platform, concrete mixer, aggregate storage hopper, aggregate weighing system, aggregate skip hoist, water weighing system, cement weighing system, control cabin and so on. All components connect with each other to form independent equipment.

Mobile concrete batching plant component preview

Frequently Asked Questions (FAQ)

What is the concrete production capacity of the 60m³/h mobile concrete plant?

The 60m³/h mobile concrete batching plant (MBP15 model) provides a theoretical vibrated concrete output capacity of 60 cubic meters per hour, suitable for plastic concrete and dry hard concrete mixing.

How long does it take to assemble and install the plant on site?

Installation is exceptionally fast and efficient. The main unit can be fully set up and ready for operation in just 1 day on a flat concrete surface.

What mixer options are available for this mobile batching plant?

The plant can be flexibly equipped with either a 1000L planetary concrete mixer or a twin shaft concrete mixer, depending on your project mixing requirements.

How is the mobile plant transported to a new project location?

Thanks to its modular design, the entire main unit of the batching plant can be conveniently transported by a single truck trailer, significantly lowering transit costs.

Does installation require extensive ground foundation works?

No, complex foundation works are not required. The machine can be positioned directly on a flat concrete ground surface, keeping foundation costs to a minimum.
