When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

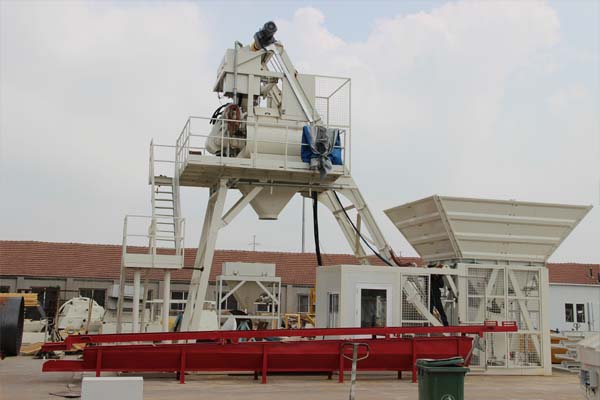

China 40m3/h Mobile concrete batching plant MBP10 Factory, Machine

1 / 1

China 40m3/h Mobile concrete batching plant MBP10 Factory, Machine

Send Inquiry

Product Description

40m3/h Mobile Concrete Batching Plant which is the smallest capacity concrete plant of CO-NELE Mobile Concrete Batching Plant Series can be equipped with either 1500l planetary concrete mixer or twin shaft concrete mixer. provides 40 m³/h vibrated concrete production capacity. CO-NELE mobile concrete plant is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc. provides the following advantages to its users:

Quick and easy installation (only 1 day)
Cost-effective transportation (the main unit can be transported by one truck trailer)
Due to the special design, it can be installed on a confined space
Quick and easy jobsite relocation
Low foundation cost (installation on a flat concrete surface)
Minimizes the concrete transportation cost and environmental impact as well
Easy maintenance and low operating cost
High production performance with optimized automation system

To get more details about the advanced manufacturing technology and the components of CO-NELE Concrete Batching Plants, please visit our Why Should I Prefer CO-NELE?

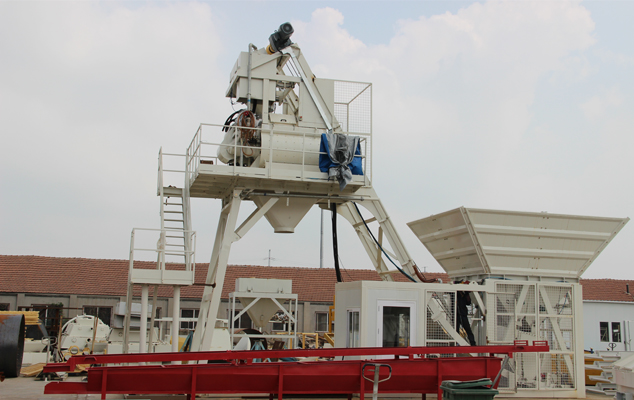

40m3/h Mobile concrete mixing plant MBP10

Item			Type
Item			MBP08	MBP10	MBP15	MBP20
Output(theoretical)		m3/h	30	40	60	80
Discharging Height		mm	4000	4000	4000	4000
Mixer Unit	Dry filling	L	1125	1500	2250	3000
	Output	L	750	1000	1500	2000
	Mixing power	kw	30	37	30*2	37*2
weighing and feeder skip	Drive power	kw	11	18.5	22	37
	Medium speed	m/s	0.5	0.5	0.5	0.5
	Capacity	L	1125	1500	2250	3000
	Weighing precision	%	±2	±2	±2	±2
Cement weighing system	Capacity	L	325	425	625	850
Cement weighing system	Weighing precision	%	±1	±1	±1	±1
Liquid weighing systemS	Capacity	L	165	220	330	440
	Water weighing precision	%	±1	±1	±1	±1
	Admixture weighing precision	%	±2	±2	±2	±2
Cement screw conveyor	External	mm	Φ168	Φ219	Φ219	Φ273
	Speed	t/h	20	35	35	60
	Power	kw	5.5	7.5	7.5	11
Control mode			Automatic	Automatic	Automatic	Automatic
Power		kw	53	69	97	129
Weight		T	15	18	22	30

Mobile concrete mixing plant transport state

Frequently Asked Questions (FAQ)

Q: What is the production capacity of the MBP10 mobile concrete plant?

A: The MBP10 model provides a theoretical vibrated concrete production capacity of 40 m³/h.

Q: What type of mixers can be equipped with this mobile plant?

A: It can be equipped with either a 1500L planetary concrete mixer or a twin shaft concrete mixer based on project requirements.

Q: How long does it take to install the mobile concrete batching plant?

A: Installation is quick and easy, requiring only 1 day to set up on site.

Q: What are the foundation requirements for installation?

A: It features a low foundation cost and can be installed directly on a flat concrete surface.

Q: How is the main unit transported between jobsites?

A: Due to its compact and mobile design, the main unit can be conveniently transported using a single truck trailer.

Q: Is this concrete plant suitable for small or restricted spaces?

A: Yes, thanks to its special design, it can be easily installed and operated in confined jobsite spaces.
