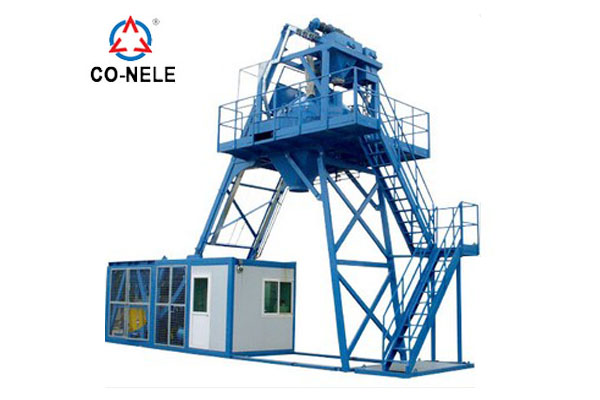

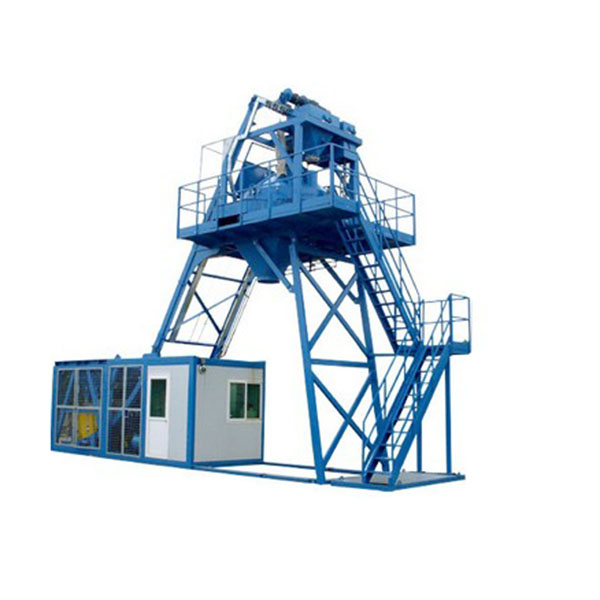

30m³/h Mobile Concrete Batching Plant, which is the smallest capacity concrete plant of the CO-NELE Mobile Concrete Batching Plant Series, can be equipped with either a 750L planetary concrete mixer or twin shaft concrete mixer. It provides 30 m³/h vibrated concrete production capacity. CO-NELE mobile concrete plant is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc.
Quick and easy installation (only 1 day)
Cost-effective transportation (the main unit can be transported by one truck trailer)
Due to the special design, it can be installed on a confined space
Quick and easy jobsite relocation
Low foundation cost (installation on a flat concrete surface)
Minimizes concrete transportation cost and environmental impact
Easy maintenance and low operating cost
High production performance with optimized automation system
To get more details about the advanced manufacturing technology and the components of CO-NELE Concrete Batching Plants, please visit our Why Should I Prefer CO-NELE?
After realizing the growing need for mobility and flexibility day by day in the concrete and construction sector, CO-NELE has designed and produced the first mobile concrete batching plant in China 20 years ago. Until now, from Canada to Germany, from England to South Africa, more than 1000 units of CO-NELE mobile concrete batching plants were installed in more than 100 countries carry on concrete production in important projects.

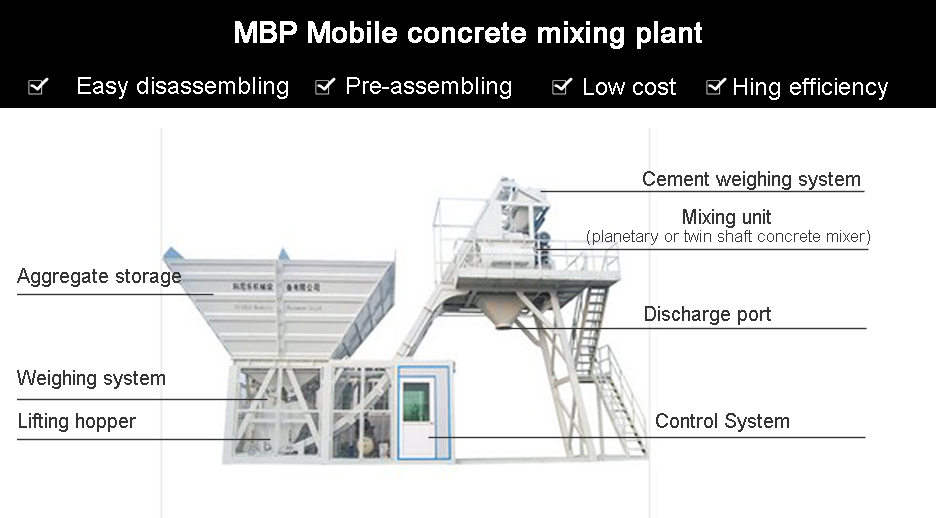

Main Components
Mobile batching plant consists of the following components: Mixing platform, concrete mixer, aggregate storage hopper, aggregate weighing system, aggregate skip hoist, water weighing system, cement weighing system, control cabin and so on. All components connect each other to form independent equipment.
Technical Specifications
Item
Type
MBP08
MBP10
MBP15
MBP20
Output (theoretical)
m³/h
30
40
60
80
Discharging Height
mm
4000
4000
4000
4000
Mixer Unit
Dry filling
L
1125
1500
2250
3000
Output
L
750
1000
1500
2000
Mixing power
kw
30
37
30*2
37*2
Weighing and feeder skip
Drive power
kw
11
18.5
22
37
Medium speed
m/s
0.5
0.5
0.5
0.5
Capacity
L
1125
1500
2250
3000
Weighing precision
%
±2
±2
±2
±2
Cement weighing system
Capacity
L
325
425
625
850
Weighing precision
%
±1
±1
±1
±1
Liquid weighing systems
Capacity
L
165
220
330
440
Water weighing precision
%
±1
±1
±1
±1
Admixture weighing precision
%
±2
±2
±2
±2
Cement screw conveyor
External
mm
Φ168
Φ219
Φ219
Φ273
Speed
t/h
20
35
35
60
Power
kw
5.5
7.5
7.5
11
Control mode
Automatic
Automatic
Automatic
Automatic
Power
kw
53
69
97
129
Weight
T
15
18
22
30

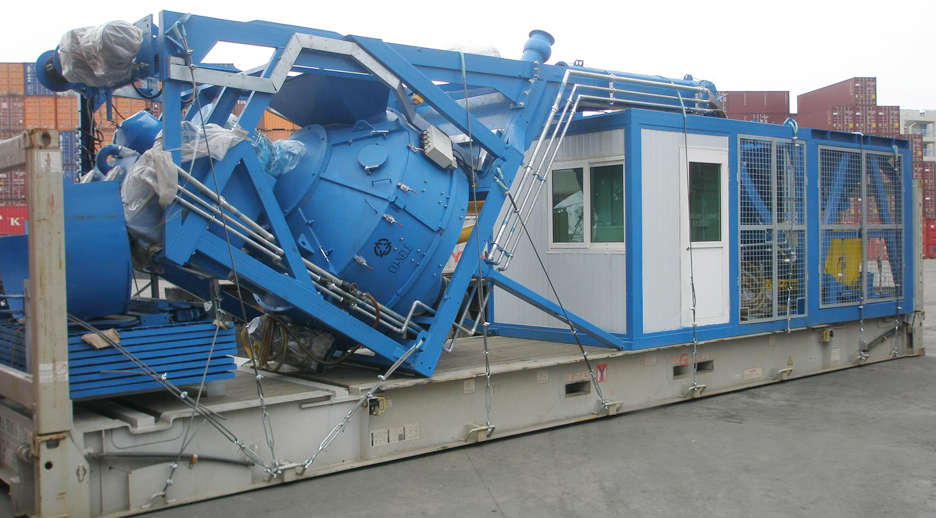

Mobile Concrete Mixing Plant Transport State
Frequently Asked Questions (FAQ)
What is the production capacity of the 30m³/h mobile concrete batching plant?
The plant provides a concrete production capacity of 30 m³/h of vibrated concrete, making it an ideal choice for short-term and medium-term construction projects.
What type of concrete mixer can be equipped in this plant?
The plant can be equipped with either a 750L planetary concrete mixer or a twin shaft concrete mixer, depending on your project requirements.
How long does it take to install the plant at a jobsite?
Thanks to its modular and optimized mobile design, installation is quick and easy, typically taking only 1 day.
What kind of foundation is required for installation?
The plant requires minimal foundation work and can be installed directly on a flat concrete surface, significantly reducing foundation costs.
How easily can the mobile concrete batching plant be transported?
The main unit of the batching plant can be transported using a single truck trailer, ensuring cost-effective transport and swift jobsite relocation.
