When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China CR08 Intensive lab Mixer Manufacturer, Factory

1 / 1

China CR08 Intensive lab Mixer Manufacturer, Factory

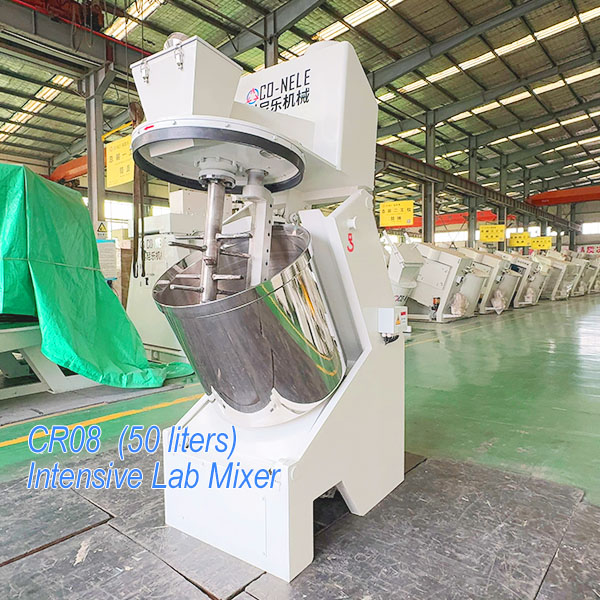

CO-NELE CR08 Intensive Lab Mixer is a compact desktop high-shear mixing and granulating equipment designed for laboratory formula R&D and small-batch pilot trials. Adopting industrial-level 3D turbulent intensive mixing principle, it completes uniform powder mixing, kneading and one-step granulation for refractory, ceramic, magnetic and battery materials. Featuring small footprint, precise adjustable parameters and repeatable test data, this lab intensive mixer perfectly bridges laboratory research and industrial mass production.

Send Inquiry

Product Description

CR08 intensive lab mixer is a compact, high-shear mixing and granulating machine designed for small-scale R&D, formulation development, and pilot-scale production in industries like ceramics, Glass, metallurgy, chemical, Lithium battery positive and negative electrode materials. It combines mixing, granulation, and sometimes drying in a single unit, making it ideal for lab-scale trials before scaling up to production.

Optional Features

Heating/cooling jacket for temperature control.
Vacuum or inert gas options for sensitive materials.
Integrated spray system for liquid binder addition.

CR08 Intensive Lab Mixer Application Industry

[Application Industry]:

lithium battery, electromagnet ferrite, refractory material, glass, ceramics, foundry sand, metallurgy, environmental protection, building materials, fertilizer, welding machine, friction material, carbon, solid waste industry, etc.

[Functions]:

dispersing, granulating, pelletizing, kneading, heating, cooling, vacuum, coating, emulsification, beating, drying, reaction, mixing, wetting, coalescence

[Products]:

Intensive Mixer, Laboratory Mixer, Inclined Mixer, Granulator Mixer

Intensive Mixer Parameters

Intensive Mixer	Hourly Production Capacity: T/H	Mixing Quantity: Kg/batch	Production Capacity: m³/h	Batch/Liter	Discharging
CR05	0.6	30-40	0.5	25	Hydraulic center discharge
CR08	1.2	60-80	1	50	Hydraulic center discharge
CR09	2.4	120-140	2	100	Hydraulic center discharge
CRV09	3.6	180-200	3	150	Hydraulic center discharge
CR11	6	300-350	5	250	Hydraulic center discharge
CR15M	8.4	420-450	7	350	Hydraulic center discharge
CR15	12	600-650	10	500	Hydraulic center discharge
CRV15	14.4	720-750	12	600	Hydraulic center discharge
CRV19	24	330-1000	20	1000	Hydraulic center discharge

Frequently Asked Questions (FAQ)

What is the primary application of the CR08 intensive lab mixer?

The CR08 intensive lab mixer is specially engineered for small-scale R&D, formulation development, and pilot-scale production across demanding industries including ceramics, glass, metallurgy, chemical processing, and lithium battery electrode materials.

What key processes can be performed within a single CR08 unit?

It is a multi-functional unit capable of dispersing, granulating, pelletizing, kneading, heating, cooling, vacuum mixing, coating, emulsification, drying, reaction, wetting, and coalescence.

What optional features are available for customized processing?

Optional features include heating/cooling jackets for temperature-sensitive processes, vacuum or inert gas purge options for sensitive compounds, and an integrated spray system for controlled liquid binder addition.

What is the mixing capacity of the CR08 model?

The CR08 model offers an hourly production capacity of 1.2 T/H, a batch mixing quantity of 60-80 Kg (50 Liters per batch), and a volumetric production capacity of 1 m³/h.

How does the discharging mechanism operate on these mixers?

All models across the Intensive Mixer series, from the compact CR05 up to the high-capacity CRV19, utilize a reliable hydraulic center discharge mechanism for efficient material unloading.

What other product variants are available in this intensive mixer line?

The intensive mixer lineup includes Intensive Mixers, Laboratory Mixers, Inclined Mixers, and Granulator Mixers ranging in production capacities from 0.6 T/H up to 24 T/H.
