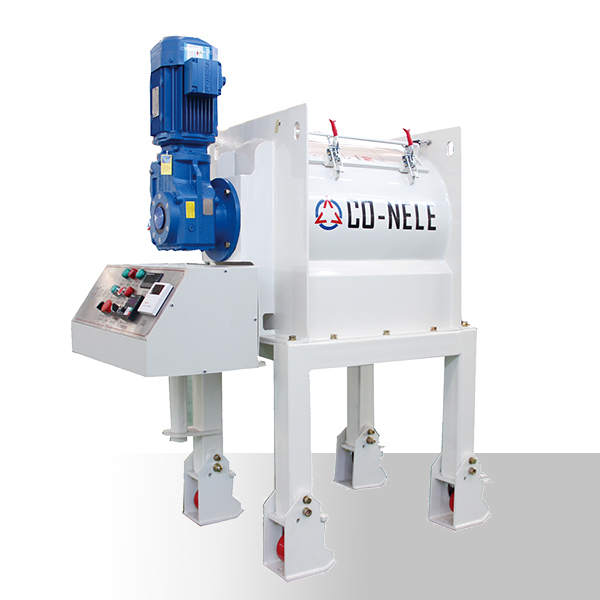

China CDW100 Laboratory Dry Mortar Mixer Manufacturer, Factory

1 / 1

China CDW100 Laboratory Dry Mortar Mixer Manufacturer, Factory

CO‑NELE CDW100 Laboratory Dry Mortar Mixer is a professional pilot‑scale mixing equipment with effective capacity of 100 liters, built for dry‑mixed mortar, wall putty, tile adhesive, cement‑based composite powder and other dry‑powder formulation research and small‑batch trial‑production.

Send Inquiry

Product Description

Laboratory dry mortar mixer	Technical Parameters
CDW Laboratory dry mortar mixer	Total capacity: 100L Working capacity: 40-60L Working weight: 60-90kg Mixing power: 3kw Mixing blade: 5

CDW100 Laboratory dry mortar mixer

Small footprint, easy to move and resettlement.

Differents kinds of mixing paddles and plough type stirringdevice ensure low agitation resistance, high uniformity.

The shaft sealing is made of fiber packing can improve sealingperformance and service life. lt can be removed and replaced easy.

Frequency conversion control system, intuitive operation. accurate and reliable experimental data

Pneumatic large discharging door with silicon soft sealing material can quickly discharge materials and ensureeak-tightness

Visual observation gate can safely control during theworking process.

CDW100 Laboratory dry mortar mixer Working Principle

Use mechanical force to evenly mix two or more powders. Through the two reverse-running stirring devices designed for the single-shaft forced mixer in the mixer, the materials are sheared, rubbed, and squeezed to achieve uniform mixing.

CDW100 Laboratory dry mortar mixer Structural Features

Drive mode:

Adopt planetary reducer drive method, with large torque, high safety factor, stable operation, and can effectively improve stability and service life.

Stirring arm and main shaft:

The stirring arm adopts a removable structure for easy installation and maintenance; the stirring main shaft adopts a hollow shaft structure with higher torsional strength.

Stirring knife:

It adopts a blade structure, with efficient stirring effect and strong homogeneity.

Transmission belt:

The device can automatically adjust the tightness of the belt, improve transmission efficiency, and reduce the labor of workers.

Sampler:

The sampler using a pneumatic device can perform real-time sampling and inspection of the stirring material, so as to determine the mixing time and ensure the mixing quality.

Discharge door:

The discharge door adopts a structure of multiple small openings, which allows for rapid discharge and less residual material. Each opening corresponds to a disassembled and replaced discharge door, which is convenient for maintenance. The transmission structure of the discharge door has a self-locking function, which can prevent the discharge door from opening when the air supply is suddenly interrupted, affecting the mixing of materials.

CDW100 Laboratory dry mortar mixer Performance advantages

Good mixing effect: Equipped with a high-speed rotating flying knife, it can effectively disperse the agglomerated fibers, so that the materials can be continuously circulated and sheared in an all-round manner, so as to achieve the purpose of rapid and gentle mixing.

Wide range of applications: It can be used for mixing a variety of dry powders and fine granular materials, such as putty powder, plaster, colored cement, various mineral powders, etc., and is suitable for building materials, special mortars, flooring, wall coatings and other industries.

Easy operation: The structural design is reasonable, the operation is intuitive, and the equipment is sturdy and durable, with a low failure rate, which is convenient for daily use and maintenance.

CDW100 Laboratory dry mortar mixer Application areas

Mainly used in scientific research and small-scale production fields, such as small sample tests when building materials companies develop new products, and sample preparation before mortar performance testing in construction laboratories, etc.

Frequently Asked Questions (FAQ)

What is the total capacity and optimal working capacity of the CDW100 mixer?

The CDW100 laboratory dry mortar mixer has a total capacity of 100L, with a recommended working capacity of 40-60L and a working weight capacity of 60-90kg.

What materials can be mixed with the CDW100 dry mortar mixer?

It is designed for a variety of dry powders and fine granular materials, including putty powder, plaster, colored cement, and various mineral powders used in building materials, wall coatings, and special mortar development.

How does the machine achieve high mixing uniformity and fiber dispersion?

The equipment utilizes high-speed rotating flying knives combined with plough-type stirring devices and reverse-running mixing paddles to shear, rub, and disperse agglomerated fibers effectively.

What type of drive and control system does this laboratory mixer feature?

It uses a planetary reducer drive system delivering large torque and high operational stability, paired with a frequency conversion control system for accurate and intuitive experimental operation.

Is the CDW100 easy to clean and maintain?

Yes, it includes removable stirring arms, replaceable fiber packing shaft seals, and a modular pneumatic discharge door with silicon soft sealing for easy cleaning, low maintenance, and quick material discharge.

How does the pneumatic sampler function during operation?

The pneumatic sampling device allows operators to perform real-time sampling and quality inspection without stopping the machine, ensuring optimal mixing time and uniform quality.
