When should I choose a planetary counter-current mixer instead of a twin shaft mixer?

Choose a vertical-shaft planetary counter-current mixer when the mix is dry, fibre-reinforced, pigmented or ultra-high performance: UHPC, GFRC, refractory castables, dry-cast paving blocks and precast elements requiring homogeneity below 5% coefficient of variation. A twin shaft mixer is the more economical choice for high-throughput ready-mix and wet concrete above 2 m³ per batch, where cycle times of 30-45 seconds matter more than micro-homogeneity.

How long does a CO-NELE mixing pan liner and blade set last?

With standard high-chrome wear parts, liners and mixing arms typically run 90,000-150,000 batches on normal concrete and 40,000-60,000 batches on abrasive mixes such as refractory castables or quartz-rich UHPC. All wear parts are bolt-on and replaceable in the field, and CO-NELE keeps interchangeable spares for every model produced since 2004.

Can CO-NELE run a trial with my own raw material before I place an order?

Yes. Our laboratory in Qingdao operates lab-scale intensive mixers and granulators from 5 to 75 litres. Send 10-20 kg of your powder or aggregate with the target particle size, moisture and capacity, and our process engineers return a test report with granule sphericity, bulk density, mixing time and the recommended production model.

What voltage, documentation and after-sales support do export buyers receive?

Machines are built to the buyer's local supply (220V/380V/415V/440V, 50 or 60 Hz), supplied with CE-compliant electrical design on request, foundation and wiring drawings, an English operation and maintenance manual, and a 12-month warranty on the drive unit. Installation guidance is delivered by video commissioning or by resident engineers; spare parts ship from stock in Qingdao.

China Planetary mixer for concrete block bricks in Russia Manufacturer, Machine

1 / 1

China Planetary mixer for concrete block bricks in Russia Manufacturer, Machine

Send Inquiry

Product Description

Planetary concrete mixer produces concrete bricks Main Features

1) High mixing efficiency and high homogeneity

2) Easy to installment and maintain, No leaking problem.

3) Running in a high automatization and intellectualization

4) Planetary concrete mixer equipped with temperature and humidity tester (high-precision real-time measurement of material temperature and humidity)

5) High measurement accuracy

6) Environmentally friendly feeding and anti - fall integrated lifting hopper

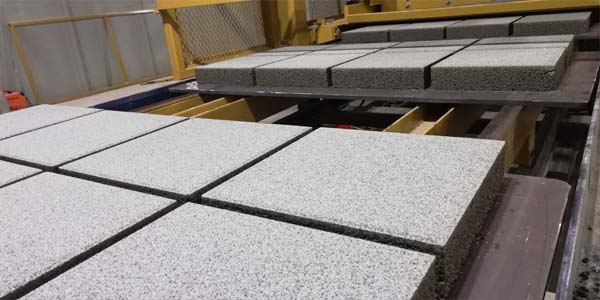

Planetary mixer used to produce concrete bricks in Russia

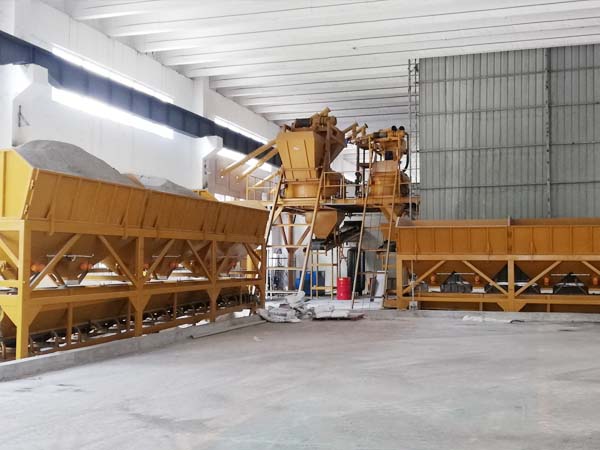

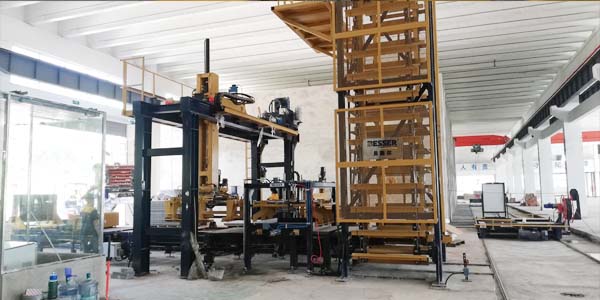

Planetary mixer used to produce concrete bricks

① planetary concrete mixer ② Batching plant ③ Automatic control system ④ Silo ⑤ Screw conveyor

Frequently Asked Questions (FAQ)

Q Why is a planetary concrete mixer ideal for concrete brick production?

A planetary concrete mixer features a complex counter-current mixing motion that ensures 100% uniform blending without dead angles, ensuring high density and structural strength for concrete bricks.

Q How does the temperature and humidity testing system work?

The integrated high-precision sensors accurately monitor the real-time temperature and moisture content of the raw materials during mixing, allowing precise water adjustments for reliable quality control.

Q Is the planetary concrete mixer easy to maintain?

Yes, it is designed with zero-leakage shaft sealing technology, quick-access inspection doors, and highly durable wear parts, significantly simplifying maintenance routines and minimizing downtime.

Q What is the advantage of the anti-fall integrated lifting hopper?

The anti-fall lifting hopper guarantees safe material hoisting while preventing dust leakage, creating an environmentally friendly working environment in concrete batching plants.

Q Can this mixer be integrated with full automatic control systems?

Absolutely. The mixer is built for high intellectualization and seamless integration with batching plants, automatic PLC control systems, silos, and screw conveyors.
