CO-NELEMixing & Granulation
A unique rotor structure creates a highly efficient vortex during the mixing process, ensuring that the clay is evenly coated on the sand surface, shortening mixing time and improving production efficiency. Mixing capacities range from 20 to 400 tons/hour.
Available in a variety of models (such as the CR09, CRV09, CR11, and CR15 series), the machine supports customized production (continuous or batch operation options available) and can flexibly adapt to different production processes and site requirements.
An advanced Sand Multi Controller (SMC) can be integrated to monitor key sand properties (such as compaction rate) of each batch in real time, automatically adjusting water addition to ensure sand properties remain within the ideal range and reduce human error.
The main structure of the equipment is constructed of steel, and key components such as bearings and gears are made of high-quality materials for durability and come with a one-year warranty.
Focusing on energy efficiency, the machine provides efficient mixing capacity while reducing unit energy consumption, helping foundries achieve green production goals.
A uniform sand mixture effectively reduces casting defects such as pinholes, pores, and shrinkage, significantly reducing scrap rates and subsequent finishing costs.
Even with fluctuations in workshop temperature and humidity, the intelligent control system ensures highly consistent sand properties from batch to batch, ensuring stable production.
The user-friendly interface allows operators to easily select preset sand recipes, reducing reliance on operator experience.
Designed with maintenance in mind, it allows for easy access and replacement of wearing parts, minimizing downtime.
Suitable for processing not only traditional clay green sand but also various self-hardening sands such as sodium silicate sand.
This product is widely used in various foundry applications and is a key component in producing high-quality molding sand:

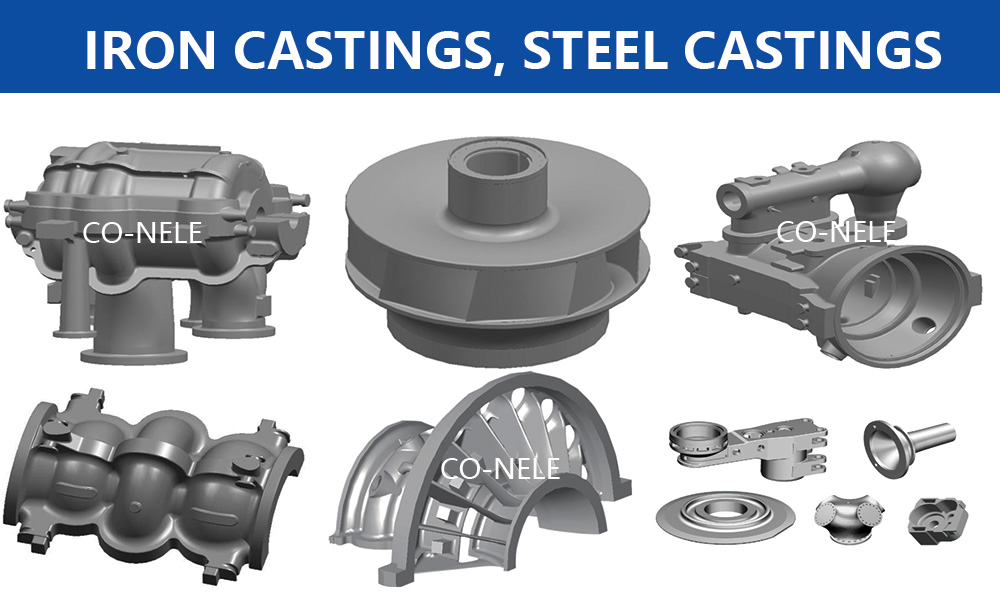

Molding sand preparation for precision castings such as engine blocks, cylinder heads, and brake discs.
Sand preparation for large and medium-sized castings such as large machine tool bases and gearboxes.
Precision castings in the aerospace sector require extremely high molding sand quality.
Suitable for mixing and preparing sodium silicate sand for specialized production lines.
Can be used in conjunction with sand recovery equipment to achieve efficient recycling of sand resources.
| Intensive Mixer | Hourly Capacity (T/H) | Mixing Qty (Kg/batch) | Capacity (m³/h) | Batch (Liter) | Discharging |
|---|---|---|---|---|---|
| CR05 | 0.6 | 30-40 | 0.5 | 25 | Hydraulic center discharge |
| CR08 | 1.2 | 60-80 | 1 | 50 | Hydraulic center discharge |
| CR09 | 2.4 | 120-140 | 2 | 100 | Hydraulic center discharge |
| CRV09 | 3.6 | 180-200 | 3 | 150 | Hydraulic center discharge |
| CR11 | 6 | 300-350 | 5 | 250 | Hydraulic center discharge |
| CR15M | 8.4 | 420-450 | 7 | 350 | Hydraulic center discharge |
| CR15 | 12 | 600-650 | 10 | 500 | Hydraulic center discharge |
| CRV15 | 14.4 | 720-750 | 12 | 600 | Hydraulic center discharge |
| CRV19 | 24 | 330-1000 | 20 | 1000 | Hydraulic center discharge |
Choosing our high-performance mixer means choosing a reliable, efficient, and intelligent sand processing solution for your foundry.
With our professional technical team and extensive experience, we not only provide equipment but also offer comprehensive technical support and services to ensure your equipment is always operating at its best. Our equipment is designed to help our customers improve production efficiency, maintain stable product quality, and reduce overall manufacturing costs.
Contact us today to learn how your foundry can optimize sand preparation with our high-performance mixers and receive a solution and quote tailored to your specific needs.
The optional Smart Sand Multi-Controller (SMC) monitors key sand properties (such as compaction rate) in real time and automatically adjusts water addition, effectively compensating for temperature fluctuations and ensuring consistent mixing quality.
Yes. Our Smart Sand Multi-Controller (SMC) can be retrofitted to many existing sand mixer models, enabling cost-effective upgrades to performance and automation through an Equipment Modernization Program (EMP).
We offer a standard 1-year warranty along with comprehensive support including mechanical test reports and video inspection services to ensure durable, worry-free operation.
Our equipment ranges from compact models like the CR05 up to heavy-duty models like the CRV19. Mixing capacities cover 20 to 400 tons/hour (hourly output ranging from 0.6 T/H to 24 T/H) with continuous or batch operation modes.
They are suitable for processing traditional clay green sand as well as various self-hardening sand systems such as sodium silicate sand across automotive, aerospace, and heavy machinery applications.
